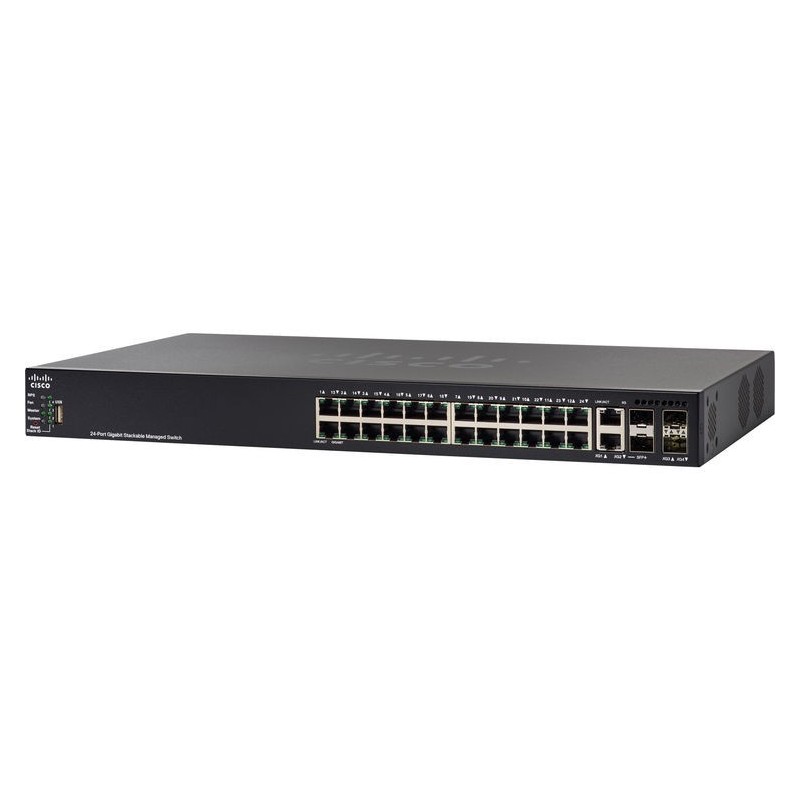

Cisco SG350X-24 Stackable L3-Managed Switch 24 Port Gigabit, 2 Port RJ45 10Gbps, 2 SFP+

Switch - 24 ports - managed - stackable

Rack-mountable 1U

Gigabit Ethernet

24 x 1000Base-T + 2 x combo 10 Gigabit SFP+ + 2 x 10 Gigabit SFP+

Switching capacity (64-byte packet size): 95.23 Mpps
Switching capacity: 128 Gbps

MSTP instances: 16
Active VLANs: 4096
IPv4 routes (static): up to 8000
IPv6 routes (static): up to 6000
ACL entries: up to 2000

64K entries

9000 bytes

4

IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR

SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP

MD5, SSL

RADIUS, TACACS, TACACS+

Flow control, layer 3 switching, DHCP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), reset button, Cable Diagnostics Function, Uni-Directional Link Detection (UDLD), IPv4 support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, 4 fans, 1.5MB packet buffer, Time-controlled ACLs support, Storm Control, IP source guard, ARP inspection, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Secure Copy (SCP), Cisco Discovery Protocol, IGMP querier, VLAN Double Tagging (Q-in-Q), VLAN mirroring, DNS client, Voice VLAN, VLAN management, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, Head-of-line (HOL) blocking, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, RA guard

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az

X ARM: 800 MHz

512 MB

256 MB

System, link/speed, master, stack

24 x 1000Base-T RJ-45
2 x 10Gbit LAN RJ-45/SFP+ uplink
2 x 10GBase-X SFP+ uplink
1 x console RJ-45
1 x management (Gigabit LAN)
1 x USB Type A

Internal power supply

AC 120/230 V (47 - 63 Hz)

1 x serial cable

Included

385,289 hours

UL 60950, FCC Part 15 A, CSA 22.2, USGv6

North America

17.3 in

10.1 in

1.7 in

9.52 lbs

10 - 90% (non-condensing)

-4F

158 F

10 - 90% (non-condensing)
