Product Specification |

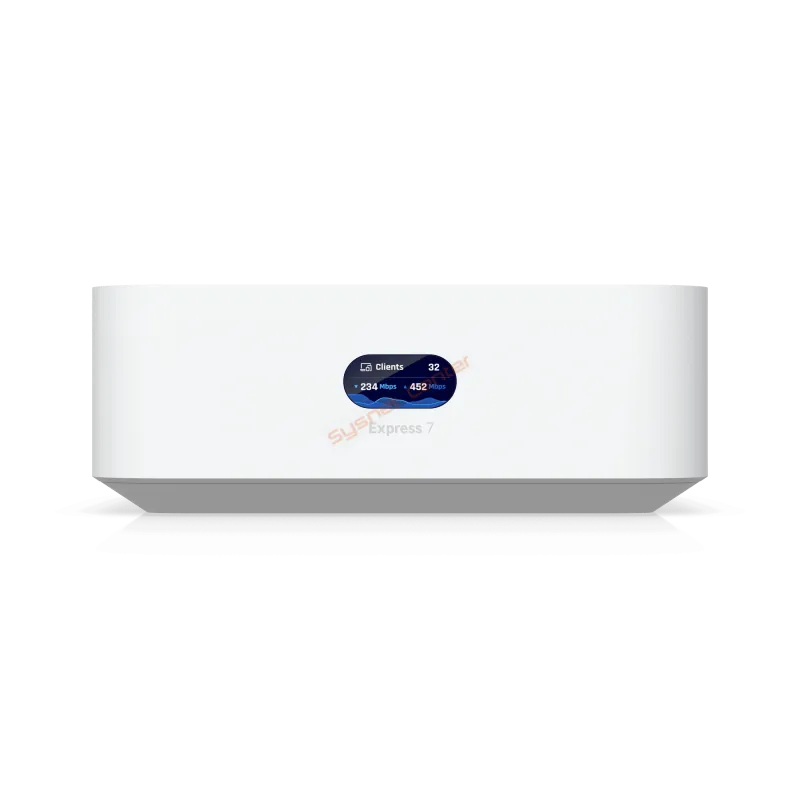

Overview | Ubiquiti UX7 UniFi Express7 Ubiquiti UX UniFi Express UniFi Gateway 1 WAN (10 GbE RJ45), 1 LAN (2.5 GbE) พร้อม Access Point WIFI7, รองรับ SD-WAN, Inter-VLAN, VPN WireGuard, L2TP รองรับ 300+ User Connected |
Mechanical |
Dimensions | 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'') |
Weight | 422 g (14.9 oz) |
Enclosure material | Polycarbonate |
Hardware |
Management interface | Ethernet
Bluetooth |
Networking interface | LAN:
(2.5) GbE RJ45 port
WAN:
(10) GbE RJ45 port |
Power method | USB type C (5V DC/5A) Adapter Included |
Max. power consumption | 22W |
| Max. TX power | 2.4 GHz : 23 dBm
5 GHz : 26 dBm
6 GHz : 24 dBm |
MIMO | 2.4 GHz : 2 x 2 (DL/UL MU-MIMO)
5 GHz : 2 x 2 (DL/UL MU-MIMO)
6 GHz : 2 x 2 (DL/UL MU-MIMO) |
Throughput rate | 2.4 GHz : 688 Mbps
5 GHz : 4.3 Gbps
6 Ghz : 5.7 Gbps |
Antenna gain | 2.4 GHz : 4 dBi
5 GHz : 7 dBi
6 GHz : 6 dBi |
Antennas | (2) Internal 2.4G/5G WiFi dual-band antenna
(1) Internal 2.4G single-band BT antenna |
LCM display | 0.96" status display |
Button | Factory reset |
Ambient operating temperature | -10 to 40° C (14 to 104° F) |
Ambient operating humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC, Anatel: 06656-25-08356 |
Gateway Features |
Performance | Internet quality and outage reporting |
Next-generation security | Application-aware firewall rules
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall |
Advanced networking | License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support |
Software |
WiFi standards | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
BSSID | Gateway mode: 4 per radio
Standard AP: 4 per radio |
VLAN | 802.1Q |
Advanced QoS | Per-user rate limiting |
Guest traffic isolation | Supported |
Supported Data Rates | 802.11a :6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n : 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11ac (WiFi 5) : 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E) : 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11be (WiFi 7) : 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
Application Requirements |
UniFi Network | Version 9.0.108 and later |
รับประกัน | 3 ปี |
