RUT200 Product Specification
|
|
Overview
|

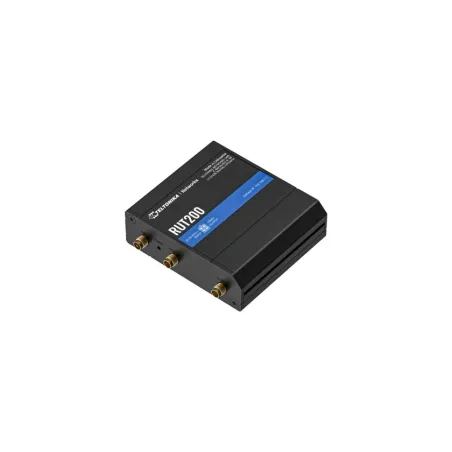

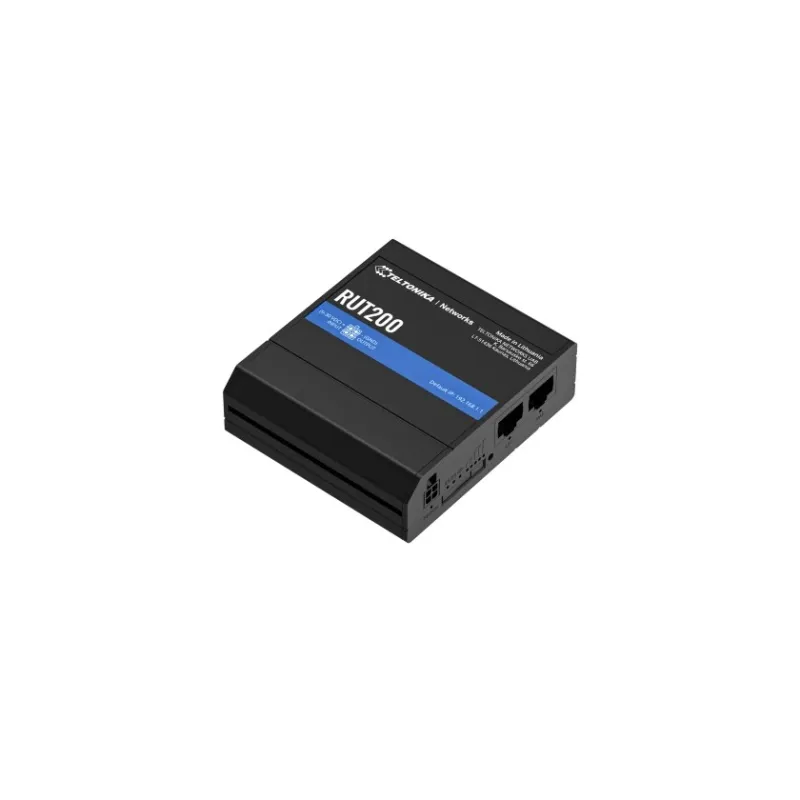

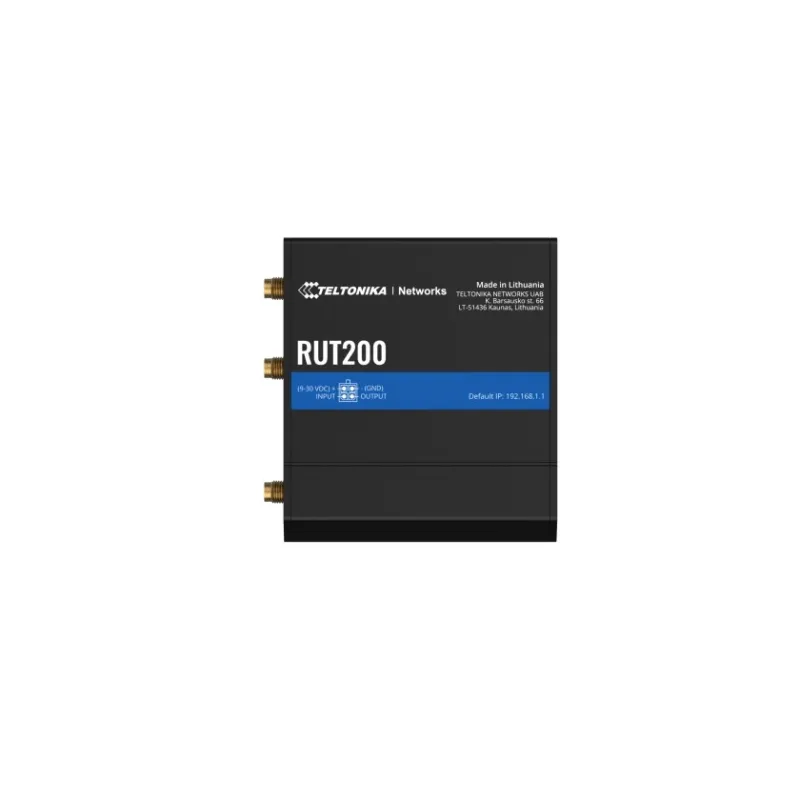

Teltonika RUT200 Industrial 4G/LTE VPN Router รองรับ SIM Card ทุกเครือข่าย, WIFI-n 2.4GHz, กันน้ำกันฝุ่นมาตรฐาน IP30 ทนอุณหภูมิสูงสุด 75C
รองรับ VPN IPSec, PPTP, L2TP, SSTP, Wireguard, ZeroTier, OpenVPN
|
Mobile
|
|
Mobile module
|
4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
|
|
3GPP Release
|
Release 9
|
|
Status
|
IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
|
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
|
|
USSD
|
Supports sending and reading Unstructured Supplementary Service Data messages
|
|
Band management
|
Band lock, Used band status display
|
|
APN
|
Auto APN
|
|
Passthrough
|
Router assigns its mobile WAN IP address to another device on LAN
|
Wireless
|
|
Wireless mode
|
IEEE 802.11b/g/n, Access Point (AP), Station (STA)
|
|
Wi-Fi security
|
WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect
|
|
SSID/ESSID
|
SSID stealth mode and access control based on MAC address
|
|
Wi-Fi users
|
Up to 50 simultaneous connections
|
|
Wireless Connectivity Features
|
Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
|
|
Wireless MAC filter
|
Whitelist, blacklist
|
Network
|
|
Hotspot
|
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
|
|
Routing
|
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
|
|
Network protocols
|
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
|
|
VoIP passthrough support
|
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
|
|
Connection monitoring
|
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
|
|
Firewall
|
Port forward, traffic rules, custom rules
|
|
Firewall status page
|
View all your Firewall statistics, rules, and rule counters
|
|
Ports management
|
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
|
|
DHCP
|
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
|
|
DDNS
|
Supported >25 service providers, others can be configured manually
|
|
Network backup
|
Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
|
|
Load balancing
|
Balance Internet traffic over multiple WAN connections
|
Ethernet
|
|
WAN
|
1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
|
|
LAN
|
1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
|
Security
|
|
Authentication
|
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
|
|
Firewall
|
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
|
|
VLAN
|
Port and tag-based VLAN separation
|
|
Mobile quota control
|
Mobile data limit, customizable period, start time, warning limit, phone number
|
VPN
|
|
OpenVPN
|
Multiple clients and a server can run simultaneously, 27 encryption methods
|
|
OpenVPN Encryption
|
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
|
|
IPsec
|
IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
|
|
GRE
|
GRE tunnel, GRE tunnel over IPsec support
|
|
PPTP, L2TP
|
Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
|
|
Stunnel
|
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
|
|
DMVPN
|
Method of building scalable IPsec VPNs
|
|
SSTP
|
SSTP client instance support
|
|
ZeroTier
|
ZeroTier VPN client support
|
|
WireGuard
|
WireGuard VPN client and server support
|
|
Tinc
|
Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
|
OPC UA
|
|
Supported modes
|
Client, Server
|
|
Supported connection types
|
TCP
|
MODBUS
|
|
Supported modes
|
Server, Client
|
|
Supported connection types
|
TCP
|
|
Custom registers
|
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
|
|
Supported data formats
|
8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
|
DATA TO SERVER
|
|
Protocol
|
HTTP(S), MQTT, Azure MQTT, Kinesis
|
|
Data to server
|
Extract parameters from multiple sources and different protocols, and send them all to a single server
|
|
MQTT Gateway
|
|
Modbus MQTT Gateway
|
Allows sending commands and receiving data from MODBUS Server through MQTT broker
|
DNP3
|
|
Supported modes
|
Station, Outstation
|
|
Supported connection
|
TCP
|
DLMS
|
|
DLMS Support
|
DLMS - standard protocol for utility meter data exchange
|
API
|
|
Teltonika Networks Web API (beta) support
|
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
|
|
Monitoring & Management
|
|
WEB UI
|
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
|
|
FOTA
|
Firmware update from server, automatic notification
|
|
SSH
|
SSH (v1, v2)
|
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
|
|
Call
|
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
|
|
TR-069
|
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
|
|
MQTT
|
MQTT Broker, MQTT publisher
|
|
SNMP
|
SNMP (v1, v2, v3), SNMP Trap
|
|
JSON-RPC
|
Management API over HTTP/HTTPS
|
|
RMS
|
Teltonika Remote Management System (RMS)
|
IoT Platforms
|
|
Cloud of Things
|
Allows monitoring of: Device data, Mobile data, Network info, Availability
|
|
ThingWorx
|
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
|
|
Cumulocity
|
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
|
|
Azure IoT Hub
|
Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
|
System Characteristics
|
|
CPU
|
Mediatek, 580 MHz, MIPS 24KEc
|
|
RAM
|
128 MB, DDR2
|
|
FLASH storage
|
16 MB, SPI Flash
|
Input / Output
|
|
Input
|
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
|
|
Output
|
1 x Digital Output, Open collector output, max output 30 V, 300 mA
|
|
Events
|
Email, RMS, SMS
|
|
I/O juggler
|
Allows to set certain I/O conditions to initiate event
|
Power
|
|
Connector
|
4-pin industrial DC power socket
|
|
Input voltage range
|
9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
|
|
PoE (passive)
|
Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
|
|
Power consumption
|
< 6.5 W Max
|

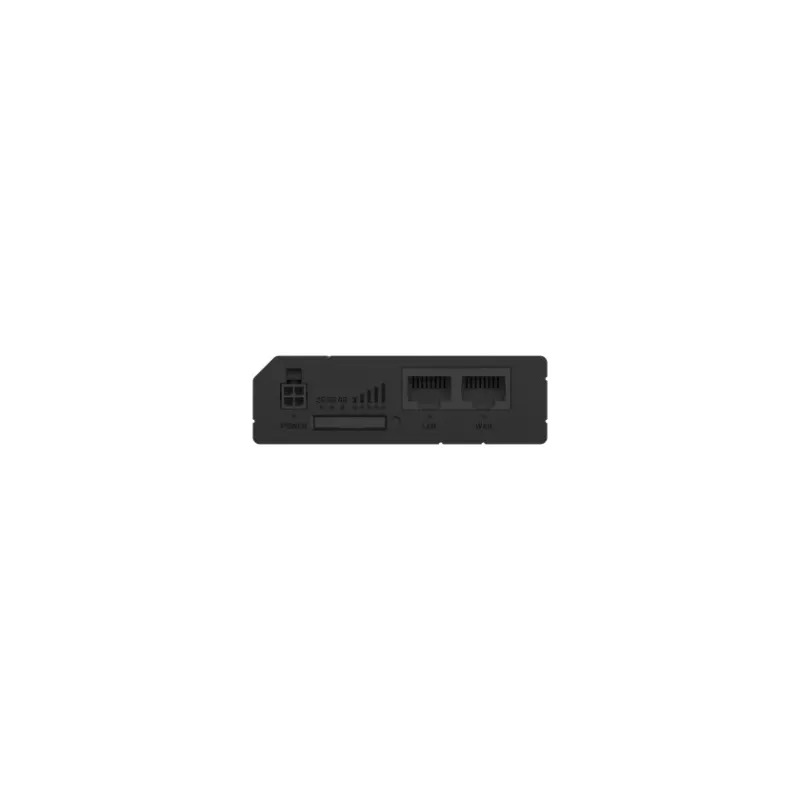

Physical Interfaces
|
|
Ethernet
|
2 x RJ45 ports, 10/100 Mbps
|
|
I/O’s
|
1 x Digital Input, 1 x Digital Output on 4-pin power connector
|
|
Status LEDs
|
3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
|
|
SIM
|
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
|
|
Power
|
1 x 4-pin power connector
|
|

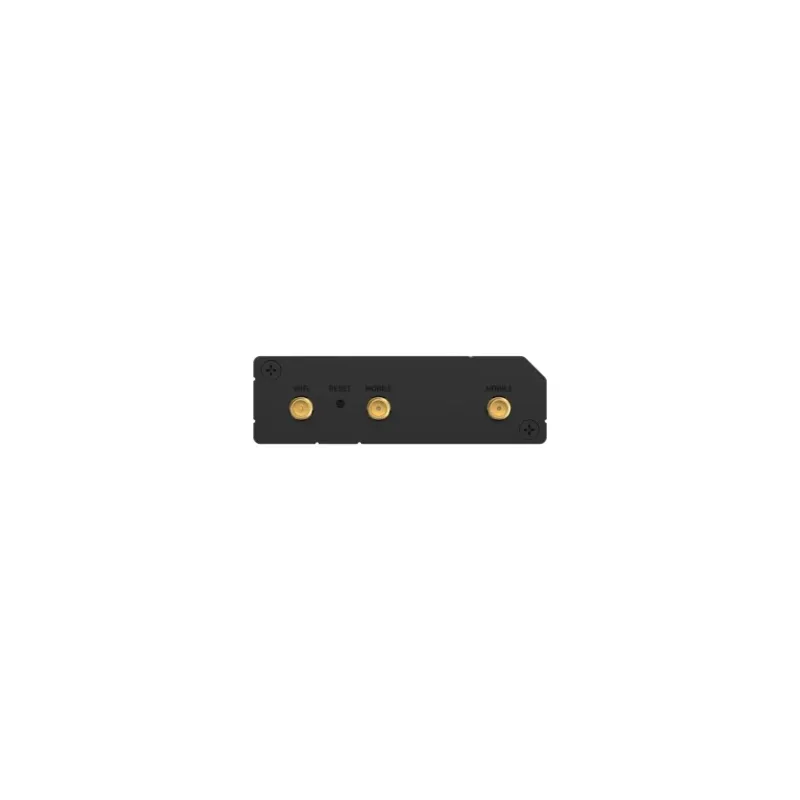

Antennas
|
2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors
|
|
Reset
|
Reboot/User default reset/Factory reset button
|
Physical Specification
|
|
Casing material
|
Aluminium housing, plastic panels
|
|
Dimensions (W x H x D)
|
83 x 25 x 74 mm
|
|
Weight
|
125 g
|
|
Mounting options
|
DIN rail, wall mount, flat surface (all require additional kit)
|
Operating Environment
|
|
Operating temperature
|
-40 °C to 75 °C
|
|
Operating humidity
|
10% to 90% non-condensing
|
|
Ingress Protection Rating
|
IP30
|
Regulatory & Type Approvals
|
|
Regulatory
|
CE, UKCA, RCM, EAC, Anatel, ANRT, Kenya, ICASA, NCC, ETA-WPC, SIRIM, IMDA, NTC, NBTC, MTC NOM, E-mark, CB, RoHS, REACH, R118
|
EMC Emissions & Immunity
|
|
|
Standards
EN 55032:2015 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2:2019
EN 61000-3-3:2013 + A1:2019
EN 301 489-1 V2.2.3
EN 301 489-17 V3.2.4
EN 301 489-52 V1.2.1
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2020
EFT
EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
CS
EN 61000-4-6:2014
DIP
EN 61000-4-11:2020
|
|
RF
|
Standards
EN 300 328 V2.2.2
EN 301 511 V12.5.1
EN 301 908-1 V15.1.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.1.1
|
|
Safety
|
Standards
CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
|
|
รับประกัน
|
1 ปี
|
