Product Specification
|
|
Overview
|

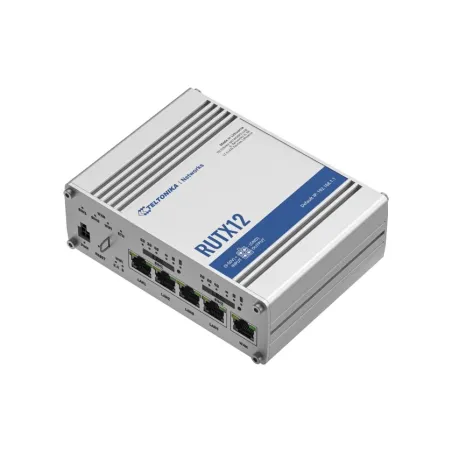

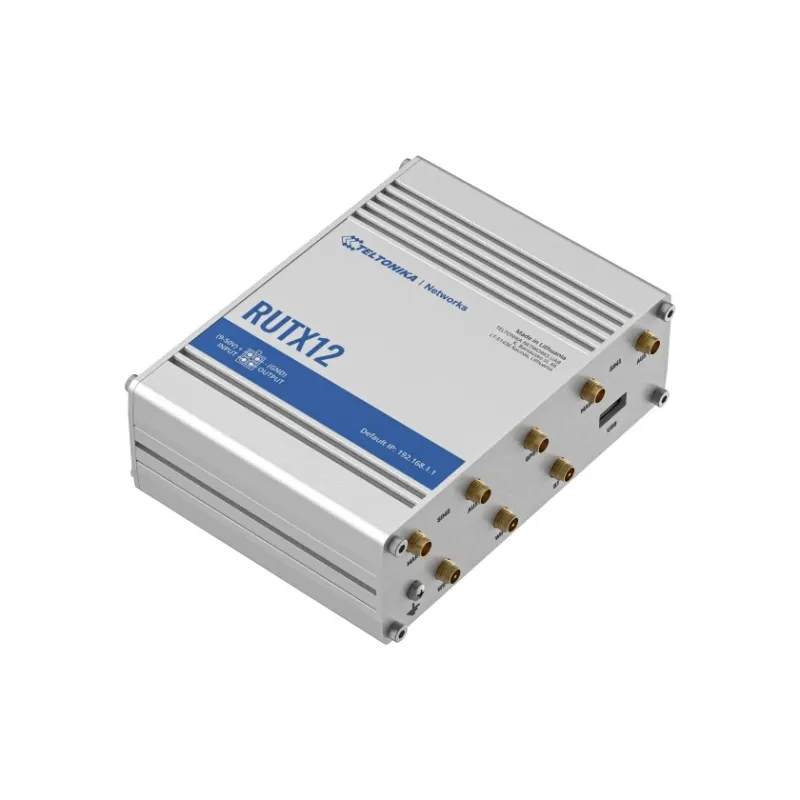

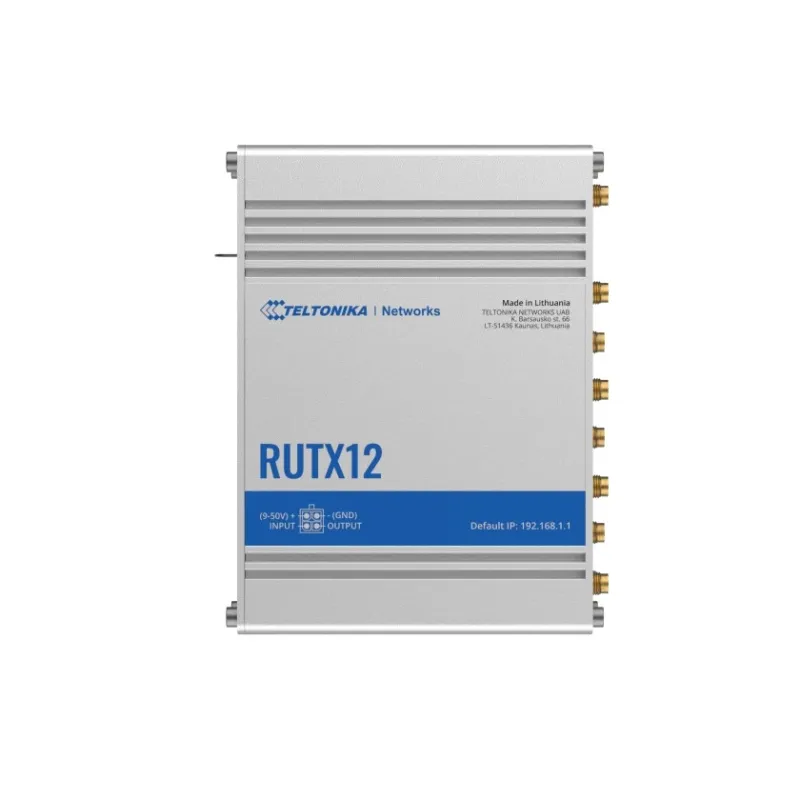

Teltonika RUTX12 Industrial Dual-4G/LTE VPN Router รองรับ 2 SIM Card ทุกเครือข่าย, WIFI-ac Dual-Band Wave2, Bluetooth LE กันน้ำกันฝุ่นมาตรฐาน IP30 ทนอุณหภูมิสูงสุด 75C
รองรับ VPN IPSec, PPTP, L2TP, SSTP, Wireguard, ZeroTier, OpenVPN
|
MOBILE
|
| Mobile module |
2 x 4G (LTE) - Cat 6 up to 300 Mbps, 3G - up to 42 Mbps |
| SIM/mobile module switch |
2 SIM cards, one for each mobile module, auto switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection (planned) |
| Status |
Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, Mobile module in use |
| SMS |
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to TTP, SMS to SMS, SMS auto replay, scheduled SMS (planned), SMPP (planned) |
| Black/White list |
Operator black/white list |
| Multiple PDN (planed) |
Possibility to use different PDNs for multiple network access and services |
| Band management |
Band lock, Used band status display |
| APN |
Auto APN |
| Bridge mode |
Direct connection (bridge) between mobile ISP and device on LAN |
WIRELESS
|
| Wireless mode |
802.11b/g/n/ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) |
| WiFi security |
WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| ESSID |
ESSID stealth mode |
| Wireless Hotspot |
Captive portal (Hotspot), internal/external Radius server, built in customizable landing page |
ETHERNET
|
| WAN |
WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| LAN |
4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX |
BLUETOOTH
|
| Bluetooth 4.0 |
Bluetooth low energy (LE) for short range communication |
NETWORK
|
| Routing |
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) |
| NetSnapper (optional) |
Mobile connection management, data compression VPN client (not available in standard FW) |
| Network protocols |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL) |
| VoIP passthrough support |
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring |
Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall |
Port forwards, traffic rules, custom rules |
| DHCP |
Static and dynamic IP allocation, DHCP Relay, Relayd |
| QoS |
Traffic priority queuing by source/destination (planned), service (planned), protocol or port (planned), WMM, 802.11e |
| DDNS |
Supported >25 service providers, others can be configured manually |
| Network backup |
VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as an automatic Failover |
| Load balancing |
Balance Internet traffic over multiple WAN connections |
| SSHFS (optional) |
Possibility to mount remote file system via SSH protocol (not available in standard FW) |
SECURITY
|
| Authetication |
Pre-shared key, digital certificates, X.509 certificates |
| Firewall |
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| Attack prevention |
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN |
Port based and tag based VLAN separation |
| Mobile quota control |
Custom data limits for both SIM cards |
| WEB filter |
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
| Access control |
Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
VPN
|
| OpenVPN |
Multiple clients and a server can run simultaneously, 12 encryption methods |
| OpenVPN Encryption |
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
| IPsec |
IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) |
| GRE |
GRE tunnel |
| PPTP, L2TP |
Client/Server instances can run simultaneously |
| Stunnel |
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code |
| DMVPN |
Method of building scalable IPsec VPNs |
| SSTP |
SSTP client instance support |
| ZeroTier |
ZeroTier VPN client support |
| WireGuard |
WireGuard VPN client and server support |
MODBUS
|
| Modbus TCP slave |
ID filtering: Respond to one ID in range [1;255] or anyAllow remote access: Allow access through WANCustom registers: Modbus TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend Modbus TCP slave functionality |
| Modbus TCP master |
Supported functions: 01, 02, 03, 04, 05, 06, 15, 16Supported data formats: 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) |
| MQTT gateway |
Gateway Allows sending commands and receiving data from Modbus Master trough MQTT broker |
| Modbus data to server |
Protocols HTTP(S), MQTT, Azure MQTT (planned) |
MONITORING & MANAGEMENT
|
| WEB UI |
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
| FOTA |
Firmware update from server, automatic notification |
| SSH |
SSH (v1, v2) |
| SMS |
SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
| CALL |
Reboot, Status, Mobile data on/off, Output on/off |
| TR-069 |
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT |
MQTT Broker, MQTT publisher |
| SNMP |
SNMP (v1, v2, v3), SNMP trap |
| JSON-RPC |
Management API over HTTP/HTTPS |
| Modbus |
Modbus TCP status/control |
| RMS |
Teltonika Remote Management System (RMS) |
IoT PLATFORMS
|
| Clouds of things |
Allows monitoring of: Device data, Mobile data, Network info, Availability |
| ThingWorx |
Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| Cumulocity |
Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP |
| Azure IoT Hub |
Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server |
SYSTEM CHARACTERISTICS
|
| CPU |
Quad-core ARM Cortex A7, 717 MHz |
| RAM |
256 MB, DDR3 |
| FLASH memory |
256 MB Flash |
FIRMWARE / CONFIGURATION
|
| WEB UI |
Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA |
Update FW/configuration from server |
| RMS |
Update FW/configuration for multiple devices at once |
| Keep settings |
Update FW without losing current configuration |
FIRMWARE CUSTOMIZATION
|
| Operating system |
RutOS (OpenWrt based Linux OS) |
| Supported languages |
Busybox shell, Lua, C, C++ |
| Development tools |
SDK package with build environment provided |
LOCATION TRACKING
|
| GNSS |
GPS, GLONASS, BeiDou, Galileo and QZSS |
| Coordinates |
GNSS coordinates via WebUI, SMS, TAVL, RMS |
| NMEA |
NMEA 0183 |
| Server software |
Supported server software: TAVL, RMS |
| Mobile Network Geolocation |
Get approximate device location on RMS based on mobile cell tower position (without using GPS) |
| Geofencing |
Configurable multiple geofence zones |
USB
|
| Data rate |
USB 2.0 |
| Applications |
Samba share, USB to Serial |
| External devices |
Possibility to connect external HDD, flash drive, additional modem, printer |
| Storage formats |
FAT, FAT32, NTFS |
INPUT/OUTPUT
|
| Input |
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
| Output |
1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Events |
SMS, Email, RMS |
| I/O juggler |
Allows to set certain I/O conditions to initiate event |
POWER
|
| Connector |
4 pin industrial DC power socket |
| Input voltage range |
9 - 50 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) |
Passive PoE. Possibility to power up through LAN1 port, not compatible with IEEE802.3af and 802.3at standards |
| Power consumption |
Idle: <4 W, Max: <22 W |

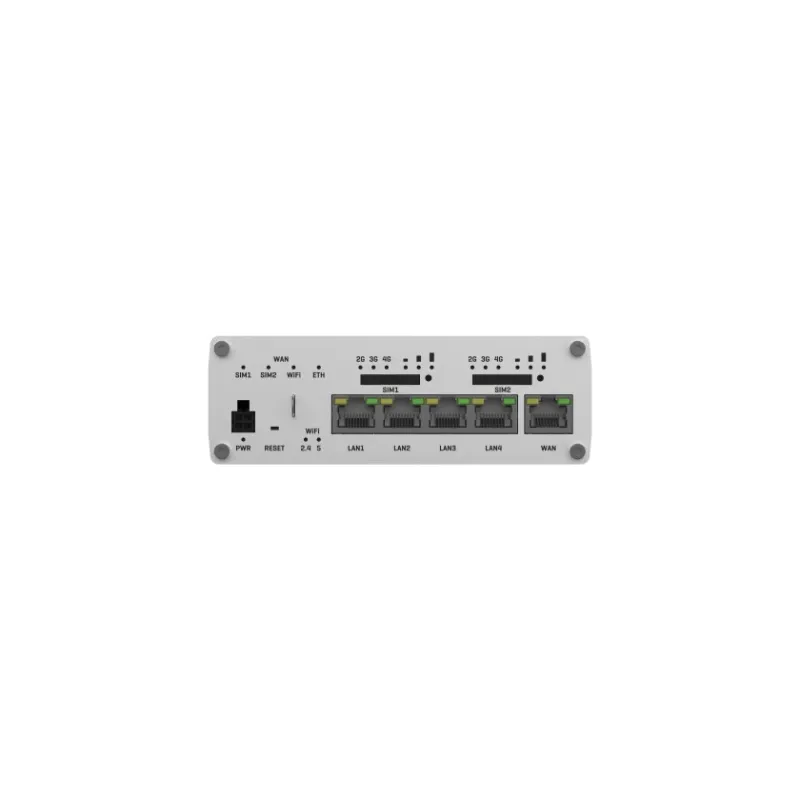

PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
|
| Ethernet |
5 x RJ45 ports, 10/100/1000 Mbps |
| I/Os |
1 Digital Input, 1 Digital Output on 4 pin power connector |
| Status LEDs |
6 x connection status LEDs, 6 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2.4G and 5G WiFi LEDs |
| SIM |
2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |
| Power |
4 pin DC connector |

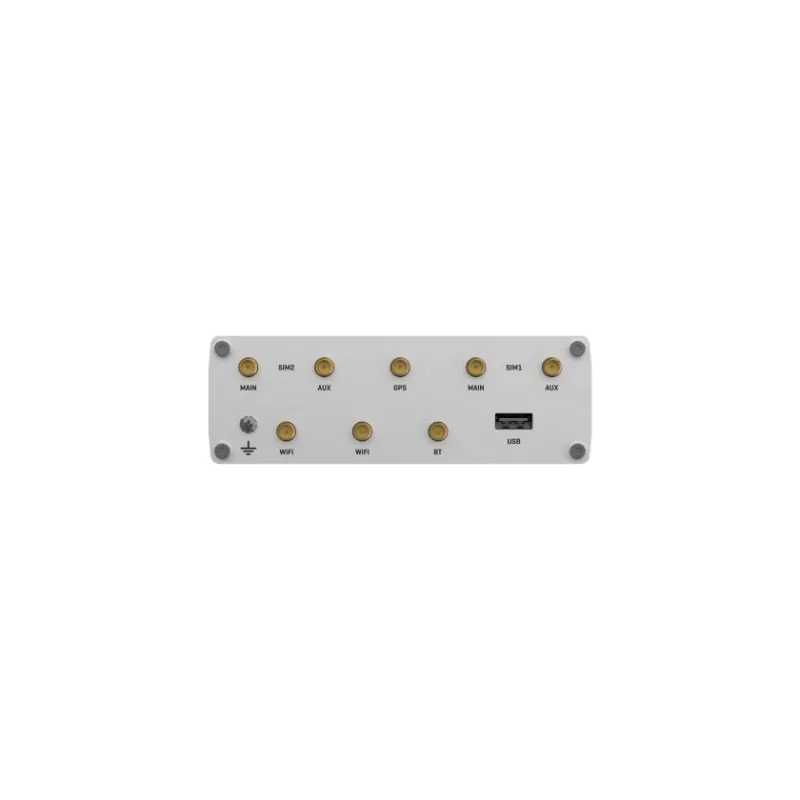

| Antennas |
4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS |
| USB |
USB A port for external devices |
| Reset |
Reboot/User default reset/Factory reset button |
PHYSICAL SPECIFICATION
|
| Casing material |
Full aluminium housing |
| Dimensions (W x H x D) |
132 x 44 x 95 mm |
| Weight |
540 g |
| Mounting options |
DIN rail (can be mounted on two sides), flat surface placement |
OPERATING ENVIRONMENT
|
| Operating temperature |
-40 C to 75 C |
| Operating humidity |
10 % to 90 % non-condensing |
|
รับประกัน
|
1 ปี
|
