Omada by TP-LINK ES228GMP 24-Port Gigabit Easy Managed Switch 24-Port PoE+ Uplink 2 Port SFPและ 2 Port RJ45 , จ่ายไฟมาตรฐาน 802.3at สูงสุด 384W, รองรับ VLAN 802.1q, Port Mirroring, Loop Prevention, IGMP Snooping, PoE Auto Recoverry ,PoE Extend Mode ไกลสุด 250M
Support / ติดตั้งด้วยทีมงานที่มีความชำนาญ Certificate
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
สเปกสินค้า (Quick Spec)
TP-Link ES228GMP Product Specification | |
Overview | Omada by TP-LINK ES228GMP 24-Port Gigabit Easy Managed Switch 16-Port PoE+ Uplink 2 Port SFPและ 2 Port RJ45 , จ่ายไฟมาตรฐาน 802.3at สูงสุด 384W, รองรับ VLAN 802.1q, Port Mirroring, Loop Prevention, IGMP Snooping, PoE Auto Recoverry ,PoE Extend Mode ไกลสุด 250M |
HARDWARE FEATURES | |

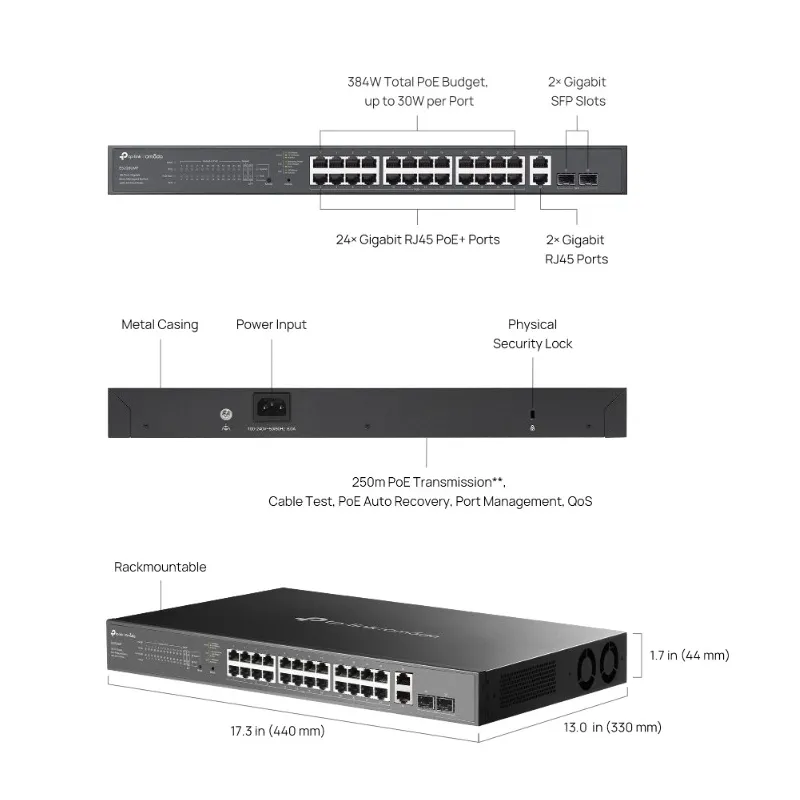

| Interface | • 24× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE) • 2× 10/100/1000 Mbps RJ45 Port • 2× Gigabit SFP/RJ45 Combo Port • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | 2 |
| Installation | • Rackmountable |
| Physical Security Lock | √ |
| Power Supply | 100-240V AC, 50/60Hz |
| PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 8 ports • PoE Budget: 250W available for all PoE+ ports, 30W max per port • PoE Auto Recovery‡ • Up to 250m PoE transmission distance** |
| Dimensions ( W x D x H ) | 17.3 × 13.0 × 1.7 in.(440 × 330 × 44 mm) |
| Surge Protection | ±6kV |
PERFORMANCE | |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.67 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
SOFTWARE FEATURES | |
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control△ |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
MANAGEMENT | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
OTHERS | |
| Certification | FCC, CE, RoHS |

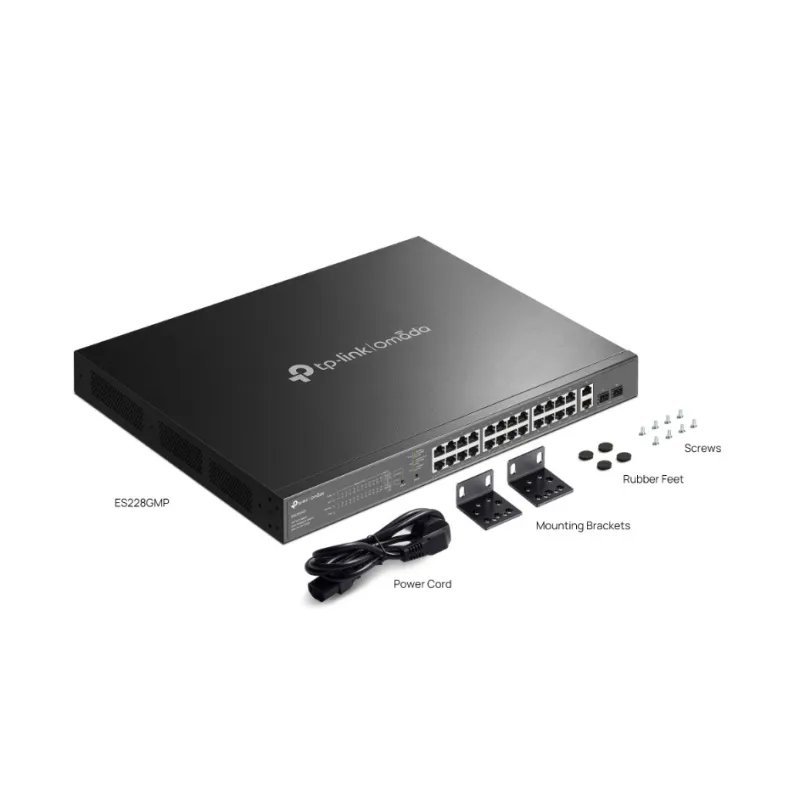

| Package Contents | • ES228GMP • Power Cord • Mounting Brackets • Rubber Feet • Screws • Installation Guide |
| Environment | • Operating Temperature: -5℃~50℃ (23℉~122℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
รับประกัน | Limited lifetime |
