Product Specification
|
|
Overview
|

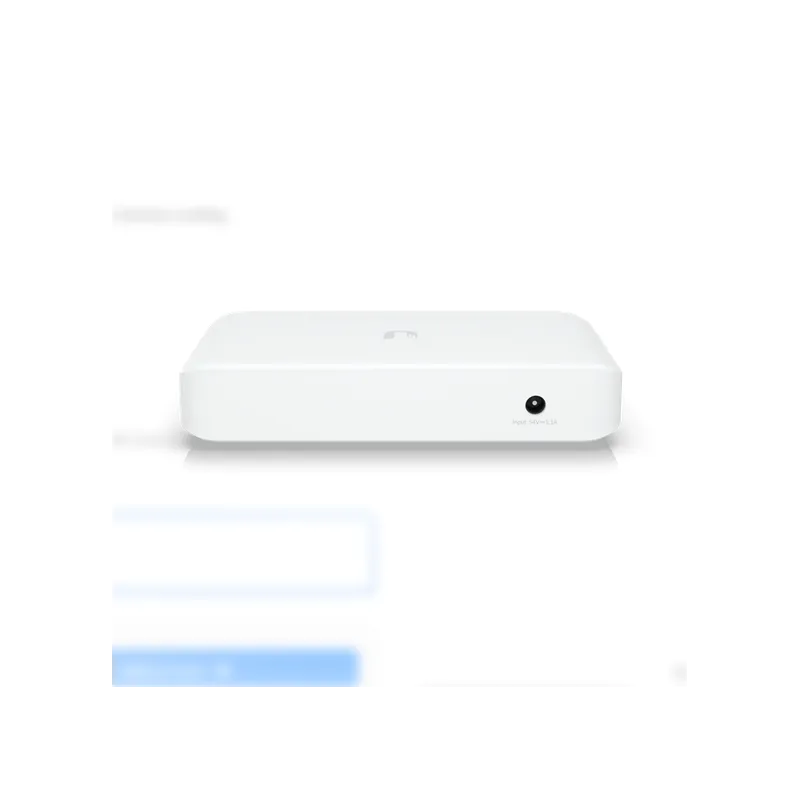

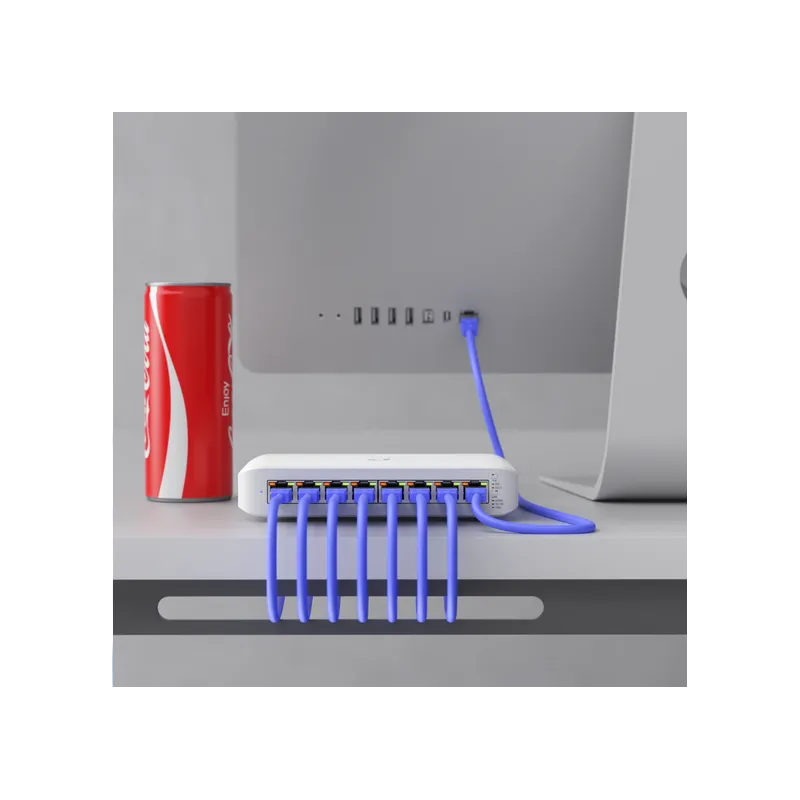

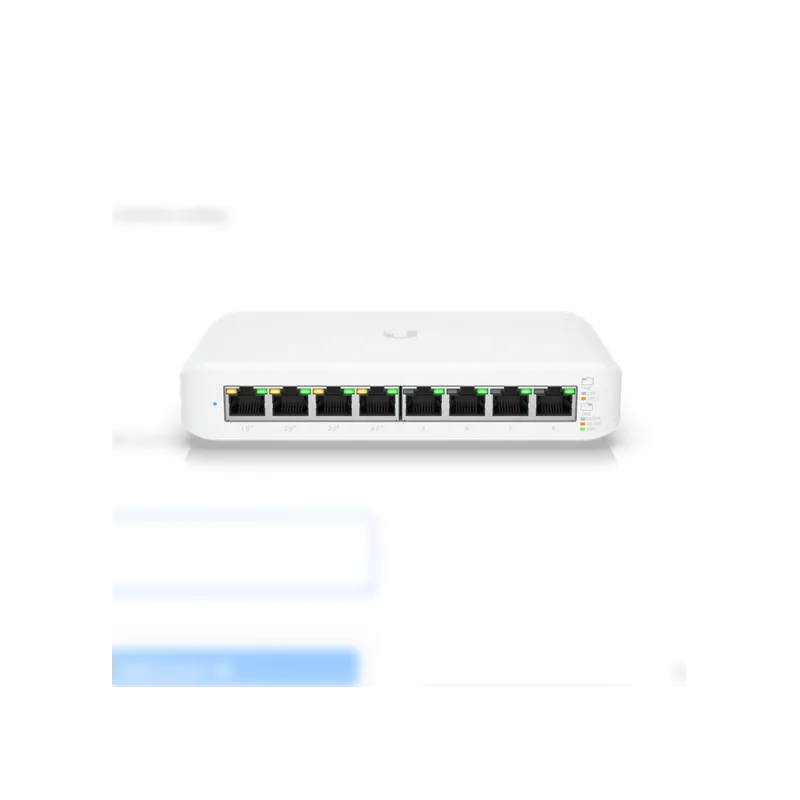

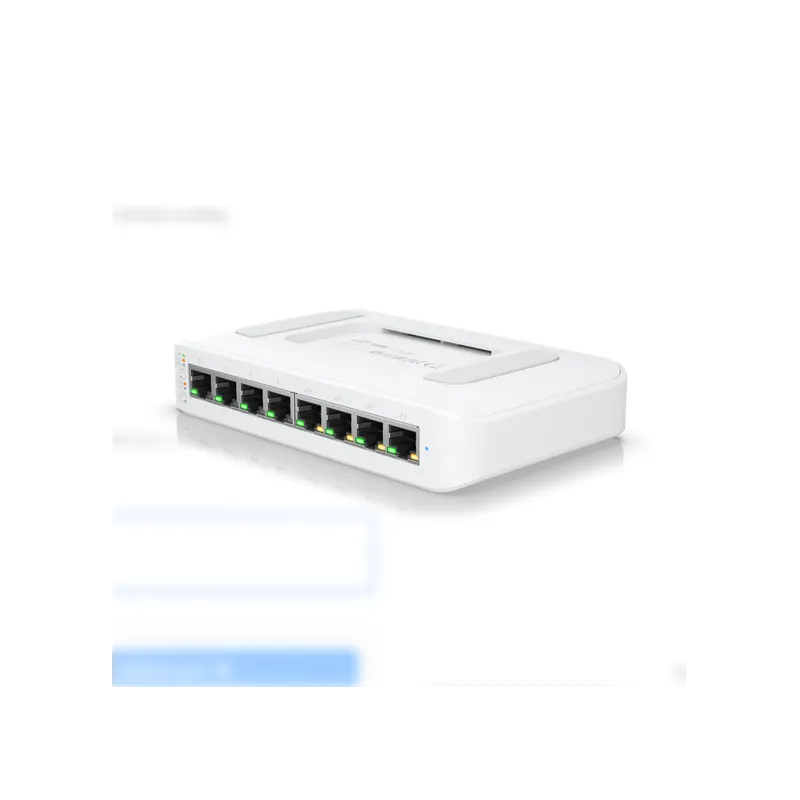

Ubiquiti Switch Lite 8 PoE (USW-Lite-8-PoE) L2-Managed Gigabit POE Switch 8 Port จ่ายไฟ POE มาตรฐาน 802.3af/at สูงสุด 52W
รองรับ VLAN Support, Port Aggregation (LAG),ฆpanning Tree Protocol (STP)
ควบคุมการทำงานผ่าน Unifi Software Controller
|
|
Advanced Features
|
VLAN Support
Port Aggregation (LAG)
Spanning Tree Protocol (STP)
Jumbo Frames
Quality of Service (QoS)
Advanced Logging
|
|
Dimensions
|
99.6 x 163.7 x 31.7 mm (3.92 x 6.44 x 1.25")
|
|
Weight
|
295 g (10.4 oz)
|
|
Total non-blocking line rate
|
8 Gbps
|
|
Max. power consumption
|
15W
|
|
Power method
|
Universal AC input: 100—240V AC
|
|
Power supply
|
Internal 60W AC/DC power supply
|
|
Networking interface
|
(8) 10/100/1000 MbE RJ45
|
|
PoE interface
|
(4) PoE/PoE+ (Pins 1, 2+; 3, 6-)
|
|
Management interface
|
Ethernet In-Band
|
|
Max PoE+ wattage per port by PSE
|
30W
|
|
PoE budget
|
52W
|
|
Modes
|
SMB Layer 2 PoE GbE switch
|
|
Operating temperature
|
-15 to 40° C (5 to 104° F)
|
|
Operating humidity
|
10 to 90% noncondensing
|
|
Certifications
|
CE, FCC, IC
|
|
System
|
(1) Power: blue/white
Flashing white: bootup in progress
Flashing blue: firmware upgrading
Steady white: factory defaults, awaiting adoption
Steady blue: device is adopted
|
|
Ethernet
|
Green: 1G
Amber: 10/100 Mbps
|
|
PoE
|
Amber: PoE/PoE+
|
|
ประกัน
|
1 ปี
|
|
|
