Product Specification
|
|
Overview
|

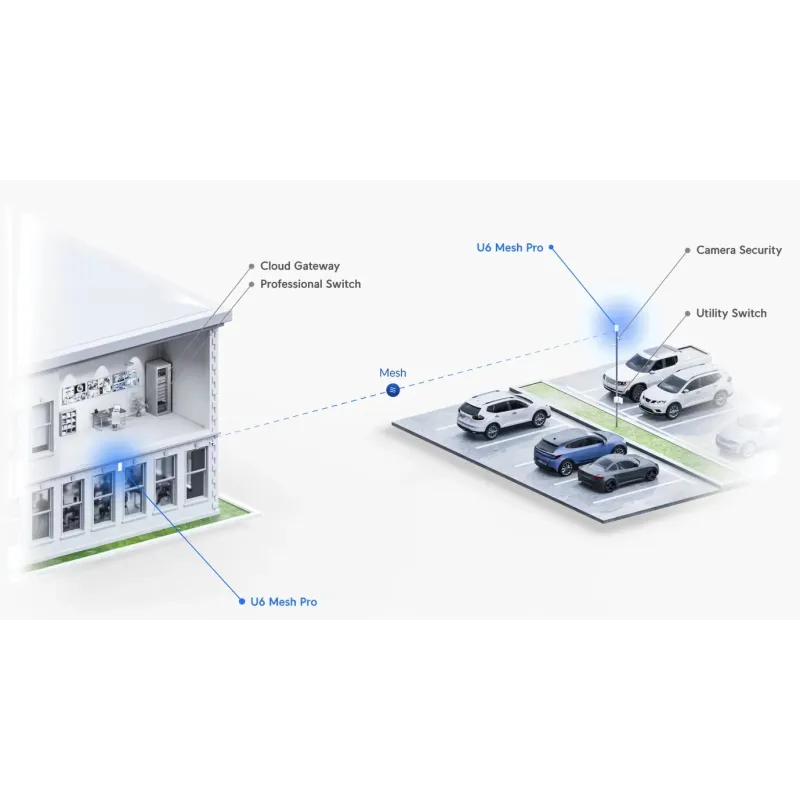

Ubiquiti U6-Mesh-Pro Access Point WiFi 6 Mesh 802.11ax 2x2 MU-MIMO รองรับ Channel-Width 160MHz bandwidth, ความเร็วสูงสุด 3Gbps พร้อม POE ในชุด
- High-efficiency 4x4 WiFi 6 (802.11ax)
- 5 GHz (2x2 MU-MIMO and OFDMA) band with a 2.4 Gbps throughput rate
- 2.4 GHz (2x2 MU-MIMO and OFDMA) band with a 573.5 throughput rate
- Operates at full 2x2 MIMO with 160 MHz bandwidth
- Powered with 48v PoE (PoE adapter included)
|
|

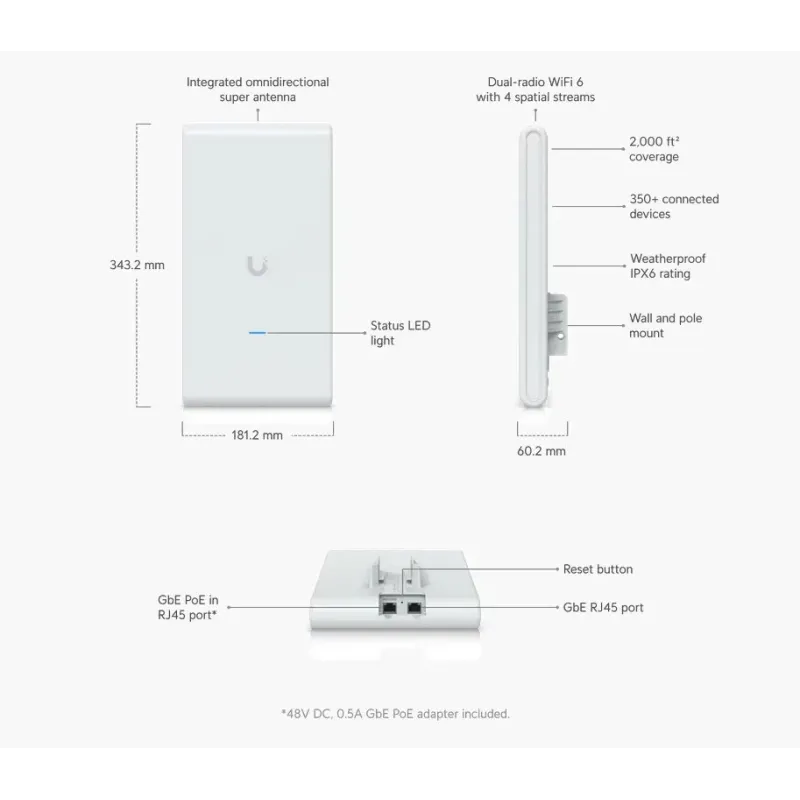

Dimensions
|
343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
|
|
Weight
|
819 g (1.8 lb)
|
|
Enclosure material
|
UV-stabilized polycarbonate
|
|
Mounting material
|
Aluminum alloy, steel
|
|
Weatherproofing
|
IPX6
|
|
Management interfaces
|
Ethernet
WiFi
|
|
Networking interface
|

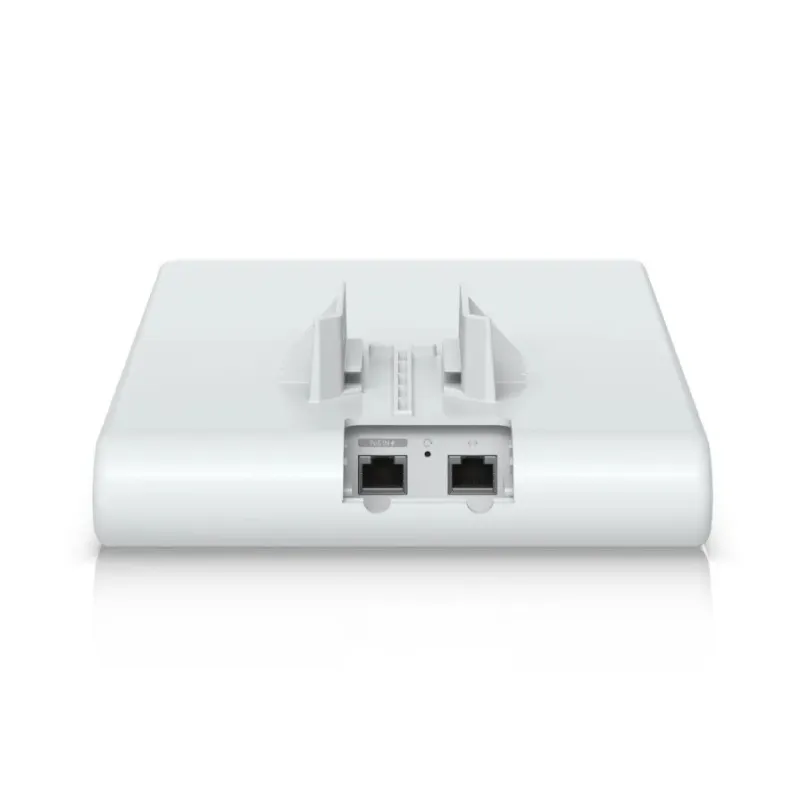

(2) GbE RJ45 port
|
|
Button
|
Factory reset
|
|
LEDs
|
White/blue
*Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes.
|
|
Power method
|
PoE
|
|
Power supply
|
UniFi PoE switch
48V, 0.5A PoE adapter (included)
|
|
Supported voltage range
|
42.5—57V DC
|
|
Max. power consumption
|
9W
|
|
Max. TX power
|
2.4GHz: 22 dBm
5GHz: 27 dBm
|
|
MIMO
|
|
|
Throughput rate
|
2.4GHz: 573.5 Mbps
5GHz: 2.4 Gbps
|
|
Antenna gain
|
2.4GHz: 8 dBi
5GHz: 8 dBi
|
|

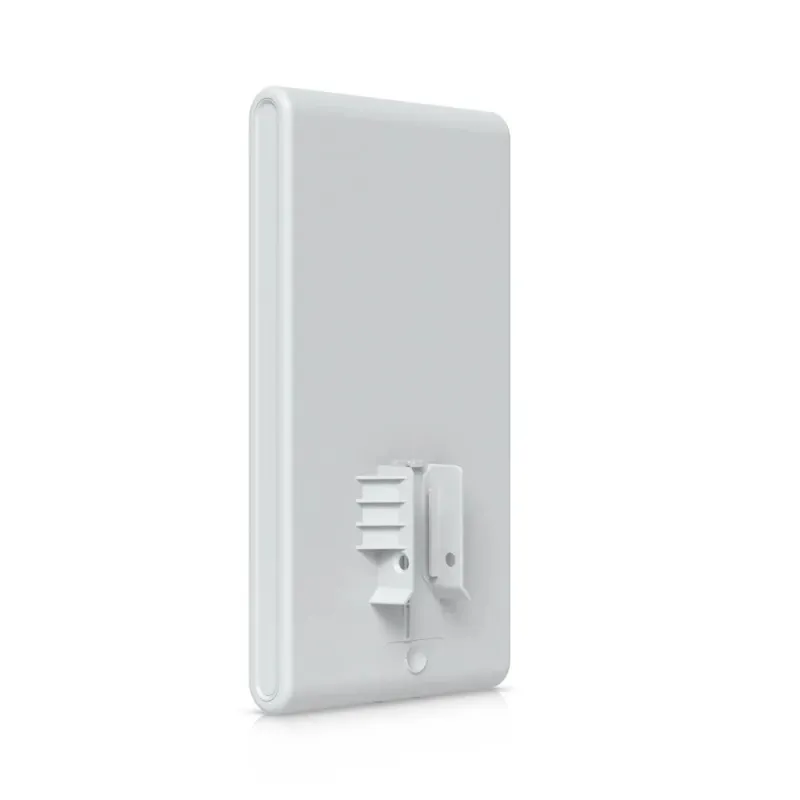

Mounting
|
Wall, pole (Included)
|
|
Operating temperature
|
-30 to 60° C (-22 to 140° F)
|
|
Operating humidity
|
5 - 95% noncondensing
|
|
Certifications
|
CE, FCC, IC
|
|
WiFi standards
|
802.11a/b/g/n/ac/ax
|
|
Wireless security
|
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
|
|
BSSID
|
8 per radio
|
|
VLAN
|
802.1Q
|
|
Advanced QoS
|
Per-user rate limiting
|
|
Guest traffic isolation
|
Supported
|
|
Concurrent clients
|
350+
|
|
Zero wait DFS
|
Yes*
*Supported with upcoming firmware versions
|
|
802.11a
|
6, 9, 12, 18, 24, 36, 48, 54 Mbps
|
|
802.11b
|
1, 2, 5.5, 11 Mbps
|
|
802.11g
|
6, 9, 12, 18, 24, 36, 48, 54 Mbps
|
|
802.11n (WiFi 4)
|
6.5 Mbps to 300 Mbps (MCS0 - MCS31, HT 20/40)
|
|
802.11ac (WiFi 5)
|
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
|
|
802.11ax (WiFi 6)
|
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
|
|
รับประกัน
|
2 ปี
|
