Ubiquiti Unifi U7-Lite Datasheet

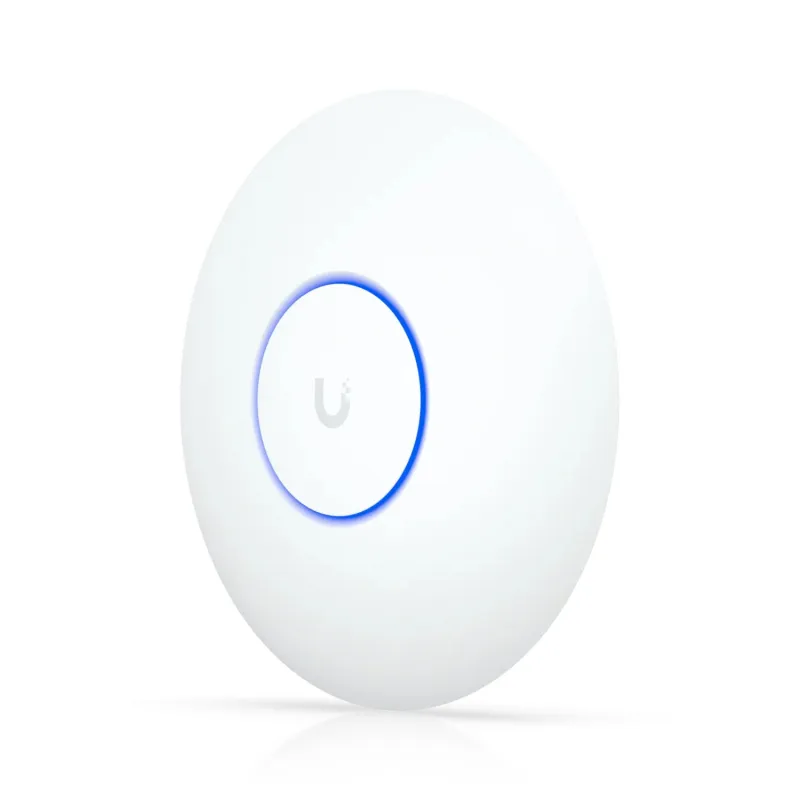

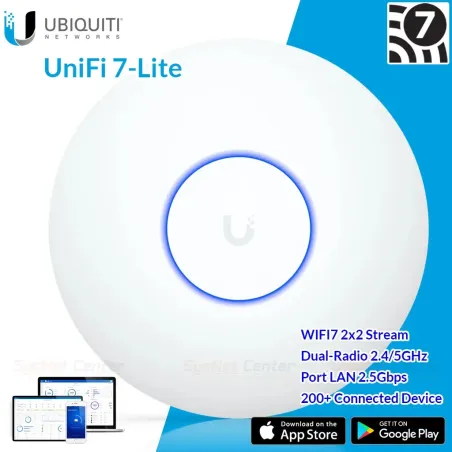

U7-Lite Ubiquiti Unifi Access Point
Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.
Unifi U7 Lite Product Specification |
Overview | Ubiquiti UniFi 7 Lite Access Point U7-Lite Wi-Fi 7 (BE) Access Point Dual-Vand 2.4/5Gbps 4.98Gbps, Port LAN 2.5Gbps รองรับ 200 Client Powered with 802.3af PoE (PoE injector not included) |
Overview |
Dimensions | Ø171.5 x 33 mm (Ø6.8 x 1.3") |
WiFi Standard | WIFi 7 |
Spatial Streams | 4 |
Coverage Area | 115 m² (1,250 ft²) |
Max. Client Count | 200+ |
Uplink | 2.5 GbE |

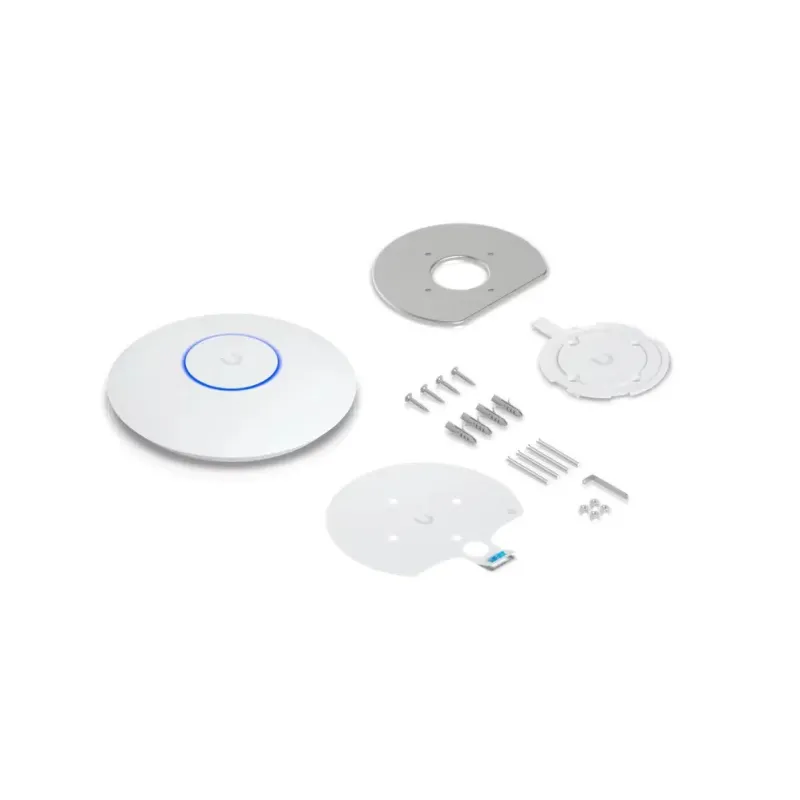

Mounting | Ceiling, Wall (Lite Mount Included) |
Power Method | PoE |
Performance |
MIMO | 5 GHz 2 x 2 (DL/UL MU-MIMO)
2.4 GHz 2 x 2 (DL/UL MU-MIMO) |
Max. Data Rate | 5 GHz 4.3 Gbps (BW240)
2.4 GHz 688 Mbps (BW40) |
Antenna Gain | 2.4 GHz 4 dBi
5 GHz 5 dBi |
Max. TX Power | 2.4 GHz 23 dBm
5 GHz 24 dBm |
Max. BSSIDs | 8 per Radio |
Supported Data Rates | 802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Features |
Wireless Meshing | Support |
Band Steering | Support |
802.11v BSS Transition Management | Support |
802.11r Fast Roaming | Support |
802.11k Radio Resource Management (RRM) | Support |
Advanced Radio Management | Support |
Passpoint (Hotspot 2.0) | Support |
Captive Hotspot Portal | Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation |
Private Pre-Shared Key (PPSK) | Support |
WiFi Speed Limiting | Support |
Client Device Isolation | Support |
WiFi Schedules | Support |
RADIUS over TLS (RadSec) | Support |
Dynamic RADIUS-assigned VLAN | Support |
Wireless Meshing | Support |
Band Steering | Support |
802.11v BSS Transition Management | Support |
802.11r Fast Roaming | Support |
802.11k Radio Resource Management (RRM) | Support |
Advanced Radio Management | Support |
Passpoint (Hotspot 2.0) | Support |
Hardware |
Max. Power Consumption | 13W |
Supported Voltage Range | 42.5 - 57V DC |
Networking Interface | (1) 2.5 GbE RJ45 port |
Weight | 313 g (11 oz) |
Management | Ethernet |
Enclosure Material | UV-stabilized polycarbonate |
Mount Material | UV-stabilized polycarbonate, galvanized steel (SGCC) |
LEDs | System White/Blue |
Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
Certifications | CE, FCC, IC |
NDAA Compliant | Yes |
Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
Ambient Operating Humidity | 5 to 95% noncondensing |
Software |
Application Requirements | UniFi Network Version 9.0.114 and later
UniFi OS iOS™ version 10.20.2 and later Android™ version 10.21.7 and later |
รับประกัน | 2 ปี |
รายละเอียดสินค้า
50 รายการ
ข้อมูลสินค้า
- ลักษณะงาน Wireless
- กระจายสัญญาณ WIFI
- ความเร็ว มาตรฐาน WIFI
- WIFI-7 (be) 11Gbps+
- ย่านความถี่
- Dual-Band 2.4/5GHz
- รองรับ Controller
- Hardware Controller
- Mode Repeate/WDS/MESH
- MESH
- รองรับ POE
- Yes
