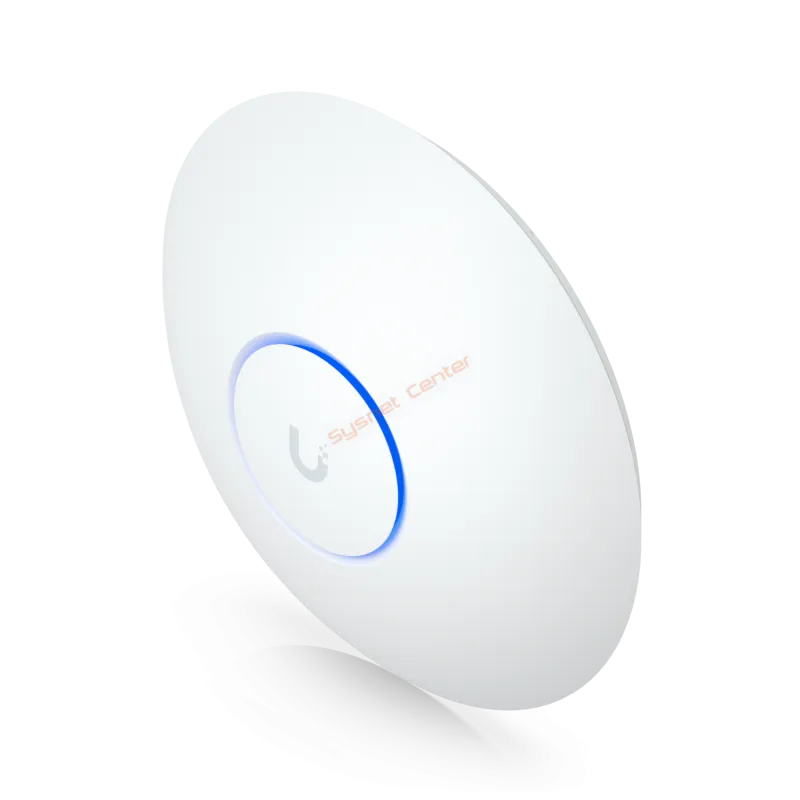

U7-LR Ubiquiti UniFi 7 Long-Range Point Wi-Fi 7 Access Point Dual-Band 2.4/5Gbps 4.98Gbps, Port LAN 2.5G, 5 Spatial Streams, 300+ Client รองรับการจัดการผ่าน Controller
Support / ติดตั้งด้วยทีมงานที่มีความชำนาญ Certificate
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
สเปกสินค้า (Quick Spec)
เอกสารอ้างอิงเฉพาะ
Ubiquiti Unifi U7-LR Datasheet
Compact, ceiling-mounted WiFi 7 AP with 5 spatial streams and 2.5 GbE uplink.
U7-LR Ubiquiti Unifi U7 Long Range Product Specification | |
Overview | Ubiquiti UniFi 7 LR Access Point U7-LR Wi-Fi 7 (BE) Access Point Dual-Band 2.4/5Gbps 4.98Gbps, Port LAN 2.5Gbps รองรับ 300 Client Powered with 802.3af PoE (PoE injector not included) |
Overview | |

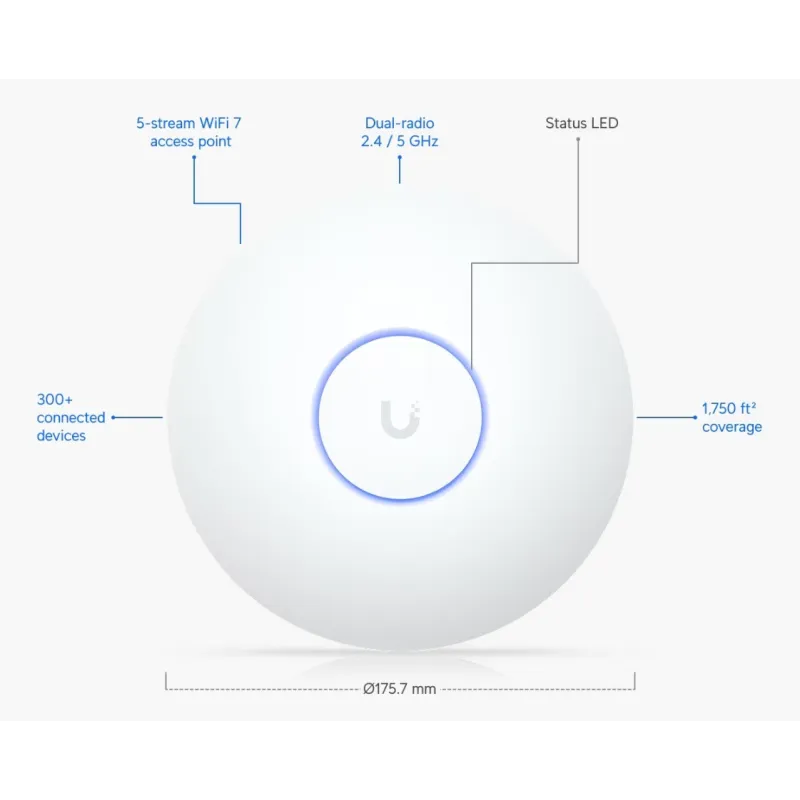

Dimensions | Ø175.7 x 43 mm (Ø6.9 x 1.7" |
WiFi Standard | WIFi 7 |
Spatial Streams | 5 |
Coverage Area | 160 m² (1,750 ft²) |
Max. Client Count | 300+ |
Uplink | 2.5 GbE |

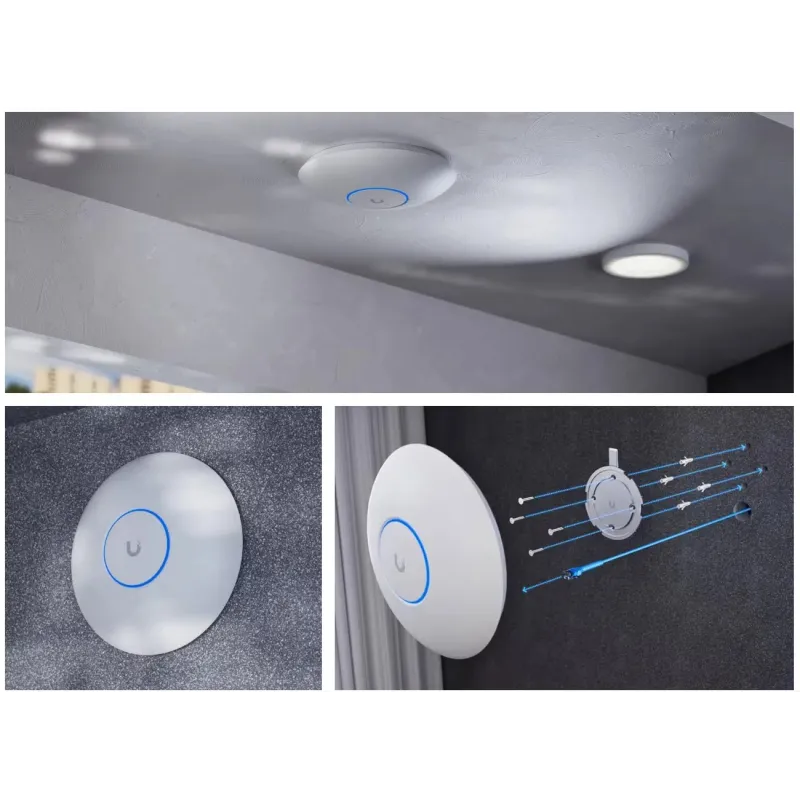

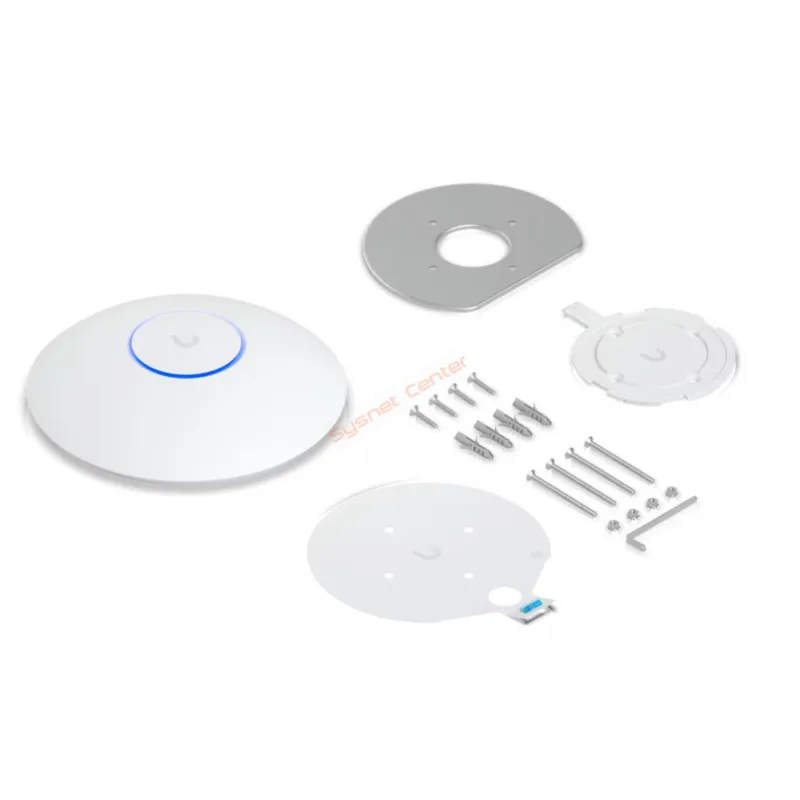

Mounting | Ceiling, Wall (Lite Mount Included) |
Power Method | PoE |
Performance | |
MIMO | 5 GHz 3 x 3 (DL/UL MU-MIMO)2.4 GHz 2 x 2 (DL/UL MU-MIMO) |
Max. Data Rate | 5 GHz 4.3 Gbps (BW160)2.4 GHz 688 Mbps (BW40) |
Antenna Gain | 2.4 GHz 4 dBi5 GHz 6 dBi |
Max. TX Power | 2.4 GHz 26 dBm5 GHz 27 dBm |
Max. BSSIDs | 8 per Radio |
Supported Data Rates | 802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS15, HT 20/40) |
Features | |
Wireless Meshing | Support |
Band Steering | Support |
802.11v BSS Transition Management | Support |
802.11r Fast Roaming | Support |
802.11k Radio Resource Management (RRM) | Support |
Advanced Radio Management | Support |
Passpoint (Hotspot 2.0) | Support |
Captive Hotspot Portal | Custom Branding Landing PageVoucher AuthenticationPayment-Based AuthenticationExternal Portal Server SupportPassword AuthenticationGuest Network Isolation |
Private Pre-Shared Key (PPSK) | Support |
WiFi Speed Limiting | Support |
Client Device Isolation | Support |
WiFi Schedules | Support |
RADIUS over TLS (RadSec) | Support |
Dynamic RADIUS-assigned VLAN | Support |
Wireless Meshing | Support |
Band Steering | Support |
802.11v BSS Transition Management | Support |
802.11r Fast Roaming | Support |
802.11k Radio Resource Management (RRM) | Support |
Advanced Radio Management | Support |
Passpoint (Hotspot 2.0) | Support |
Hardware | |
Max. Power Consumption | 14W |
Supported Voltage Range | 42.5 - 57V DC |
Networking Interface | (1) 2.5 GbE RJ45 port |
Weight | 448 g (15.8 oz) |
Management | Ethernet |
Enclosure Material | UV-stabilized polycarbonate |
Mount Material | UV-stabilized polycarbonate, galvanized steel (SGCC) |
LEDs | System White/Blue |
Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz) |
Certifications | CE, FCC, IC |
NDAA Compliant | Yes |
Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
Ambient Operating Humidity | 5 to 95% noncondensing |
Software | |
Application Requirements | UniFi Network Version 9.1.120 and laterUniFi OS iOS™ version 10.20.2 and later Android™ version 10.21.7 and later |
รับประกัน | 2 ปี |
