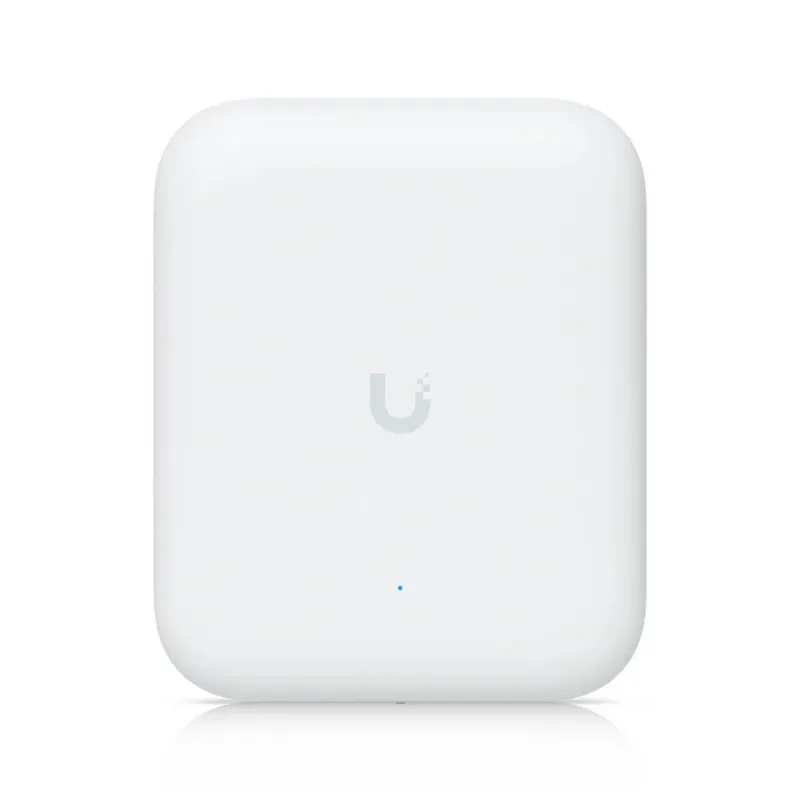

Ubiquiti Unifi U7-Outdoor
All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.
- WiFi 7
- 4 spatial streams
- 465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
- Software-adjustable antenna beamwidth for balanced coverage with the included omni antennas
- 200+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
- Versatile wall and pole mounting
- Weatherproof (outdoor exposed)
Product Specification |
Overview | Ubiquiti Unifi U7-Outdoor Access Point WIFI-7 802.11bt 2x2 MU-MIMO รองรับ Channel-Width 240MHz, Port Lan 2.5Gbps , ความเร็วสูงสุด 4.98Gbps |
Mechanical | |

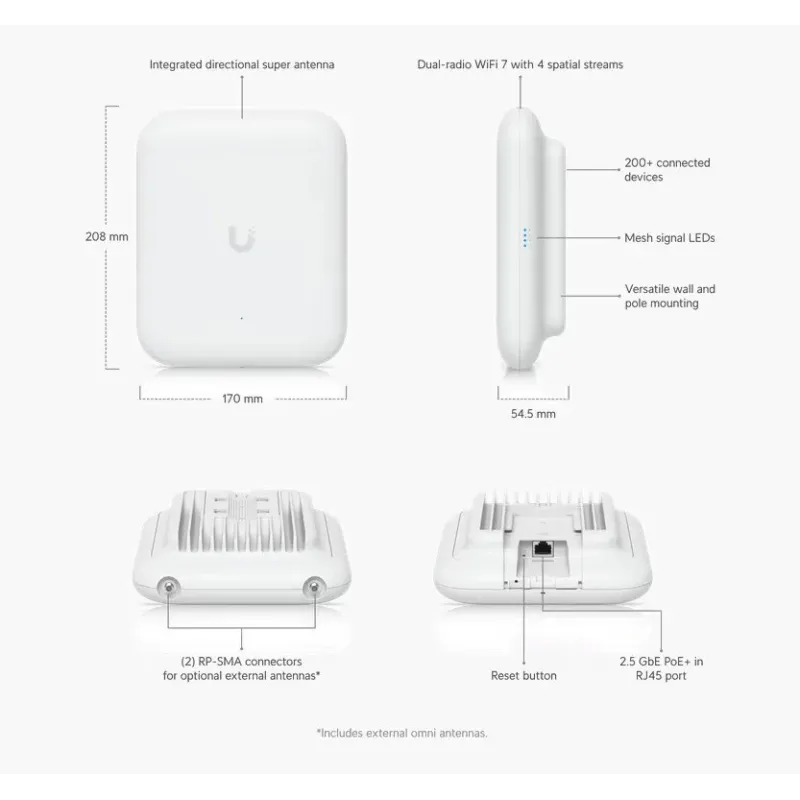

| Dimensions | 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1") |
| Weight | 1.2 kg (2.6 lb) |
| Enclosure material | UV-stabilized polycarbonate, aluminum alloy |
| Mount material | Polycarbonate, SGCC steel |
| Pole mount diameter | 25-60 mm (1-2.36") on pipe outer diameter |
| Wind survivability | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Weatherproofing | IPX6 |
Hardware | |

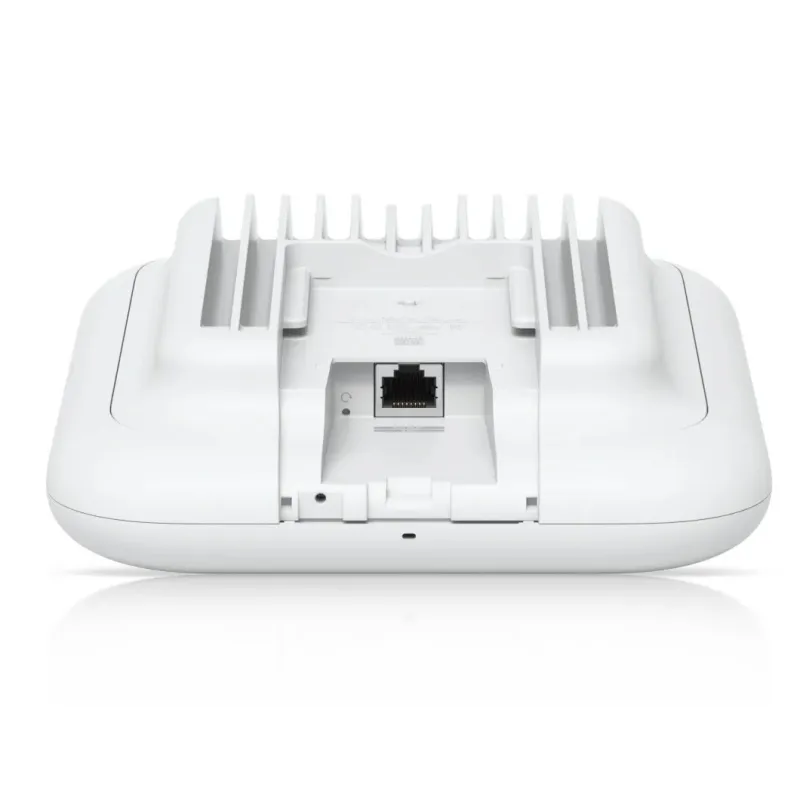

| Networking interface | (1) 1/2.5 GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE+ |
| Power supply | UniFi PoE Switch |
| Supported voltage range | 42.5-57V DC |
| Max. power consumption | 19W |
| Max. TX power2.4 GHz5 GHz6 GHz | 23 dBm26 dBm- |
| MIMO2.4 GHz5 GHz6 GHz | 2 x 2 (DL/UL MU-MIMO)2 x 2 (DL/UL MU-MIMO)- |
| Throughput rate2.4 GHz5 GHz6 GHz | 688 Mbps (BW40)4.3 Gbps (BW240)- |
| Antenna gain2.4 GHz5 GHz6 GHz | Directional internal: 8 dBi/External omni: 3 dBiDirectional internal: 12.5 dBi/External omni: 4 dBi- |
| Antenna beamwidth2.4 GHz5 GHz6 GHz | 90°45°- |

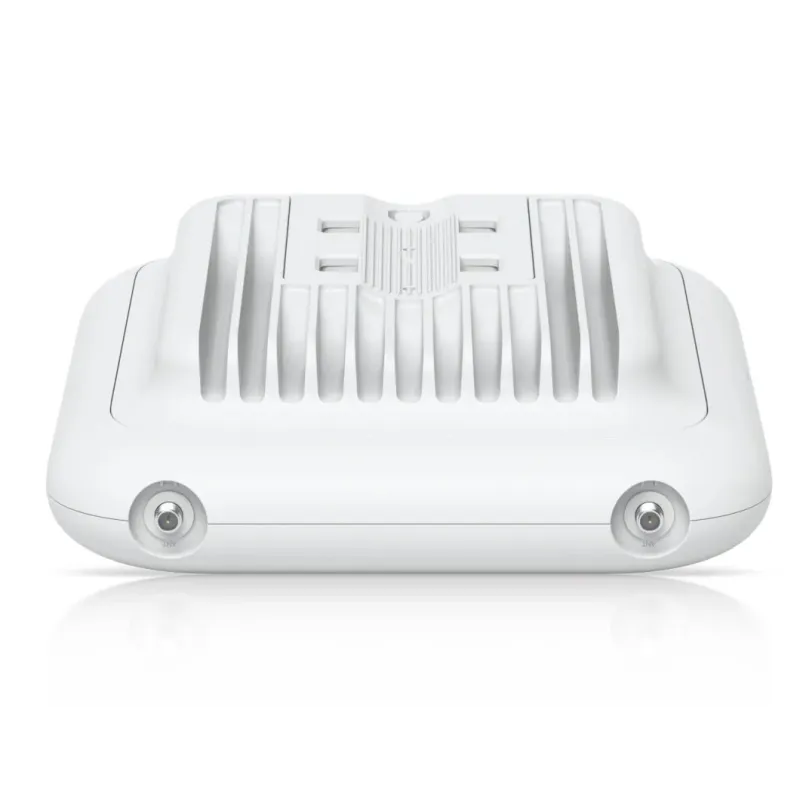

| Antennas | (1) Directional internal antenna(2) External omni antennas(2) RP-SMA connectors for external antenna |
| LEDs | (1) Power: white/blue(4) Mesh signal: blue |
| Button | Factory reset |

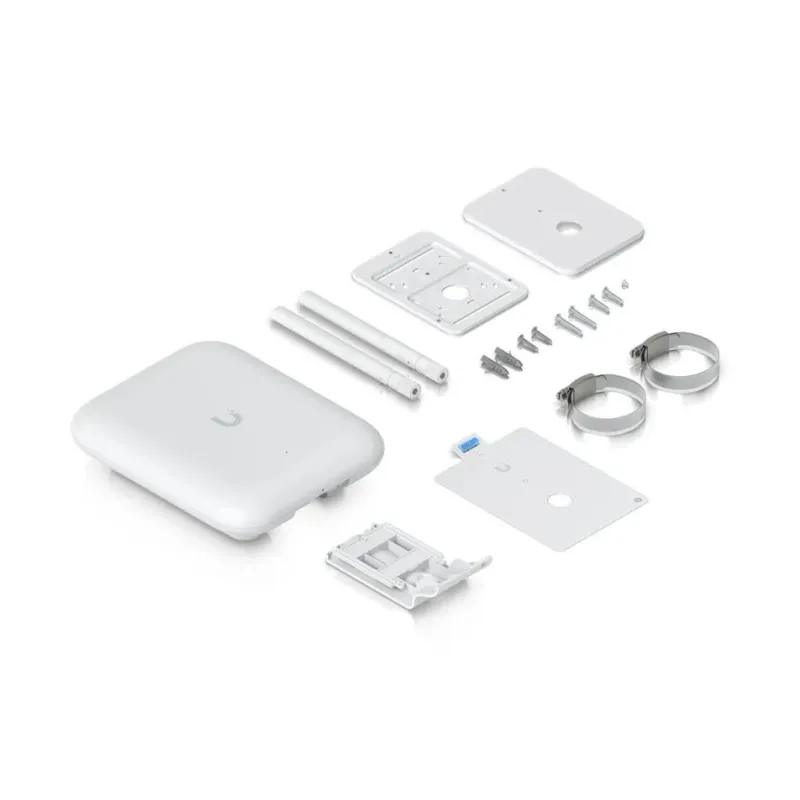

| Mounting | Wall, ceiling, pole (Included) |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 200+ |
Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
รับประกัน | 2 ปี |
รายละเอียดสินค้า
10 รายการ
ข้อมูลสินค้า
- ลักษณะงาน Wireless
- กระจายสัญญาณ WIFI
- ความเร็ว มาตรฐาน WIFI
- WIFI-7 (be) 11Gbps+
- ย่านความถี่
- Tri-Band 2.4/5/6GHz
- รองรับ Controller
- Hardware Controller
- รองรับติดตั้งนอกอาคาร
- Yes
- Mode Repeate/WDS/MESH
- MESH
- รองรับ POE
- Yes
