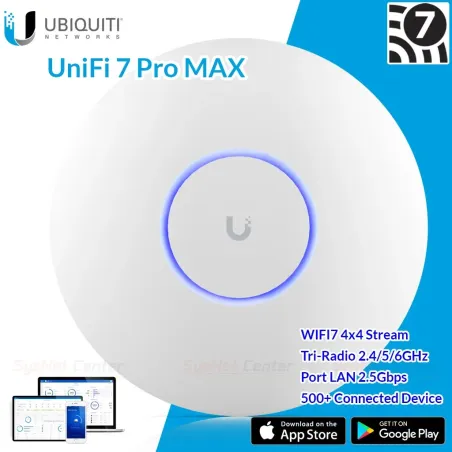

U7-Pro-Max Ubiquiti UniFi 7 Pro MAX Access Point Wi-Fi 7 Tri-Band 4x4, 9.3Gbps

U7-Pro-MAX Product Specification

Overview

Ubiquiti UniFi 7 Pro MAX (U7-Pro-Max)  High-density UniFi 7 Access Point Wi-Fi 7 (BE) Access Point Tri-Band 2.4/5/6Gbps 4x4 MU-MIMO 14.98Gbps, Port LAN 2.5Gbps รองรับ 500+ Client

2.4 GHz band 2x2 688Mbps

5 GHz band 4x4 8.6Gbps

6 GHz band 2x2 5.7Gbps

Powered with 802.3at PoE+ (PoE injector not included)

Mechanical

Dimensions

Ø206 x 46 mm (Ø8.1 x 1.8")

Weight

680 g (1.5 lb)

Enclosure material

Polycarbonate, aluminum

Mount material

Stainless steel (SUS304), galvanized steel (SGCC)

Hardware

Networking interface

(1) 1/2.5 GbE RJ45 port

Management interface

Ethernet

Power method

PoE+

Power supply

UniFi PoE switch

Supported voltage range

44—57V DC

Max. power consumption

25W

Max. TX power

Throughput rate

2.4GHz: 688 Mbps (BW40)
5GHz: 8.6 Gbps (BW240)
6GHz: 5.7 Gbps (BW320)

MIMO

2.4GHz: 2 x 2 (DL/UL MU-MIMO)
5GHz: 4 x 4 (DL/UL MU-MIMO)
6GHz: 2 x 2 (DL/UL MU-MIMO)

Antenna gain

6GHz: 4 dBi
5GHz: 6 dBi
2.4GHz: 5.9 dBi

LEDs

White/blue

Button

Factory reset

Mounting

Wall, ceiling (Included)

Ambient operating temperature

-30 to 50° C (-22 to 122° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Software

WiFi standards

802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Wireless security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest traffic isolation

Supported

Concurrent clients

500+

Supported Data Rates

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6/6E)

7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11be (WiFi 7)

5 GHz
7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

6 GHz
7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements

UniFi Network

UniFi OS Version 8.2.93 and later

รับประกัน

2 ปี
