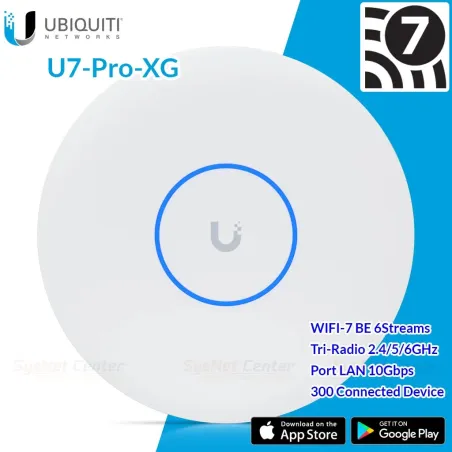

UniFi U7 Pro XG - Tech Specs
U7 Pro XG Ubiquiti Features:
- WiFi 7 with 6 GHz support
- 6 spatial streams
- Real-time spectral analysis for enhanced channel selection*
- 140 m² (1,500 ft²)
- 300+ connected devices
- Powered using PoE+
- 10 GbE uplink
U7-Pro-XG Product Specification |
Overview | U7-Pro-XG UniFi U7 Pro XG Ceiling-mounted 6-stream WiFi 7 Access Point Tri-Band 2.4/5/6Gbp, Port LAN 10Gbps ความเร็วสูงสุด 10.8Gbps รองรับ 300+ Client 2.4 GHz band 2x2 688Mbps
5 GHz band 2x2 4.3Gbps
6 GHz band 2x2 5.8Gbps Powered with 802.3at PoE+ (PoE injector not included) |
Overview |
Dimensions | Ø206 x 32.5 mm (Ø8.1 x 1.3") |
WiFi Standard | WiFi 7 |
Spatial Streams | 6 |
Coverage Area | 140 m² (1,500 ft²) |
Max. Client Count | 300+ |
Uplink | 10 GbE |
Mounting | Ceiling, Wall (Lite Mount Included) |
Power Method | PoE+ |
Performance |
MIMO | 6 GHz : 2 x 2 (DL/UL MU-MIMO)
5 GHz : 2 x 2 (DL/UL MU-MIMO)
2.4 GHz : 2 x 2 (DL/UL MU-MIMO) |
Max. Data Rate | 6 GHz 5.8 Gbps (BW320)
5 GHz 4.3 Gbps (BW240)
2.4 GHz 688 Mbps (BW40) |
Antenna Gain | 6 GHz 6 dBi
5 GHz 5 dBi
2.4 GHz 4 dBi |
Max. TX Power | 6 GHz 24 dBm
5 GHz 26 dBm
2.4 GHz 23 dBm |
Max. BSSIDs | 8 per Radio |
Supported Data Rates | 802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Feature |
Wireless Meshing | Support |
Band Steering | Support |
802.11v BSS Transition Management | Support |
802.11r Fast Roaming | Support |
802.11k Radio Resource Management (RRM) | Support |
Advanced Radio Management | Support |
Passpoint (Hotspot 2.0) | Support |
Captive Hotspot Portal | Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation |
Private Pre-Shared Key (PPSK) | Support |
WiFi Speed Limiting | Support |
Client Device Isolation | Support |
WiFi Schedules | Support |
RADIUS over TLS (RadSec) | Support |
Dynamic RADIUS-assigned VLAN | Support |
Hardware |
Max. Power Consumption | 22W |
Supported Voltage Range | 42.5—57V DC |
Networking Interface | (1) 10 GbE RJ45 port |
Weight | 750 g (1.7 lb) |
Management | Ethernet |
Enclosure MaterialMount Material | UV-stabilized polycarbonate, aluminum alloy |
LEDs System | White/Blue |
Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
Certifications | CE, FCC, IC |
Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
Ambient Operating Humidity | 5 to 95% noncondensing |
Software |
Application Requirements | UniFi Network Version 9.0.114 and later (U7 Pro XG - White)
Version 9.1.120 and later (U7 Pro XG - Black) |
รับประกัน | 2 ปี |
รายละเอียดสินค้า
10 รายการ
ข้อมูลสินค้า
- ลักษณะงาน Wireless
- กระจายสัญญาณ WIFI
- ความเร็ว มาตรฐาน WIFI
- WIFI-7 (be) 11Gbps+
- ย่านความถี่
- Tri-Band 2.4/5/6GHz
- รองรับ Controller
- Hardware Controller
- Mode Repeate/WDS/MESH
- MESH
