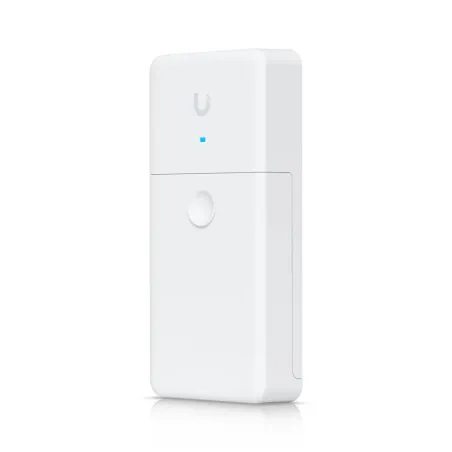

UACC-LRE Ubiquiti Unifi Long-Range Ethernet Repeater เพิ่มระยะการเดินสาย Lan พร้อมไฟ POE ระยะทางสูงสุด 1Km (จุดละ 100m)
Support / ติดตั้งด้วยทีมงาน Certificate
สอบถามรายละเอียดสินค้าเพิ่มเติม LINE: @sysnet
Unifi UACC LRE Installtion Guide
Long-range Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE output.
*การทวนสัญญาณติดตั้งได้ระยะทางต่อจุด 100 เมตร ตามมาตรฐานการเดินสาย UTP
**Powered with pins 1, 2+; 3, 6- ซึ่ง Network Switch ของบริษัทอื่นบางรุ่นอาจไม่รองรับ เราขอแนะนำให้ใช้ Unifi Switch เพื่อจ่ายไฟให้กับอุปกรณ์
Product Specification |
|
Overview |
UACC-LRE Ubiquiti Unifi Long-Range Ethernet Repeater เพิ่มระยะการเดินสาย Lan พร้อมไฟ POE ระยะทางสูงสุด 1Km (จุดละ 100m) รองรับระยะทางได้สูงสุด 1,000m (ใช้ UACC-LRE 9 ชุด) จ่ายไฟ POE มาตรฐาน 802.3af ให้กับอุปกรณ์ Network ปลายทางที่รองรับ POE (ใช้ร่วมกับ POE 802.3at) |
Mechanical |
|
Dimensions | 196.5 x 93.5 x 39 mm ( 7.7 x 3.7 x 1.5") |
Weight | 350 g (12.3 oz) |
Enclosure material | UV stabilized polycarbonate |

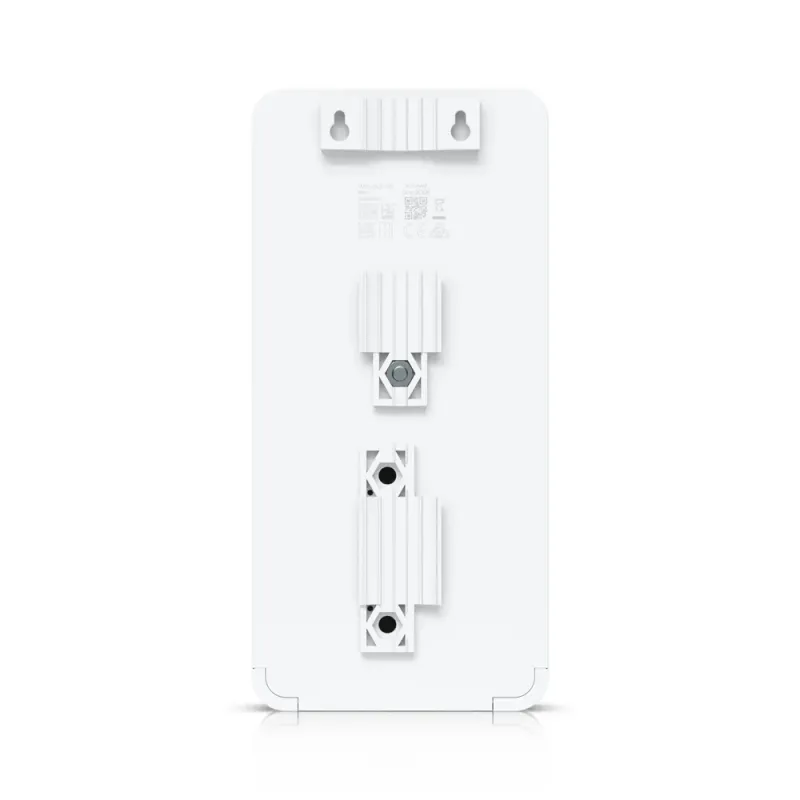

Mounting material | Stainless steel |
Weatherproofing | IPX5 |
Hardware |
|

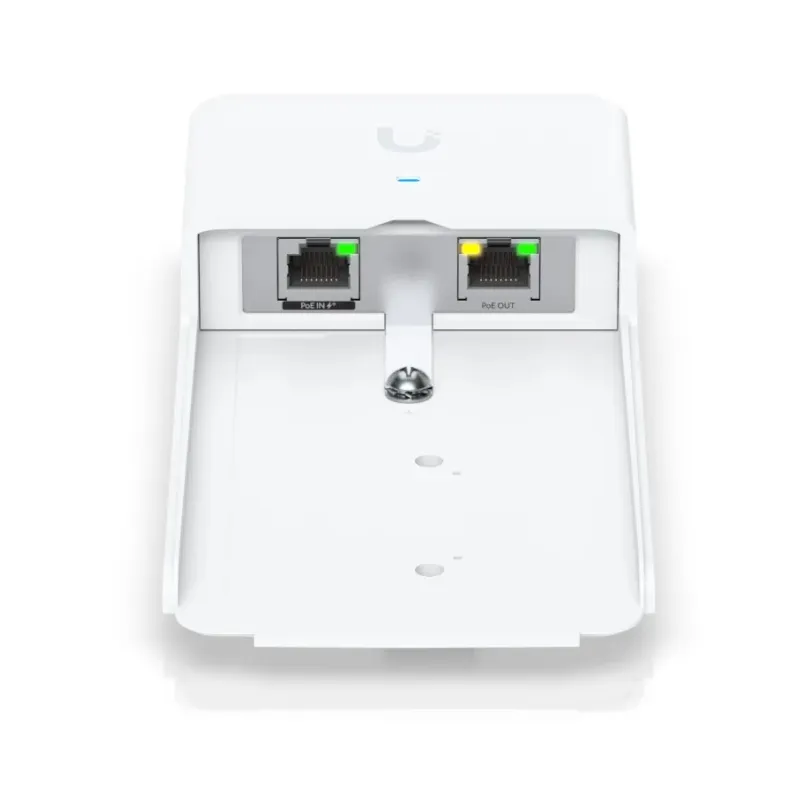

Networking interface | (2) GbE RJ45 ports |
PoE interface | (1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-) |
Power method | PoE/PoE+ 2-pairs (pins 1, 2+; 3, 6-)**May not be supported by certain third-party switches. We recommend using a UniFi switch to power the device. |
Max. power consumption (excluding PoE out) | 1.5W |
Voltage range | 37-57V DC |
ESD/EMP protection | Air/contact: ± 30kV |
DC sparkover voltage | 90V at 100V/s |
Max. impulse sparkover voltage | 700V at 1kV/μs |
Discharge current | 10kA+ |
Max. MTU | 1,500 bytes |
Modes | Long-range indoorOutdoor ethernet repeater |
Ambient operating temperature | -40 to 80° C (-40 to 176° F) |
Ambient operating humidity | 10 to 95% non-condensing |
Certifications | CE, FCC, IC |
LEDs |
|
System | Blue: power ON |
Ethernet | Green: 1 GbpsAmber: 10/100 Mbps |
PoE | Amber: passthrough PoE out |
รับประกัน |
1 ปี |
