Product Specification
|
|
Overview
|

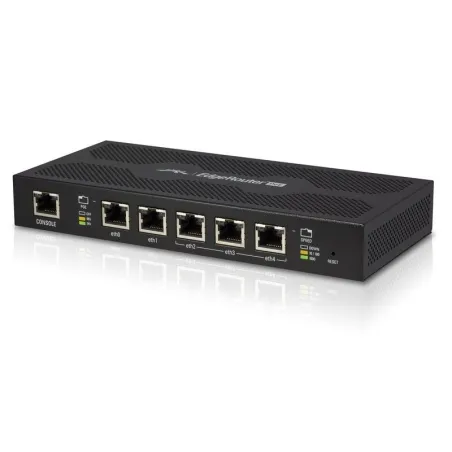

Ubiquiti Edge Router-POE 5 (ERPoE-5) อุปกรณ์ Router ขนาด 5 Port ความเร็ว Gigabit รองรับการจ่ายไฟไปยังอุปกรณ์ภายนอก (POE) ขนาด 24VDC และ 48VDC (ไม่ใช่มาตรฐาน IEEE 802.3af/802.3at) รองรับการทำ Routing, Loadbalance 2 Wan, Basic Firewall, VPN, QOS
|
|
CPU
|
Dual-Core 500MHz, MIPS64
with Hardware Acceleration for Packet Processing
|
|
Memory
|
512MB DDR3 RAM
|
|
Onboard Flash Storage
|
2 GB
|
|
Layer 3 Forwarding Performance
|
|
Packet Size: 64 Bytes
|
1,000,000 pps
|
|
Packet Size: 512 Bytes or Larger
|
3 Gbps (Line Rate)
|
|
|
Networking Interfaces
|
|
Serial Console Port
|
1 Port RJ45 Serial Port
|
|
Data Port
|
(2) 10/100/1000 Ethernet Router Ports
(3) 10/100/1000 Ethernet Router/Switch Ports
|
|
|
PoE with 24VDC Power Adapter
|
|
PoE Out Voltage Range
|
22-24VDC
|
|
Max. PoE Wattage Per Data Port
|
12 W (24V)
|
|
Max. PoE Wattage Combined for All 5 Data Ports
|
50 W
|
|
PoE Method
|
Passive
|
|
|
PoE with 24VDC Power Adapter
|
|
PoE Out Voltage Range
|
22-24VDC / 45-48VDC
|
|
Max. PoE Wattage Per Data Port
|
12 W (24V), 24 W (48V)
|
|
Max. PoE Wattage Combined for All 5 Data Ports
|
50 W
|
|
PoE Method
|
Passive
|
|
|
EdgeOS Specification
|
|
Interface/Encapsulation Ethernet
|
802.1q VLAN
PPPoE
GRE
IP in IP
Bridging
Bonding (802.3ad)
|
|
Addressing
|
Static IPv4/IPv6 Addressing
DHCP/DHCPv6
|
|
Routing
|
Static Routes
OSPF/OSPFv3
RIP/RIPng
BGP (with IPv6 Support)
IGMP Proxy
|
|
Security
|
ACL-Based Firewall
Zone-Based Firewall
NAT
|
|
VPN
|
IPSec Site-to-Site and Remote Access
OpenVPN Site-to-Site and Remote Access
PPTP Remote Access
L2TP Remote Access
PPTP Client
|
|
Services
|
DHCP/DHCPv6 Server
DHCP/DHCPv6 Relay
Dynamic DNS
DNS Forwarding
VRRP
RADIUS Client
Web Caching
PPPoE Server
|
|
QoS
|
FIFO
Stochastic Fairness Queueing
Random Early Detection
Token Bucket Filter
Deficit Round Robin
Hierarchical Token Bucket
Ingress Policing
|
|
Management
|

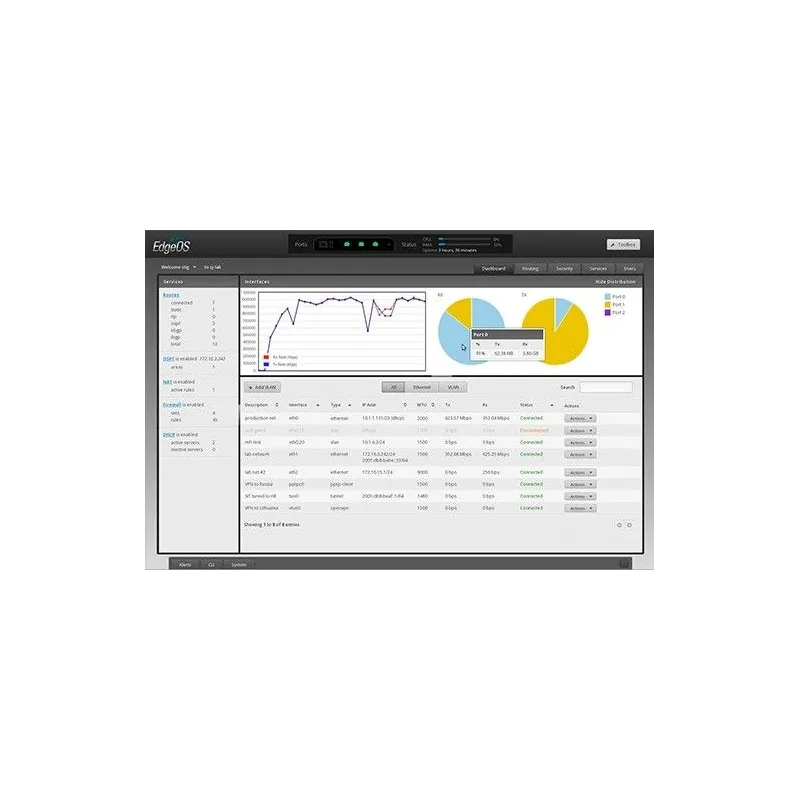

Web UI
CLI (Console, SSH, Telnet)
SNMP
NetFlow
LLDP
NTP
UBNT Discovery Protocol
Logging
|
|
Power
|
24VDC, 2.5A Power Adapter (Included
|
|
Dimensions
|
200 x 90 x 30 mm
|
|
Weight
|
360g
|
|
Operating Temperature
|
-10 to 45?C
|
|
รับประกัน
|
1 ปี
|
