Product Specification
|
|
Overview
|

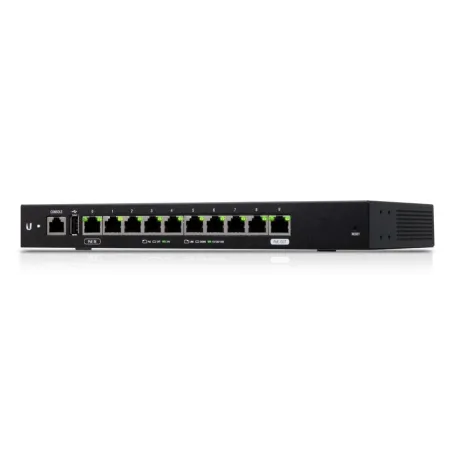

Ubiquiti EdgeRouter ER-10X Advanced Gigabit Ethernet Router, 10 Port Gigabit, รองรับไฟเลี้ยง POE 24VDC, รองรับ VPN IPSecs, OpenVPN, PPTP, L2TP
Throughput 260kpps
|
|
|

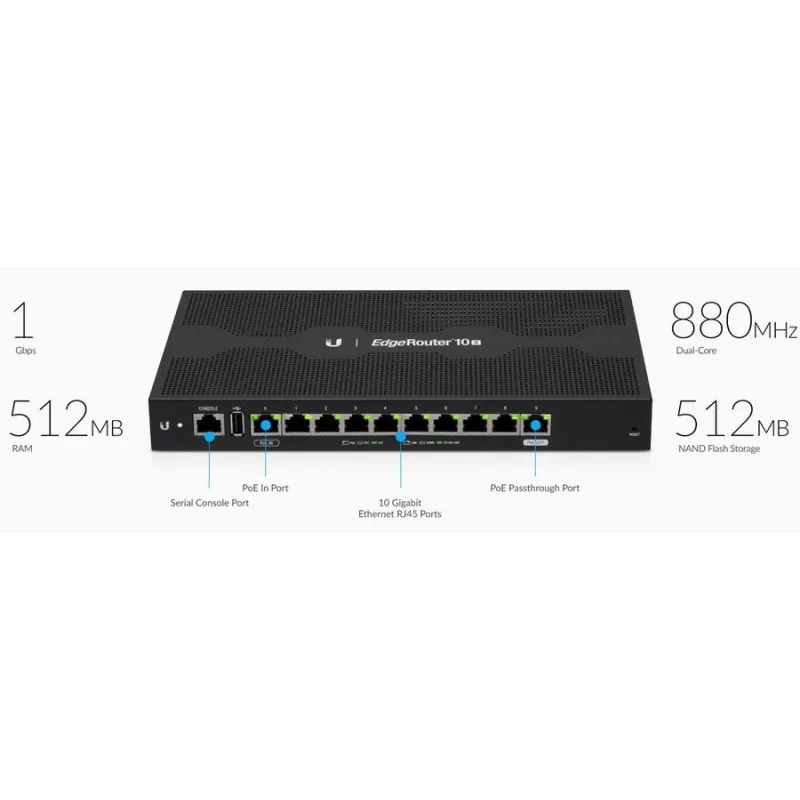

• (10) Gigabit RJ45 routing ports
• 24V PoE input on port 0
• 24V PoE passthrough option on port 9
• Ports 0-9 can be configured for line-rate Layer 2 switching
• 260,000 packets per second for 64-byte packets
• 1 Gbps for packets 1518 bytes or larger in size
• Silent, fanless operation
• Compact, durable metal case
|
|
Dimensions
|
268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22")
|
|
Weight
|
600 g (1.32 lb)
|
|
Max. Power Consumption
|
8W (Excludes PoE Output)
|
|

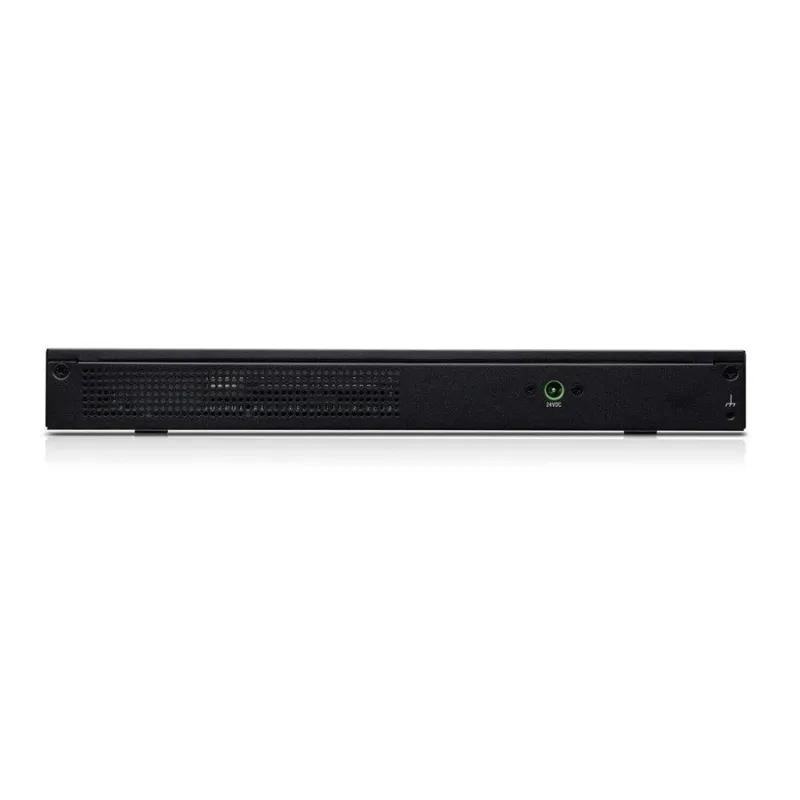

Power Method
|
External AC/DC Power Adapter, 24W (24V, 1A) (Included)
24V Passive PoE
|
|
Power Supply
|
External AC/DC Adapter
|
|
Supported Voltage Range
|
DC: 9 - 30VDC
24V Passive PoE
|
|
Button
|
Reset
|
|
LEDs
|
Link/Activity, PoE (Port 9 Only)
|
|

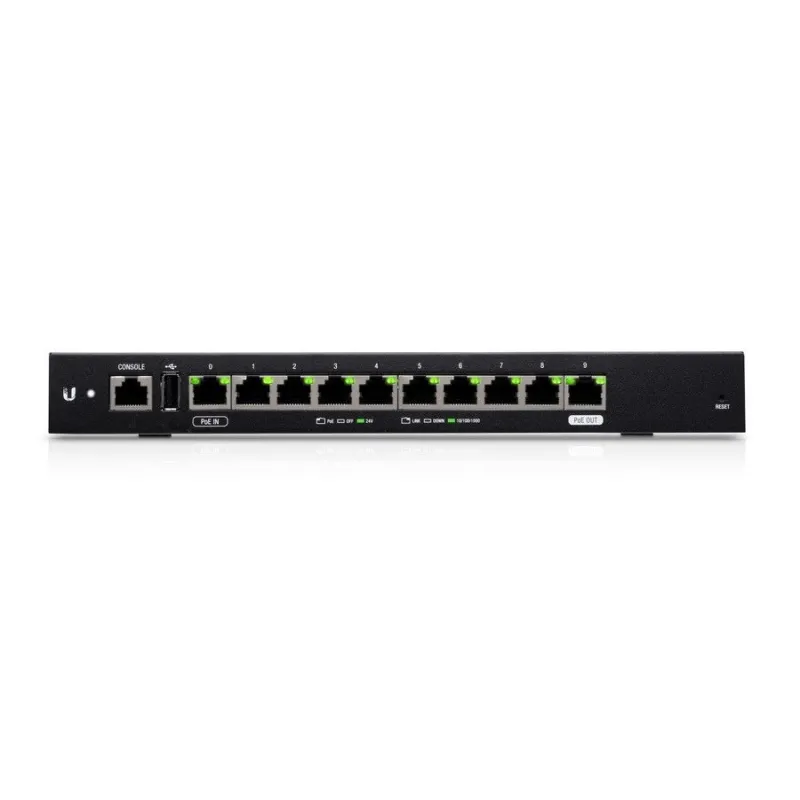

Interfaces
|
(1) RJ45 Serial Port
(10) Ethernet Ports (Default Port 0)
(10) 10/100/1000 RJ45 Ports
|
|
Layer 3 Forwarding Performance
|
Packet Size: 64 Bytes: 260,000 pps
Packet Size: 1518 Bytes or Larger: 1 Gbps (Line Rate)
|
|
Processor
|
Dual-Core 880 MHz, MIPS1004Kc
|
|
System Memory
|
512 MB DDR3 RAM
|
|
On-Board Flash Storage
|
512 MB NAND
|
|
Mounting
|
Wall, Rack*
|
|
Operating Temperature
|
-10 to 50? C (14 to 122? F)
|
|
Operating Humidity
|
10 - 90% Noncondensing
|
|
Certifications
|
CE, FCC, IC
|
|
PoEr
|
|
PoE Interfaces
|
PoE In: (1) 24V Passive PoE Port, 2-pair (4, 5+; 7, 8-)
PoE Out: (1) 24V Passive PoE Port, 2-pair (4, 5+; 7, 8-)
|
|
Passive PoE Max. Wattage Per Port
|
15W (24V, 0.63A
|
|
Passive PoE Output
|
DC/PoE Passthrough
|
|
EdgeOS
|
|
Interface/Encapsulation
|
Ethernet
802.1q VLAN
PPPoE
GRE
IP in IP
Bridging
Bonding (802.3ad)
|
|
Addressing
|
Static IPv4/IPv6 Addressing
DHCP/DHCPv6
|
|
Routing
|
Static Routes
OSPF/OSPFv3
RIP/RIPng
BGP (with IPv6 Support)
IGMP Proxy
MPLS
|
|
Security
|
ACL-Based Firewall
Zone-Based Firewall
Application Identification with Deep Packet Inspection (DPI
NAT
|
|
VPN
|
IPSec Site-to-Site and Remote Access
OpenVPN Site-to-Site and Remote Access
PPTP Remote Access
L2TP Remote Access
PPTP Client
|
|
Services
|
DHCP/DHCPv6 Server
DHCP/DHCPv6 Relay
Dynamic DNS
DNS Forwarding
VRRP
RADIUS Client
Web Caching
PPPoE Server
|
|
QoS
|
FIFO
Stochastic Fairness Queueing
Random Early Detection
Token Bucket Filter
Deficit Round Robin
Hierarchical Token Bucket
Ingress Policing
|
|

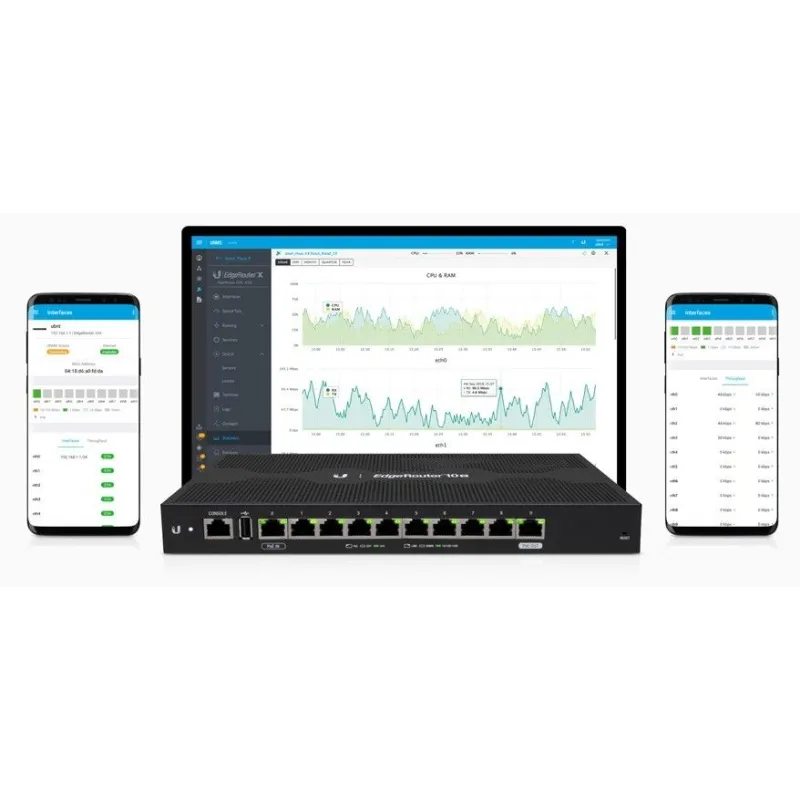

Management
|
Web UI
Ubiquiti Network Management System (UNMS)
CLI (GUI, Console, SSH, Telnet)
SNMP
NetFlow
LLDP
NTP
UBNT Discovery Protocol
Syslog
|
|
รับประกัน
|
1 ปี
|
|
|
|
