Product Specification
|
|
Overview
|

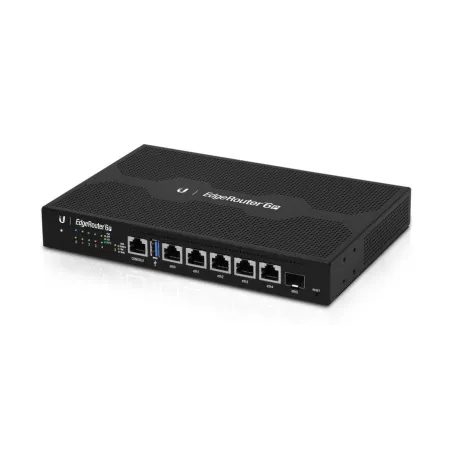

Ubiquiti EdgeRouter ER-6P Advanced Gigabit Ethernet Router, 6 Port Gigabit, จ่ายไฟ Passive PoE Passthrough 5 Port, รองรับ VPN IPSecs, OpenVPN, PPTP, L2TP
Throughput สูงถึง 3.6 million mpps
|
|
Dimensions
|
229 x 136.5 x 31.1 mm (9.02 x 5.37 x 1.22")
|
|
Weight
|
730 g (1.61 lb)
|
|
Max. Power Consumption
|
16W (Excludes PoE Output)
|
|
Power Method
|
External AC/DC Power Adapter, 60W (24V, 2.5A) (Included)
|
|
Power Supply
|
External AC/DC Adapter
|
|
Supported Voltage Range
|
16 - 30VDC
|
|
Button
|
Reset
|
|
LEDs
|
Data Ports: Speed/Link/Activity, PoE
SFP Data Port: Link/Activity
|
|

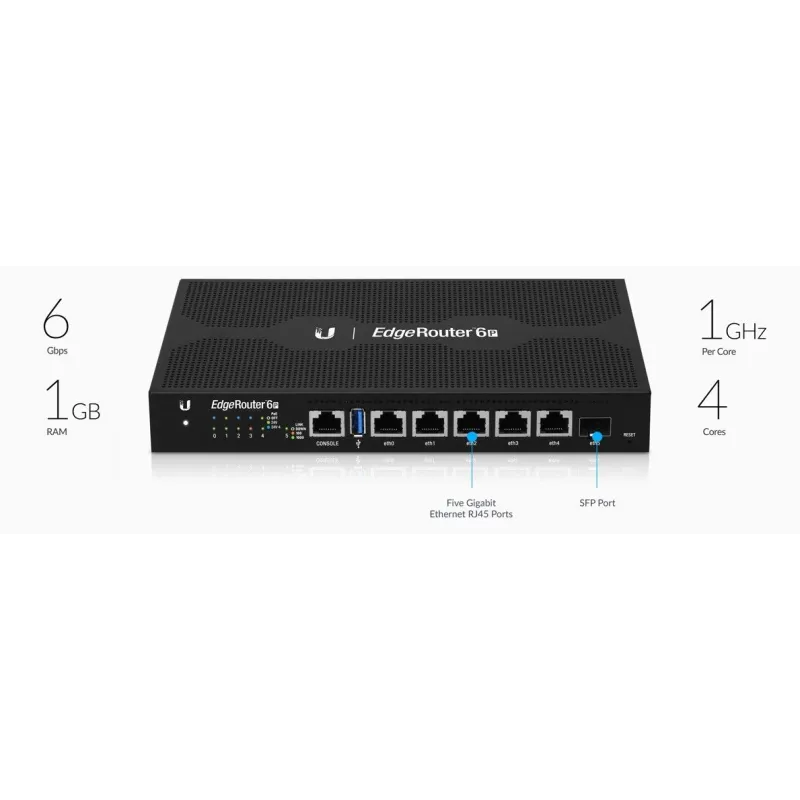

Interfaces
|
(1) RJ45 Serial Port
(6) Ethernet Ports (Default eth0)
(5) 10/100/1000 RJ45 Ports with PoE
(1) 1 Gbps SFP Port
|
|
Layer 3 Forwarding Performance
|
Packet Size: 64 Bytes
3,400,000 pps
Packet Size: 512 Bytes or Larger
6 Gbps (Line Rate)
|
|
Processor
|
4-Core 1 GHz, MIPS64
|
|
System Memory
|
1 GB DDR3 RAM
|
|
On-Board Flash Storage
|
4 GB eMMC, 8 MB SPI NOR
|
|
Mounting
|
Wall, Rack*
|
|
Operating Temperature
|
-10 to 50? C (14 to 122? F)
|
|
Operating Humidity
|
10 - 90% Noncondensing
|
|
Certifications
|
CE, FCC, IC
|
|
PoE with 24VDC Power Adapter
|
|
PoE Interfaces
|
(5) 24V Passive PoE Ports, 2-pair (4, 5+; 7, 8-) and 4-pair
|
|
Passive PoE Max. Wattage Per Port
|
24W (24V, 1A, 4-pair)
12W (24V, 0.5A, 2-pair)
|
|
Voltage Range Passive PoE
|
24V
|
|
EdgeOS
|
|
Interface/Encapsulation
|
Ethernet
802.1q VLAN
PPPoE
GRE
IP in IP
Bridging
Bonding (802.3ad)
|
|
Addressing
|
Static IPv4/IPv6 Addressing
DHCP/DHCPv6
|
|
Routing
|
Static Routes
OSPF/OSPFv3
RIP/RIPng
BGP (with IPv6 Support)
IGMP Proxy
MPLS
|
|
Security
|
ACL-Based Firewall
Zone-Based Firewall
Application Identification with Deep Packet Inspection (DPI
NAT
|
|
VPN
|
IPSec Site-to-Site and Remote Access
OpenVPN Site-to-Site and Remote Access
PPTP Remote Access
L2TP Remote Access
PPTP Client
|
|
Services
|
DHCP/DHCPv6 Server
DHCP/DHCPv6 Relay
Dynamic DNS
DNS Forwarding
VRRP
RADIUS Client
Web Caching
PPPoE Server
|
|
QoS
|
FIFO
Stochastic Fairness Queueing
Random Early Detection
Token Bucket Filter
Deficit Round Robin
Hierarchical Token Bucket
Ingress Policing
|
|
Management
|
Web UI
Ubiquiti Network Management System (UNMS)
CLI (GUI, Console, SSH, Telnet)
SNMP
NetFlow
LLDP
NTP
UBNT Discovery Protocol
Syslog
|
|
รับประกัน
|
1 ปี
|
|
|
|
