Product Specification
|
|
Overview
|

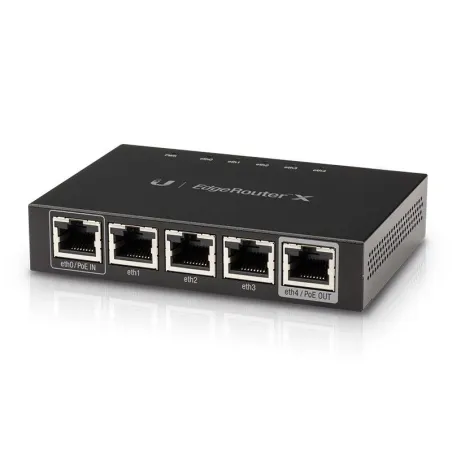

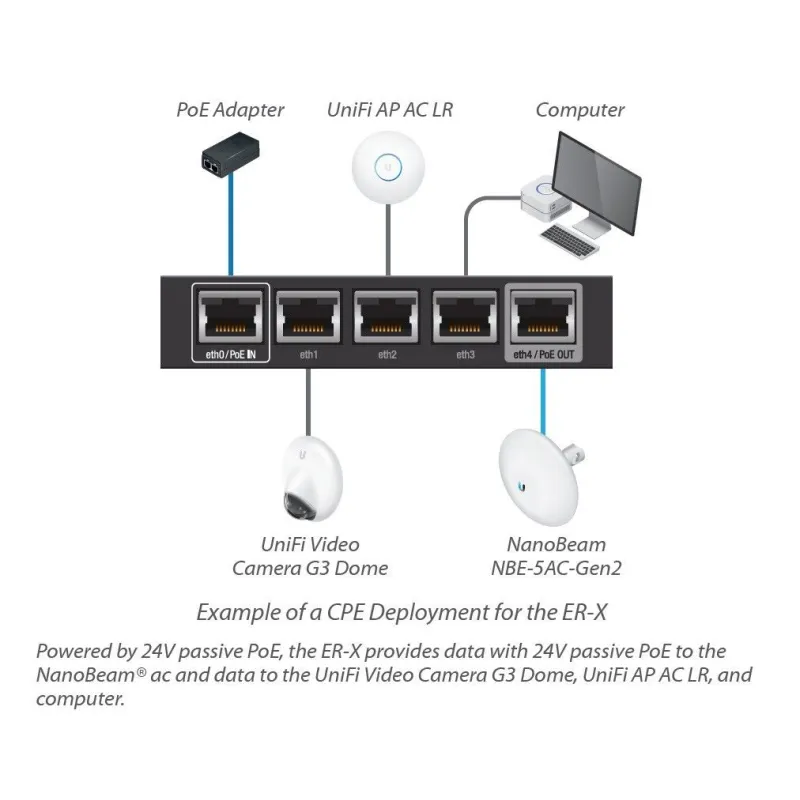

Ubiquiti EdgeRouter X (ER-X) Advanced Gigabit Ethernet Router 2 Wan, 5 Port Gigabit จ่ายไฟ Passive PoE Passthrough ให้กับอุปกรณ์ airMax โดยต่อไฟ POE 24 VDC เข้าที่ Port 1 รองรับ VPN IPSecs, OpenVPN, PPTP, L2TP
|
|
Dimensions
|
110 x 75 x 22 mm (4.33 x 2.95 x 0.87")
|
|
Weight
|
175 g (6.17 oz)
|
|
Max. Power Consumption
|
5W
|
|
Power Input
|
12VDC, 0.5A Power Adapter (Included) or 24V Passive PoE
|
|
Power Supply
|
External AC/DC Adapter
|
|
Supported Voltage Range
|
9 to 26VDC
|
|
Button
|
Reset
|
|
LED
|
Power, Ethernet 0-4
|
|
Processor
|
Dual-Core 880 MHz, MIPS1004Kc
|
|
System Memory
|
256 MB DDR3 RAM
|
|
Code Storage
|
256 MB NAND
|
|
Certifications
|
CE, FCC, IC
|
|
Wall-Mount
|
Yes
|
|
ESD/EMP Protection
|
Air: ? 24 kV, Contact: ? 24 kV
|
|
Operating Temperature
|
-10 to 45? C (14 to 113? F)
|
|
Operating Humidity
|
10 to 90% Noncondensing
|
|
Networking Interfaces
|
|
|
Data/PoE Input Port
|
(1) 10/100/1000 RJ45 Port
|
|
Data Ports
|
(3) 10/100/1000 RJ45 Ports
|
|
Data/PoE Passthrough Port
|
(1) 10/100/1000 RJ45 Port
|
|
EdgeOS
|
|
|
Interface/Encapsulation
|
Ethernet
802.1q VLAN
PPPoE
GRE
IP in IP
Bridging
Bonding (802.3ad)
|
|
Addressing
|
Static IPv4/IPv6 Addressing
DHCP/DHCPv6
|
|
Routing
|

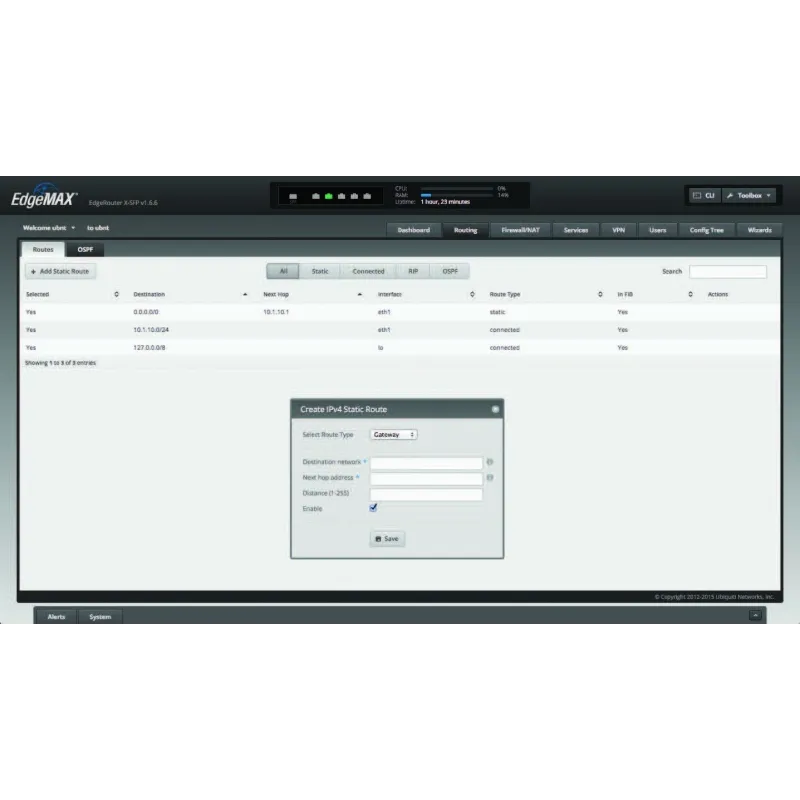

Static Routes

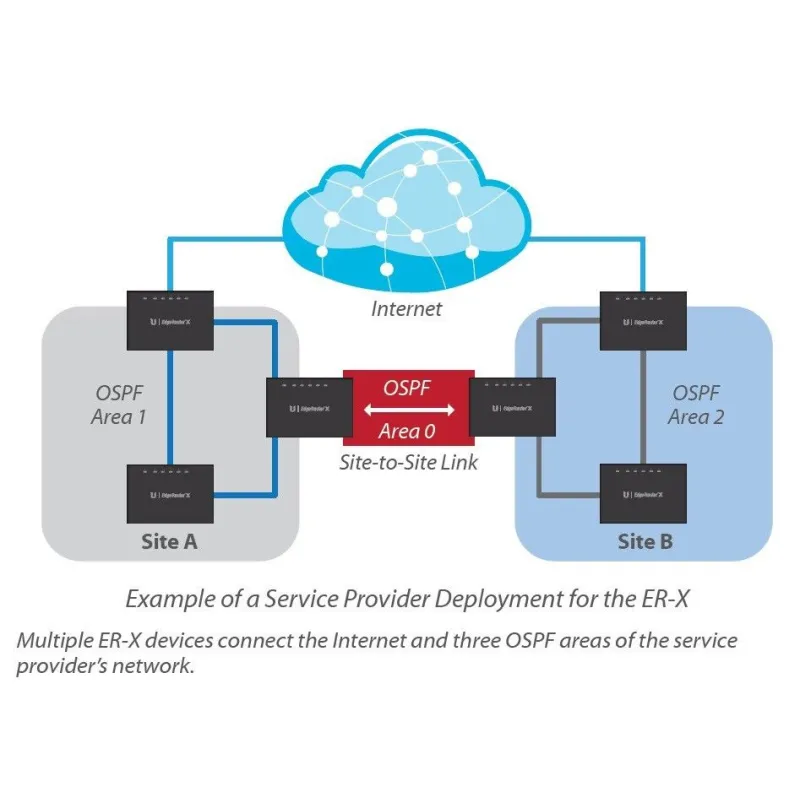

OSPF/OSPFv3
RIP/RIPng
BGP (with IPv6 Support)
IGMP Proxy
|
|
Security
|
ACL-Based Firewall
Zone-Based Firewall
NAT
|
|
VPN
|
IPSec Site-to-Site and Remote Access
OpenVPN Site-to-Site and Remote Access
PPTP Remote Access
L2TP Remote Access
PPTP Client
|
|
Services
|
DHCP/DHCPv6 Server
DHCP/DHCPv6 Relay
Dynamic DNS
DNS Forwarding
VRRP
RADIUS Client
Web Caching
PPPoE Server
|
|
QoS
|
FIFO
Stochastic Fairness Queueing
Random Early Detection
Token Bucket Filter
Deficit Round Robin
Hierarchical Token Bucket
Ingress Policing
|
|
Management
|

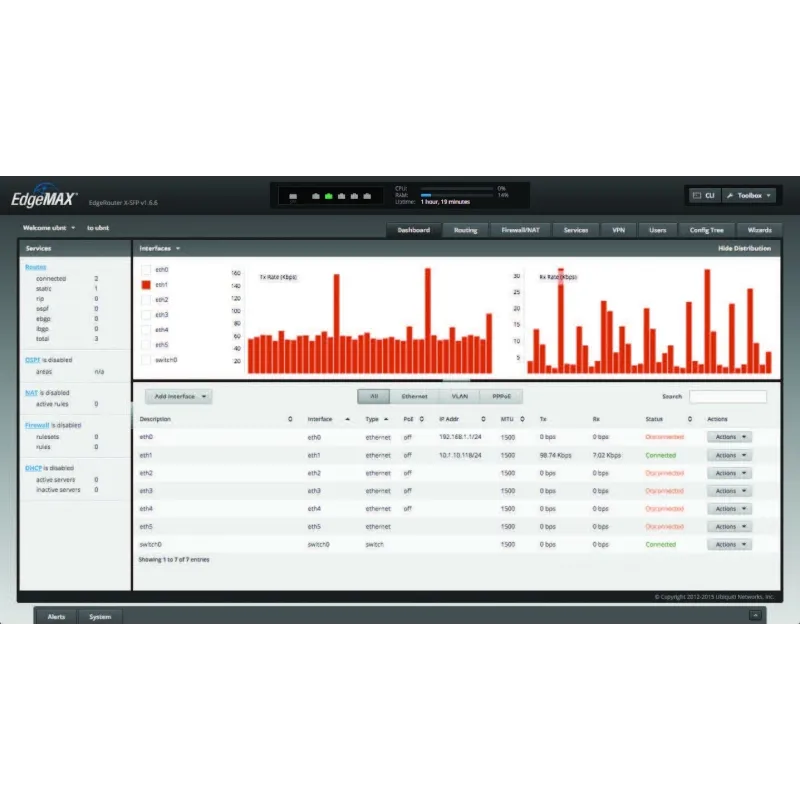

Web UI
CLI (SSH, Telnet)
SNMP
NetFlow
LLDP
NTP
UBNT Discovery Protocol
Logging
|
|
รับประกัน
|
1 ปี
|
|
|
|
