Product Specification
|
|
Overview
|

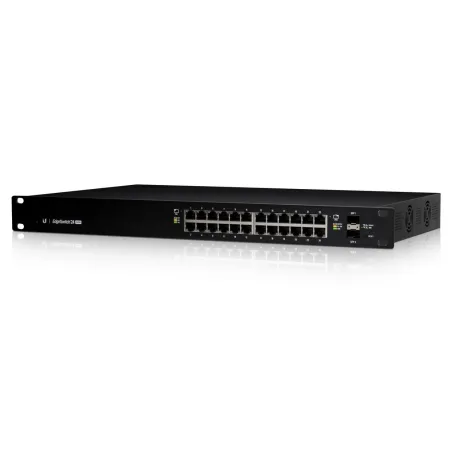

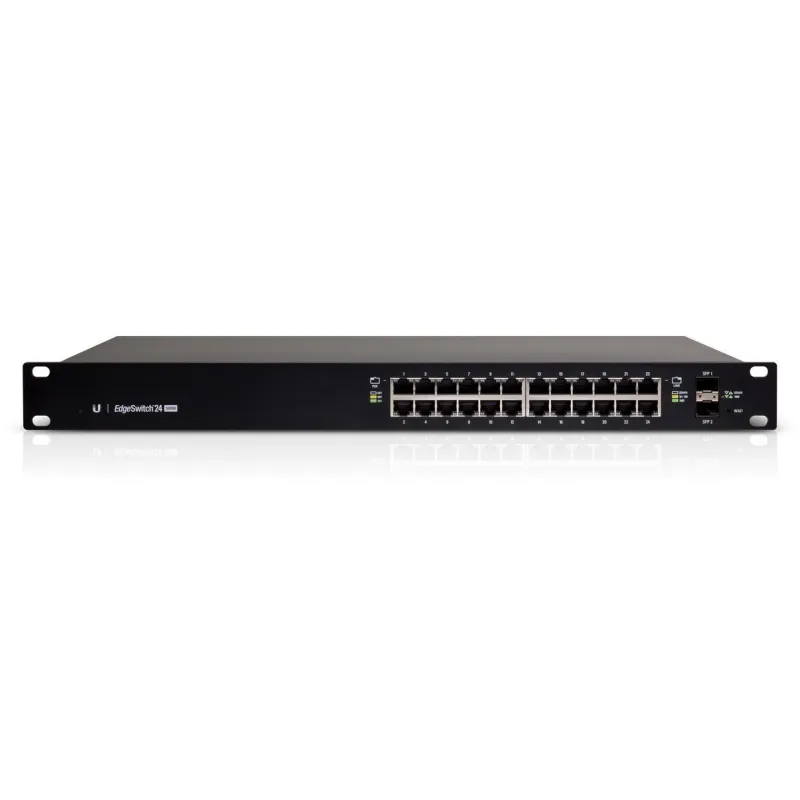

Ubiquiti EdgeSwitch ES-24-500W L2/L3 Managed Gigabit POE Switch 24 Port พร้อม 2 Port SFP, 1 Serial Console , จ่ายไฟ POE มาตรฐาน 802.3af/at 24 Port สูงสุด 500W หรือ POE Passive 24VDC, รองรับการทำ VLAN, Routing, DHCP Snooping
|
|
Dimensions
|
485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24")
|
|
Weight
|
4.8 kg (10.6 lb)
|
|
Total Non-Blocking Throughput
|
26 Gbps
|
|
Switching Capacity
|
52 Gbps
|
|
Forwarding Rate
|
38.69 Mpps
|
|
Max. Power Consumption
|
Includes PoE Output: 500W
Excludes PoE Output: 30W
|
|
Power Method
|
100-240VAC/50-60 Hz, Universal Input
|
|
Power Supply
|
AC/DC, Internal, 500W DC
|
|
LEDs Per Port
|
RJ45 Data Ports: PoE, Speed/Link/Activity
SFP Data Ports: Speed/Link/Activity
|
|
Networking Interfaces
|
(24) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
|
|
Management Interface
|
(1) RJ45 Serial Port, Ethernet In/Out Band
|
|
Certifications
|
CE, FCC, IC
|
|
Wallmount
|
Yes |
|
ESD/EMP Protection
|
Air: ?24 kV, Contact: ?24 kV
|
|
Operating Temperature
|
-5 to 40? C (23 to 104? F)
|
|
Operating Humidity
|
5 to 95% Noncondensing
|
|
Shock and Vibration
|
ETSI300-019-1.4 Standard
|
|
PoE Per Port
|
|
PoE Interfaces
|
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)
|
|
Max. PoE+ Wattage per Port by PSE
|
34.2W
|
|
Voltage Range 802.3at Mode
|
50–57V
|
|
Max. Passive PoE Wattage per Port
|
17W
|
|
24V Passive PoE Voltage Range
|
20-27V
|
|
Software Information
|
|
Core Switching Features
|
• ANSI/TIA-1057: LLDP-Media Endpoint Discovery (MED)
• IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
• IEEE 802.1D: Spanning Tree Compatibility
• IEEE 802.1S: Multiple Spanning Tree Compatibility
• IEEE 802.1W: Rapid Spanning Tree Compatibility
• IEEE 802.1Q: Virtual LANs with Port-Based VLANs
• IEEE 802.1p: Ethernet Priority with User Provisioning and Mapping
• IEEE 802.1X: Port-Based Authentication with Guest VLAN Support
• IEEE 802.3: 10BASE-T
• IEEE 802.3u: 100BASE-T
• IEEE 802.3ab: 1000BASE-T
• IEEE 802.1ak: Virtual Bridged Local Area Networks - Amendment 07: Multiple Registration Protocol
• IEEE 802.3ac: VLAN Tagging
• IEEE 802.3ad: Link Aggregation
• IEEE 802.3x: Flow Control
• IEEE 802.1D-2004: Generic Attribute Registration Protocol: Clause 12 (GARP)
• IEEE 802.1D-2004: Dynamic L2 multicast registration: Clause 10 (GMRP)
• IEEE 802.1Q-2003: Dynamic VLAN registration: Clause 11.2 (GVRP)
• RFC 4541: Considerations for Internet Group Management Protocol (IGMP) Snooping Switches
• RFC 5171: Unidirectional Link Detection (UDLD) Protocol
|
|
Advanced Layer 2 Features
|
• Broadcast Storm Recovery
• Broadcast/Multicast/Unknown Unicast Storm Recovery
• DHCP Snooping
• IGMP Snooping Querier
• Independent VLAN Learning (IVL) Support
• Jumbo Ethernet Frame Support
• Port MAC Locking
• Port Mirroring
• Protected Ports
• Static MAC Filtering
• TACACS+
• Voice VLANs
• Unauthenticated VLAN
• Internal 802.1X Authentication Server
|
|
Platform Specifications
|
• DHCP Server
• Maximum Number of Pools: 8
• Maximum Number of Leases (Total): 128
• Routing
• Number of Routes: 16
• Number of Routing Interfaces: 15
• VLANs: 255
• MAC Addresses: 16,384
• MSTP Instances: 4
• LAGs: 6
• ACLs: 100 with 10 Rules per Port
• Traffic Classes (Queues): 8
|
|
System Facilities
|
• Event and Error Logging Facility
• Run-Time and Configuration Download Capability
• PING Utility
• FTP/TFTP Transfers via IPv4/IPv6
• Malicious Code Detection
• BootP and DHCP
• RFC 2021: Remote Network Monitoring Management Information Base Version 2
• RFC 2030: Simple Network Time Protocol (SNTP)
• RFC 2819: Remote Network Monitoring Management Information Base
• RFC 2865: RADIUS Client
• RFC 2866: RADIUS Accounting
• RFC 2868: RADIUS Attributes for Tunnel Protocol Support
• RFC 2869: RADIUS Extensions
• RFC 3579: RADIUS Support for EAP
• RFC 3580: IEEE 802.1X RADIUS Usage Guidelines
• RFC 3164: BSD Syslog Protocol
|
|
Management
|
• Web UI
• Industry-Standard CLI
• IPv6 Management
• Password Management
• Autoinstall Support for Firmware Images and Configuration Files
• SNMP v1, v2, and v3
• SSH 1.5 and 2.0
• SSL 3.0 and TLS 1.0
• Secure Copy (SCP)
• Telnet (Multi-Session Support)
|
|
Layer 3 Routing
|
• Static Routing
• Policy Based Routing
|
|
ประกัน
|
1 ปี
|
|
|
