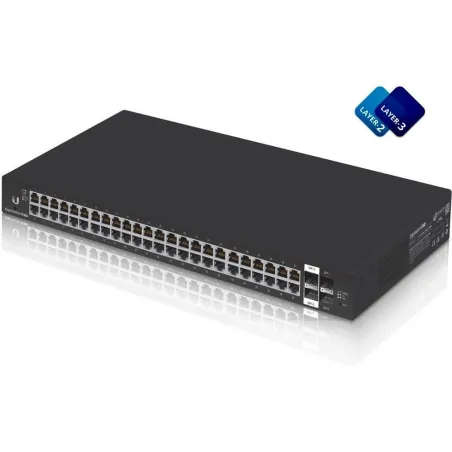

Ubiquiti EdgeSwitch ES-48-Lite L2/L3 Managed Gigabit Switch 48 Port, 2 Port SFP+ 10Gbps

Product Specification

Overview

Ubiquiti EdgeSwitch 48 Lite (ES-48-Lite) L2/L3 Managed Gigabit Switch 48 Port พร้อม 2 Port SFP+ ความเร็ว 10Gbps, 2 Port SFP, 1 Serial Console รองรับการทำ VLAN, Routing, DHCP Snooping

Dimensions

443 x 43 x 286 mm (17.44 x 1.69 x 11.26")

Weight

Rack-Mount Brackets Included: 3.65 kg (8.05 lb)
Rack-Mount Brackets Excluded: 3.56 kg (7.85 lb)

Total Non-Blocking Throughput

70 Gbps

Switching Capacity

140 Gbps

Forwarding Rate

104.16 Mpps

Max. AC Power Consumption

56W

Power Method

AC: 100-240VAC/50-60 Hz, Universal Input
DC: 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector

Power Supply

AC/DC, Internal, 56W DC

LEDs Per Port

Serial Console Port: N/A
RJ45 Data Ports: Speed/Link/Activity
SFP+/SFP Data Ports: Speed/Link/Activity

Networking Interfaces

(48) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1/10 Gbps SFP+ Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports

Management Interface

(1) RJ45 Serial Port, Ethernet In/Out Band

Certifications

CE, FCC, IC

Rackmount

Yes, 1U High

ESD/EMP Protection

Air: ?24 kV, Contact: ?24 kV

Operating Temperature

-5 to 40? C (23 to 104? F)

Operating Humidity

5 to 95% Noncondensing

Shock and Vibration

ETSI300-019-1.4 Standard

Software Information

Core Switching Features

• ANSI/TIA-1057: LLDP-Media Endpoint Discovery (MED)
• IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
• IEEE 802.1D: Spanning Tree Compatibility
• IEEE 802.1S: Multiple Spanning Tree Compatibility
• IEEE 802.1W: Rapid Spanning Tree Compatibility
• IEEE 802.1Q: Virtual LANs with Port-Based VLANs
• IEEE 802.1p: Ethernet Priority with User Provisioning and Mapping
• IEEE 802.1X: Port-Based Authentication with Guest VLAN Support
• IEEE 802.3: 10BASE-T
• IEEE 802.3u: 100BASE-T
• IEEE 802.3ab: 1000BASE-T
• IEEE 802.1ak: Virtual Bridged Local Area Networks - Amendment 07: Multiple Registration Protocol
• IEEE 802.3ac: VLAN Tagging
• IEEE 802.3ad: Link Aggregation
• IEEE 802.3x: Flow Control
• IEEE 802.1D-2004: Generic Attribute Registration Protocol: Clause 12 (GARP)
• IEEE 802.1D-2004: Dynamic L2 multicast registration: Clause 10 (GMRP)
• IEEE 802.1Q-2003: Dynamic VLAN registration: Clause 11.2 (GVRP)
• RFC 4541: Considerations for Internet Group Management Protocol (IGMP) Snooping Switches
• RFC 5171: Unidirectional Link Detection (UDLD) Protocol

Advanced Layer 2 Features

• Broadcast Storm Recovery
• Broadcast/Multicast/Unknown Unicast Storm Recovery
• DHCP Snooping
• IGMP Snooping Querier
• Independent VLAN Learning (IVL) Support
• Jumbo Ethernet Frame Support
• Port MAC Locking
• Port Mirroring
• Protected Ports
• Static MAC Filtering
• TACACS+
• Voice VLANs
• Unauthenticated VLAN
• Internal 802.1X Authentication Server

Platform Specifications

• DHCP Server
• Maximum Number of Pools: 8
• Maximum Number of Leases (Total): 128
• Routing
• Number of Routes: 16
• Number of Routing Interfaces: 15
• VLANs: 255
• MAC Addresses: 16,384
• MSTP Instances: 4
• LAGs: 6
• ACLs: 100 with 10 Rules per Port
• Traffic Classes (Queues): 8

System Facilities

• Event and Error Logging Facility
• Run-Time and Configuration Download Capability
• PING Utility
• FTP/TFTP Transfers via IPv4/IPv6
• Malicious Code Detection
• BootP and DHCP
• RFC 2021: Remote Network Monitoring Management Information Base Version 2
• RFC 2030: Simple Network Time Protocol (SNTP)
• RFC 2819: Remote Network Monitoring Management Information Base
• RFC 2865: RADIUS Client
• RFC 2866: RADIUS Accounting
• RFC 2868: RADIUS Attributes for Tunnel Protocol Support
• RFC 2869: RADIUS Extensions
• RFC 3579: RADIUS Support for EAP
• RFC 3580: IEEE 802.1X RADIUS Usage Guidelines
• RFC 3164: BSD Syslog Protocol

Management

• Web UI
• Industry-Standard CLI
• IPv6 Management
• Password Management
• Autoinstall Support for Firmware Images and Configuration Files
• SNMP v1, v2, and v3
• SSH 1.5 and 2.0
• SSL 3.0 and TLS 1.0
• Secure Copy (SCP)
• Telnet (Multi-Session Support)

Layer 3 Routing

• Static Routing
• Policy Based Routing

ประกัน

1 ปี
