Product Specification
|
|
Overview
|

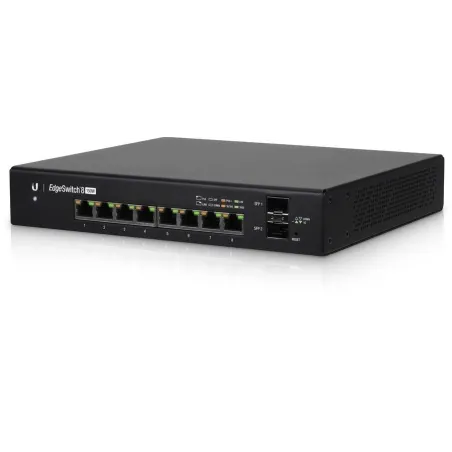

Ubiquiti EdgeSwitch ES-8-150W L2/L3 Managed Gigabit POE Switch 8 Port พร้อม 2 Port SFP, 1 Serial Console , จ่ายไฟ POE มาตรฐาน 802.3af/at 8 Port หรือ POE Passive 24VDC, รองรับการทำ VLAN, Routing, DHCP Snooping
|
|
Dimensions
|
204 x 43 x 235 mm (8.03 x 1.69 x 9.25")
|
|
Weight
|
Rack-Mount Brackets Included: 1.72 kg (3.79 lb)
Rack-Mount Brackets Excluded: 2.51 kg (1.8 kg (3.96 lb)
|
|
Total Non-Blocking Throughput
|
10 Gbps
|
|
Switching Capacity
|
20 Gbps
|
|
Forwarding Rate
|
14.88 Mpps
|
|
Max. Power Consumption
|
Includes PoE Output: 150"
Excludes PoE Output: 20W
|
|

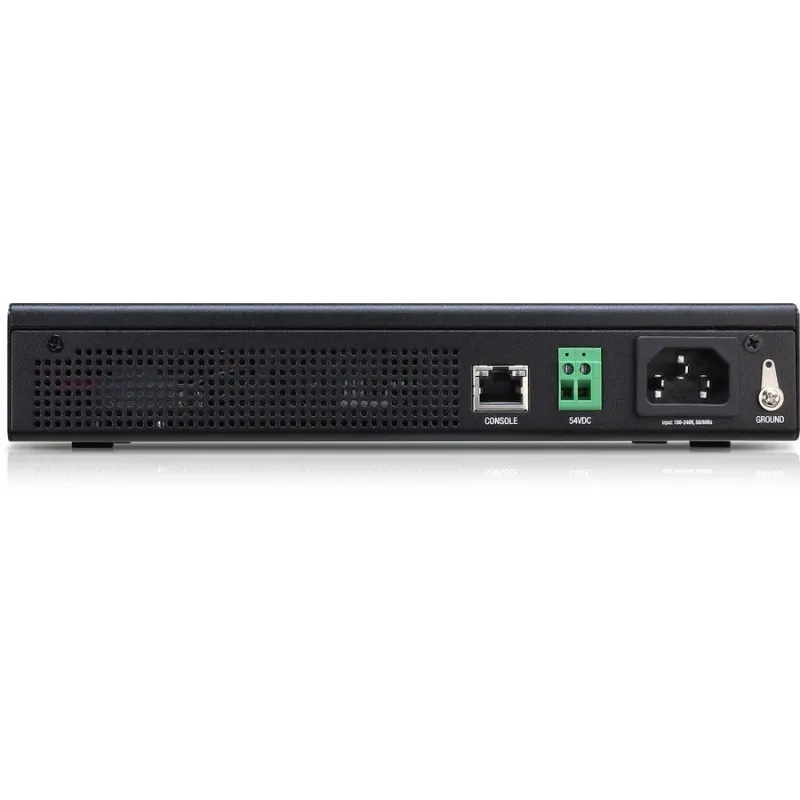

Power Method
|
AC: 100-240VAC/50-60 Hz, AC/DC Integrated PSU, Universal Input
DC: 42 to 56VDC External, (Self-Correcting Polarity Protection)Terminal Block Input
|
|
Power Supply
|
AC/DC, Internal, 150W DC
|
|
LEDs Per Port
|
RJ45 Data Ports: PoE, Speed/Link/Activity
SFP Data Ports: Speed/Link/Activity
|
|
Networking Interfaces
|
(8) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
|
|
Management Interface
|
(1) RJ45 Serial Port, Ethernet In/Out Band
|
|
Certifications
|
CE, FCC, IC
|
|
Wallmount
|
Yes |
|
ESD/EMP Protection
|
Air: ?24 kV, Contact: ?24 kV
|
|
Operating Temperature
|
Internal AC/DC @ 150W: -25 to 45? C (-13 to 113? F)
Internal AC/DC @ 100W: -25 to 55? C (-13 to 131? F)
External DC: -25 to 60? C (-13 to 140? F)
|
|
Operating Humidity
|
5 to 95% Noncondensing
|
|
Shock and Vibration
|
ETSI300-019-1.4 Standard
|
|
PoE Per Port
|
|
PoE Interfaces
|
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)
|
|
Max. PoE+ Wattage per Port by PSE
|
34.2W
|
|
Voltage Range 802.3at Mode
|
50–57V
|
|
Max. Passive PoE Wattage per Port
|
17W
|
|
24V Passive PoE Voltage Range
|
20-27V
|
|
Software Information
|
|
Core Switching Features
|
• ANSI/TIA-1057: LLDP-Media Endpoint Discovery (MED)
• IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
• IEEE 802.1D: Spanning Tree Compatibility
• IEEE 802.1S: Multiple Spanning Tree Compatibility
• IEEE 802.1W: Rapid Spanning Tree Compatibility
• IEEE 802.1Q: Virtual LANs with Port-Based VLANs
• IEEE 802.1p: Ethernet Priority with User Provisioning and Mapping
• IEEE 802.1X: Port-Based Authentication with Guest VLAN Support
• IEEE 802.3: 10BASE-T
• IEEE 802.3u: 100BASE-T
• IEEE 802.3ab: 1000BASE-T
• IEEE 802.1ak: Virtual Bridged Local Area Networks - Amendment 07: Multiple Registration Protocol
• IEEE 802.3ac: VLAN Tagging
• IEEE 802.3ad: Link Aggregation
• IEEE 802.3x: Flow Control
• IEEE 802.1D-2004: Generic Attribute Registration Protocol: Clause 12 (GARP)
• IEEE 802.1D-2004: Dynamic L2 multicast registration: Clause 10 (GMRP)
• IEEE 802.1Q-2003: Dynamic VLAN registration: Clause 11.2 (GVRP)
• RFC 4541: Considerations for Internet Group Management Protocol (IGMP) Snooping Switches
• RFC 5171: Unidirectional Link Detection (UDLD) Protocol
|
|
Advanced Layer 2 Features
|
• Broadcast Storm Recovery
• Broadcast/Multicast/Unknown Unicast Storm Recovery
• DHCP Snooping
• IGMP Snooping Querier
• Independent VLAN Learning (IVL) Support
• Jumbo Ethernet Frame Support
• Port MAC Locking
• Port Mirroring
• Protected Ports
• Static MAC Filtering
• TACACS+
• Voice VLANs
• Unauthenticated VLAN
• Internal 802.1X Authentication Server
|
|
Platform Specifications
|
• DHCP Server
• Maximum Number of Pools: 8
• Maximum Number of Leases (Total): 128
• Routing
• Number of Routes: 16
• Number of Routing Interfaces: 15
• VLANs: 255
• MAC Addresses: 16,384
• MSTP Instances: 4
• LAGs: 6
• ACLs: 100 with 10 Rules per Port
• Traffic Classes (Queues): 8
|
|
System Facilities
|
• Event and Error Logging Facility
• Run-Time and Configuration Download Capability
• PING Utility
• FTP/TFTP Transfers via IPv4/IPv6
• Malicious Code Detection
• BootP and DHCP
• RFC 2021: Remote Network Monitoring Management Information Base Version 2
• RFC 2030: Simple Network Time Protocol (SNTP)
• RFC 2819: Remote Network Monitoring Management Information Base
• RFC 2865: RADIUS Client
• RFC 2866: RADIUS Accounting
• RFC 2868: RADIUS Attributes for Tunnel Protocol Support
• RFC 2869: RADIUS Extensions
• RFC 3579: RADIUS Support for EAP
• RFC 3580: IEEE 802.1X RADIUS Usage Guidelines
• RFC 3164: BSD Syslog Protocol
|
|
Management
|
• Web UI
• Industry-Standard CLI
• IPv6 Management
• Password Management
• Autoinstall Support for Firmware Images and Configuration Files
• SNMP v1, v2, and v3
• SSH 1.5 and 2.0
• SSL 3.0 and TLS 1.0
• Secure Copy (SCP)
• Telnet (Multi-Session Support)
|
|
Layer 3 Routing
|
• Static Routing
• Policy Based Routing
|
|
ประกัน
|
1 ปี
|
|
|
