แบรนด์: Ubiquiti
ETH-SP-G2
Ubiquiti ETH-SP-G2 Ethernet Grounded ESD Protection / Surge Protection ป้องกันความเสียหายจากประจุไฟฟ้า, ESD, ฟ้าผ่า จากภายนอก เพื่อไม่ให้เข้ามาภายในระบบ ป้องกันอุปกรณ์เครือข่ายไม่ให้เกิดความเสียหาย รองรับความเร็ว Gigabit
ต้องการรายละเอียดสินค้าเพิ่มเติม LINE: @sysnet
Ubiquiti ETH-SP-G2 Ethernet Surge Datasheet
Product Specification |
|
Overview |

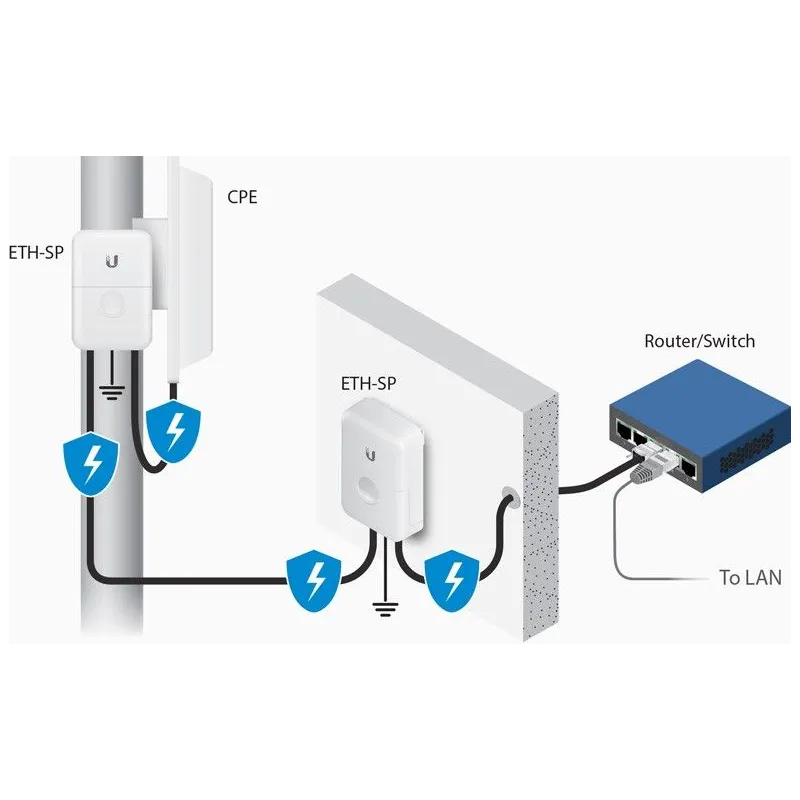

Ubiquiti ETH-SP-G2 Ethernet Grounded ESD Protection อุปกรณ์ป้องกันความเสียหายจากประจุไฟฟ้า, ไฟกระชาก, ESD, ฟ้าผ่า กับระบบเครือข่ายผ่านสาย Lan (UTP/STP) ที่เกิดขึ้นจาก Access Point หรือสาย Lan จากภายนอกอาคารมายังอุปกรณ์ที่อยู่ภายในอาคาร รองรับความเร็ว Gigabit ควรต่อ Ground ให้ได้คุณภาพ เพื่อให้ได้ประสิทธิภาพในการป้องกันที่สูงสุด |
Dimensions |
91 x 61 x 32.5 mm |
Weight |
80 g |
Interface Connections |

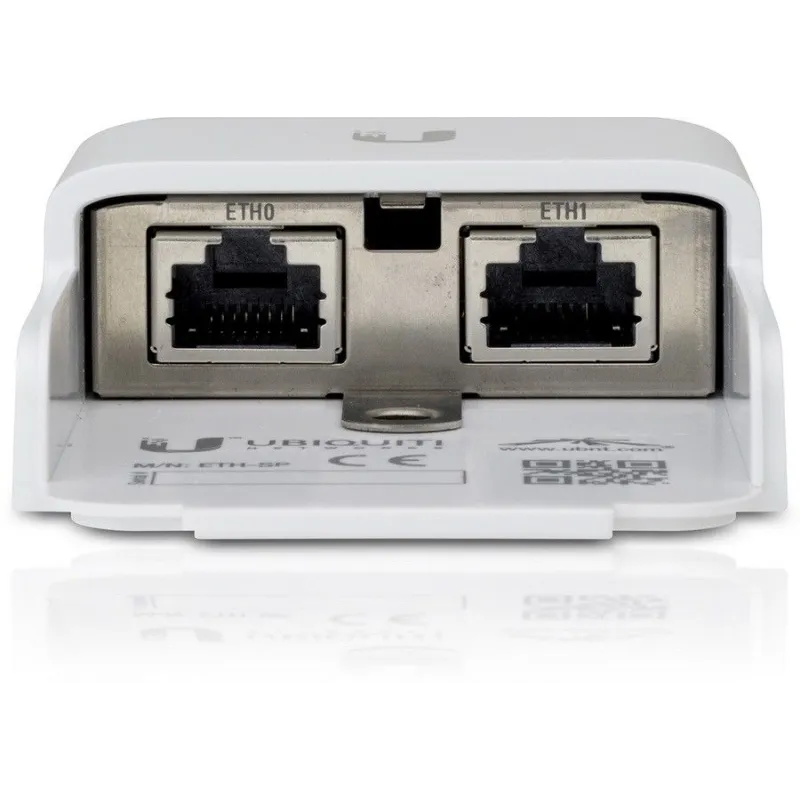

(2) RJ45 Female Connectors |
ESD/EMP Protection |
Absorbing Transient Current with Response to |
DC Spark-Over Voltage |
90V @ 100V/s |
Maximum Impulse Spark-Over Voltage |
700V @ 1kV/μs |
Discharge Current |
10kA+ |
Maximum Insulation Resistance |
1G ohm @ 50V |
Maximum Capacitance |
1.0 pF @ 1 MHz |
Data Line Protection |
RJ45 10/100/1000 Ethernet |
IEEE 802.3af PoE Support |
Yes |
Shock and Vibration Certification |
ETSI300-019-1.4 Standard |
Operating Temperature |
-30 to 65° C |
Operating Humidity |
10 to 90% Noncondensing |
รับประกัน |
1 ปี |
|
