Ubiquiti NANO Switch N-SW Outdoor 4-Port PoE Passthrough Switch

Ubiquiti NANO Switch N-SW Product Specification

Overview

Ubiquiti NANO Switch N-SW Outdoor 4-Port PoE Passthrough Switch

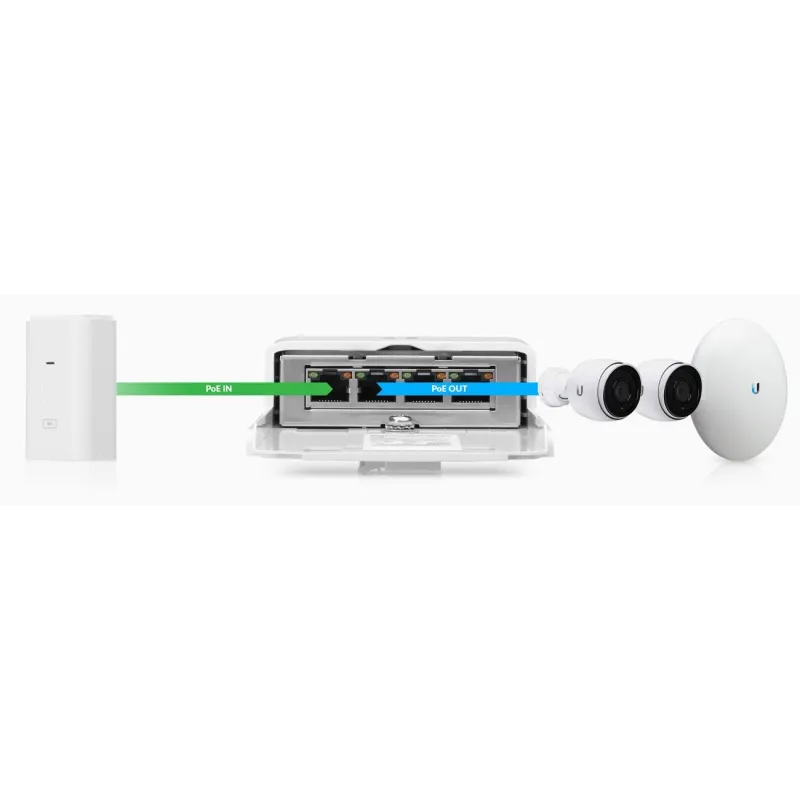

1 Port POE In /3 Port POE Out สำหรับจ่ายไฟให้อุปกรณ์ Ubiquiti ที่รองรับ POE Passive 24VDC

Dimensions

196.4 x 93.5 x 32.4 mm (7.73 x 3.68 x 1.28")

Weight

271 g (9.6 oz)

Enclosure Characteristics

White Polycarbonate

Total Non-Blocking Line Rate

4 Gbps

Typical Power Consumption

1.5W

Max. Power Consumption

30W

Power Method

Passive 24V, 2-Pair PoE In

Power Supply

POE-24-30W-G-W PoE Adapter (Not Included)

LEDs

Speed/Link/Activity (All Ports)

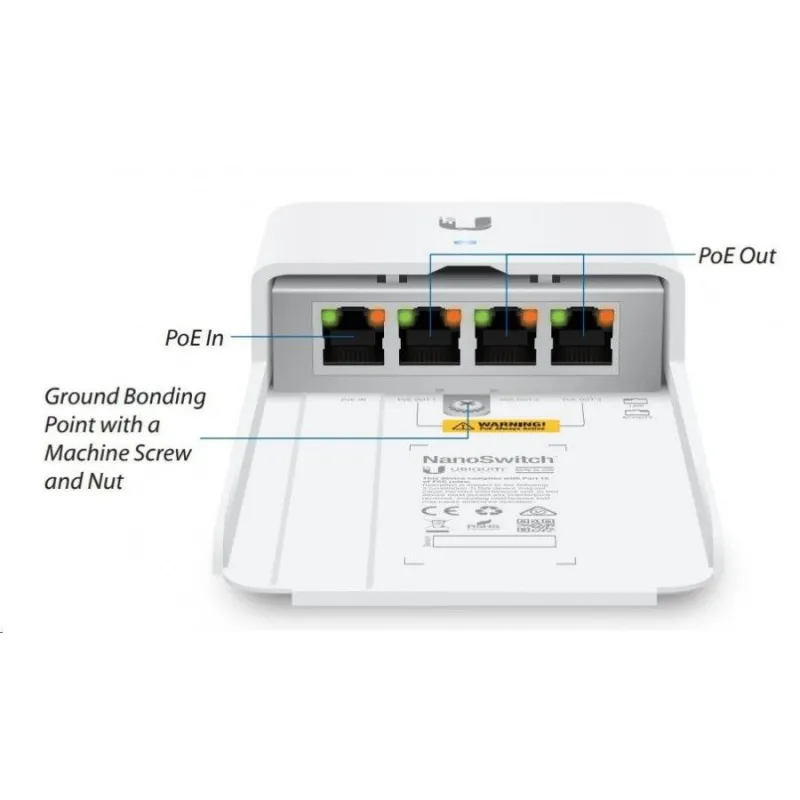

Networking Interfaces

(4) 10/100/1000 Mbps RJ45 Ports

PoE Interfaces

Passive 24V, 2-Pair PoE In

Total Passive PoE Max. Wattage

24V, 2-Pair, 1A for 3 Ports (30W)

Passive PoE Max. Wattage per Port

24V, 2-Pair, 1A per Port (24W)

Passive PoE Voltage Range

21.6 - 30V

ESD/EMP Protection

Air: ± 24 kV, Contact: ± 24 kV

Shock and Vibration

ETSI300-019-1.4 Standard

Operating Temperature

-30 to 70° C (-22 to 158° F)

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC

ประกัน

1 ปี
