งานติดตั้งระบบ Network, WIFI Hotspot
แบรนด์: Ubiquiti
งานติดตั้งระบบ Network, WIFI Hotspot
Support / ติดตั้งด้วยทีมงาน Certificate
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
Click ต้องการใบเสนอราคา
Ubiquiti Nano Station 5AC Loco (NS-5ACL) Datasheet
Ubiquiti Nano Station 5AC (NS-5AC) Quick Guide
airOS V9 User Guide
Product Specification | |
Overview | Ubiquiti NanoStation 5AC Loco NS-5ACL Wireless Access Point มาตรฐาน AC 5GHz ความเร็ว 450Mbps เสา 13dBi แบบทิศทาง 45 องศา เหมาะสำหรับทำระบบ Point To Multi-Point, Point To Point |
Dimensions | 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33") |
Weight | 180 g (6.35 oz) |
Power Supply | 24V, 0.5A Gigabit PoE Supply (ไม่มี POE ในชุด) |
Max. Power Consumption | 8.5W |
Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
Gain | 13 dBi |
Networking Interface | (1) 10/100/1000 Mbps Ethernet Ports |
Channel Bandwidths | 10/20/30/40/50/60/80 MHz |
Processor Specs | Atheros MIPS 74Kc, 560 MHz |
Memory | 64 MB DDR2 |
Cross-pol Isolation | 20 dB Minimum |
Max. VSWR | 1.8:1 |

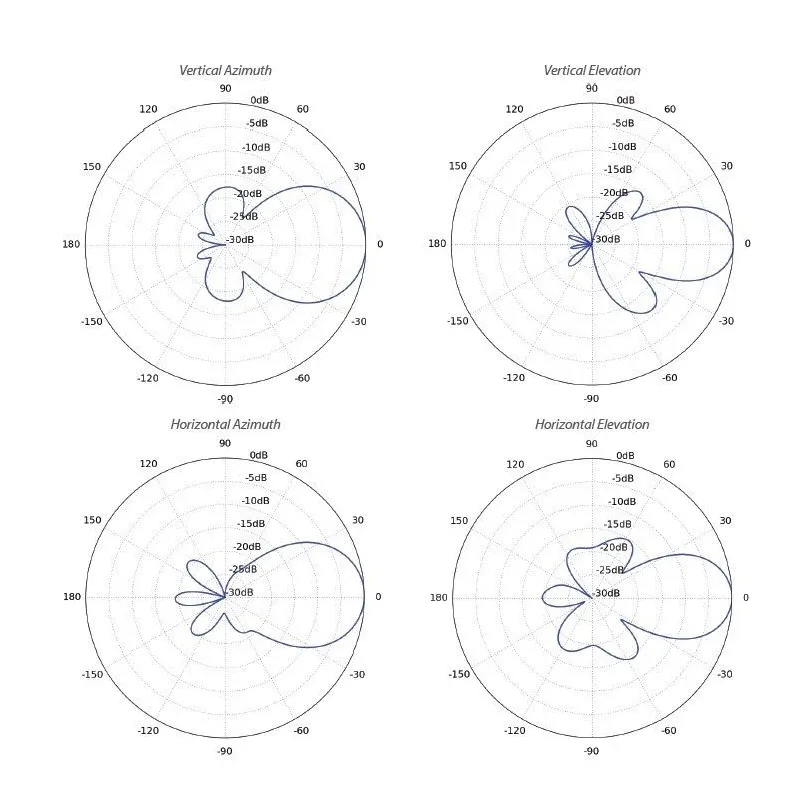

Beamwidth | 45? (H-pol) / 45? (V-pol) / 45? (Elevation) |
Polarization | Dual Linear |
Enclosure | UV Resistant Polycarbonate |
LEDs | (1) Power |
Mounting | Pole-Mount (Kit Included) |
Operating Temperature | -40 to 70? C (-40 to 158? F) |
ESD/EMP Protection | ?24kV Contact/Air |
Warranty | 1 ปี |
