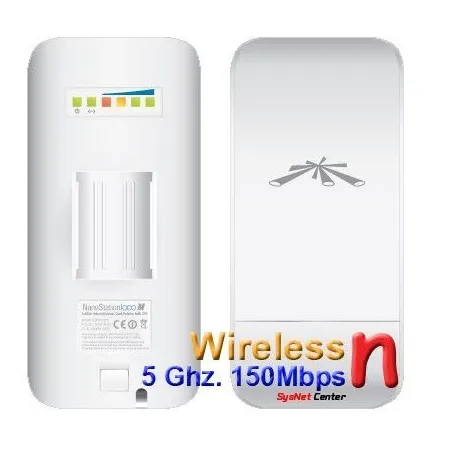

Ubiquiti NanoStation Loco M5 Access Point Outdoor 5GHz 150Mbps พร้อม POE ในชุด
  • Ubiquiti NanoStation Loco M5 Access Point Outdoor 5GHz 150Mbps พร้อม POE ในชุด
  • Ubiquiti NanoStation Loco M5 Access Point Outdoor 5GHz 150Mbps พร้อม POE ในชุด

Ubiquiti NanoStation Loco M5 Access Point Outdoor 5GHz 150Mbps พร้อม POE ในชุด

Ubiquiti NanoStation LocoM5 Access Point Outdoor 5GHz 150Mbps เสาอากาศ 13 dBi x 2 ติดตั้งภายนอกอาคาร กันแดด กันฝน พร้อม PoE สำหรับการเชื่อมต่อเครือข่ายไร้สายระยะไกล ไม่เกิน 1Km

฿3,190.00
ยังไม่ได้รวมภาษี
จำนวน
Out-of-Stock

รายละเอียด

Ubiquiti NanoStation Loco M5 (NSM Loco M5) Datasheet
airOS User Guide
airView Spectrum Analyzer Technology Datasheet
airMAX TDMA System Technology Datasheet
Config อุปกรณ์ NanoStation M5 Mode AP/WDS และ Station/WDS พร้อมผลทดสอบ
ติดตั้ง Ubiquiti NanoStation M5 งาน Resort เขาใหญ่
รูปถ่ายการติดตั้งอุปกรณ์ของ UBiQuiTi
การ Config อุปกรณ์ Ubiquiti AirMax ใน Mode Point To Point
การ Config อุปกรณ์ Ubiquiti AirMax ใน Mode Access Point

Product Specification

Overview

Ubiquiti NanoStation LocoM5 อุปกรณ์สื่อสารด้วยระบบไร้สาย แบบติดตั้งภายนอกอาคาร ย่านความถี่ 5 GHz เพื่อหลีกเลี่ยงย่านความถี่ 2.4GHz ความเร็ว 150 Mbps มาตรฐาน 802.11a/n เสาอากาศ 13dBi แบบ Dual-Pole กำลังส่ง 200 mW (23 dBm) เหมาะสำหรับการเชื่อมต่อระหว่างอาคารระยะไกล ไม่ควรเกิน 1 กิโลเมตร.ในที่โล่ง ราคาประหยัด แต่ได้ประสิทธิภาพสูง

Chipset

Atheros MIPS 24KC, 400MHz

Memory

32MB SDRAM, 8MB Flash



พร้อมด้วย Passive PoE 24VDC ระบบฝากไฟไปกับสาย Lan ไม่ต้องเดินไฟ AC 220V ป้องกันฟ้าผ่าและไฟกระชากได้ในตัว(ต้องใช้ร่วมกับสายนำสัญญาณแบบมี Shield และต้องต่อหลักดิน)

Mode การทำงาน

Access Point-Bridge/ Access Point-Router
Station-Bridge/ Station-Router
WDS Bridging or Routing

Operating Frequency

5470 - 5825 MHz

กำลังส่ง

กำลังส่งสูงถึง 200 mW ระยะไกลถึง 3 Km.
เป็นระยะที่ได้จากทางผู้ผลิต ใช้งานจริงไม่ควรเกิน 1Km

Antena

เสาอากาศภายใน 13 dBi x 2 ฝังภายในอุปกรณ์ (MIMO)

Beamwidth

45 deg. (H-pol) / 45 deg (V-pol) / 45 deg (Elevation)

LAN Port

1 Port RJ-45 10/100 Mbps, Auto MID/MIDX

Security

Wireless Security WEP, WPA and WPA2 Encryption



Wireless Filters, MAC Address Filtering, SSID Broadcast enable/disable



Web Based Management, Port Forwarding

Tools

Ping watch dog, Antenna Alignment Tool, Throughput test utility



Ping, Traceroute Customizable Logo



Firmware recovery TFTP

วัสดุภายนอก

Outdoor UV Stabalized Plastic กันน้ำ กันฝนได้ 100%

Operating Temperature

-30C to 75C

Connector Type

-

Dimension

163 x 31 x 80 mm

Weight

0.18 Kg

Power

POE ขนาด 24V 0.5A. ในชุด

Warranty

1 ปี, POE 3 เดือน



ubiquiti loco m

ubiquiti nano locom

Ubiquiti NanoStation Loco

Ubiquiti NanoStation Loco

Ubiquiti NanoStation Loco

ubiquiti nano locom

รายละเอียดสินค้า
0

ข้อมูลสินค้า

ลักษณะงาน Wireless
เชื่อมเครือข่ายระยะไกล
ความเร็ว มาตรฐาน WIFI
WIFI-4 (n) 300Mbps
ย่านความถี่
5GHz
รองรับติดตั้งนอกอาคาร
Yes
Mode Repeate/WDS/MESH
WDS
รองรับ POE
Yes
