Ubiquiti POE Adapter Datasheet
|
Product Specification
|
|
Overview
|

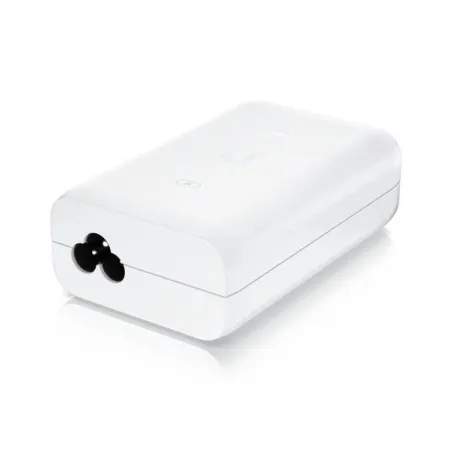

Ubiquiti U-POE-at PoE+ Injector Port Gigabit มาตรฐาน 802.3af/at กำลังไฟ 30W ใช้ร่วมกับอุปกรณ์ Network เช่น Access Point, IP-Camera ที่ต้องการไฟ POE มาตรฐาน 802.3at (30W) และ 802.3af (15W)
|
|
Dimensions
|
93 x 62 x 35 mm (3.66 x 2.44 x 1.38")
|
|
Weight
|
156 g (5.5 oz)
|
|
Output Voltage
|
48VDC @ 0.65A
|
|
LAN Activity Indicator
|
No
|
|
Gigabit LAN Port
|
Yes
|
|
Remote Reset Capability
|
Yes
|
|
Reset Button
|
No
|
|
Rated Voltage
|
100-240VAC @ 50/60Hz
|
|
Input Current
|
0.75A@90VAC
|
|
Inrush Current
|
<100A Peak @230VAC, 26℃
|
|
Efficiency
|
87%
|
|
Output Ripple
|
1% Max.
|
|
Switching Frequency
|
70 kHz Max.
|
|
Line Regulation
|
≤ 3%
|
|
Load Regulation
|
≤ 5%
|
|
2-Pair Powering
|
Pins 4, 5 (+) and Pins 7, 8 (-)
|
|
4-Pair Powering
|
-
|
|
Operating Temperature
|
0 to 40° C (32 to 104° F)
|
|
Storage Temperature
|
-30 to 70°C (-22 to 158° F)
|
|
Operating Humidity
|
35 to 90% Noncondensing
|
|
AC Connector
|
IEC-320 C6
|
|

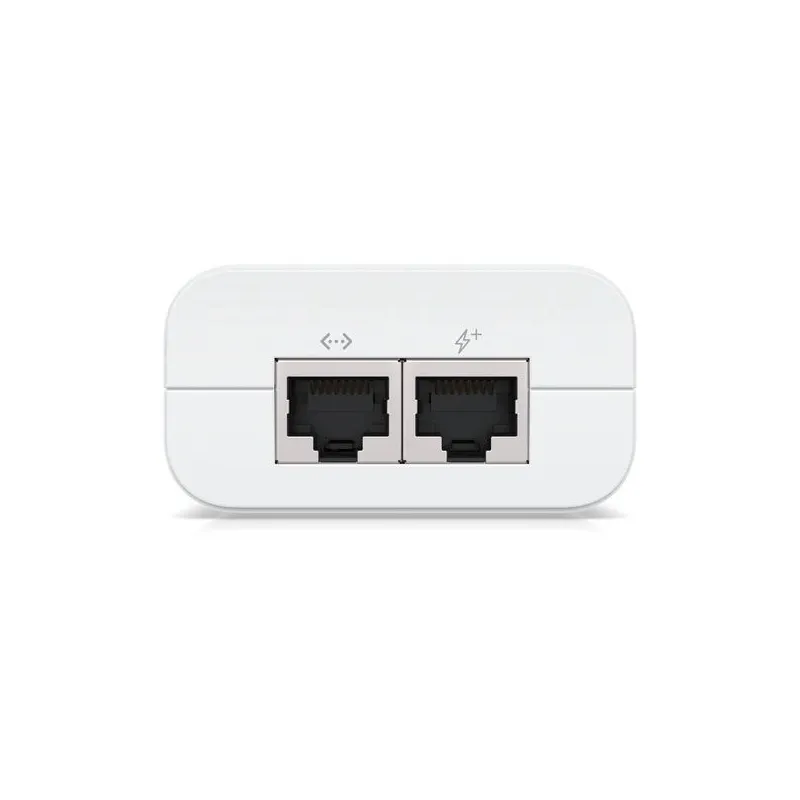

Data IN / POE
|
RJ45 Shielded Socket
|
|
Surge Protection
|
Difference and Common Mode
|
|
Clamping Protection
|
11V Data, 60V Power
|
|
Max. Surge Discharge
|
1500A (8/20 μs) Power
|
|
Peak Pulse Current
|
36A (10/1000 μs) Data
|
|
Shunt Capacitance
|
<5 pF data
|
|
Response Time
|
<1 ns
|
|
Certifications
|
CE, FCC, IC, UL
|
|
Warranty
|
3 ปี
|
|
|
