Product Specification
|
|
Overview
|

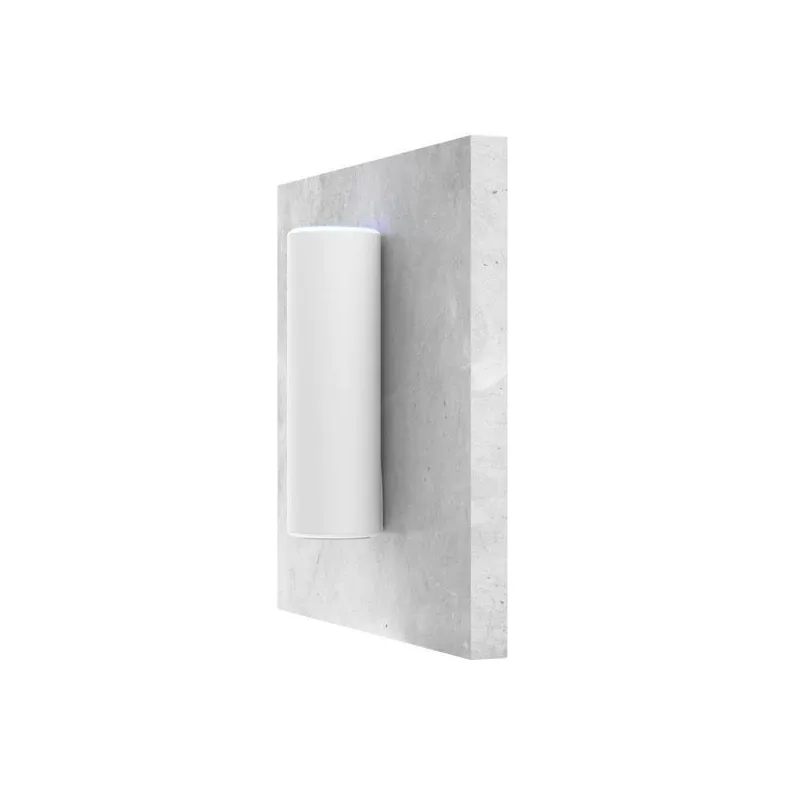

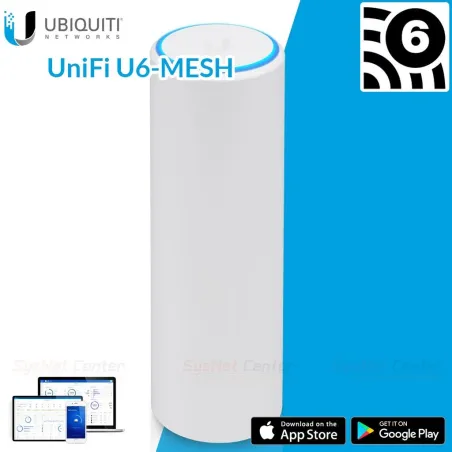

Ubiquiti U6-Mesh Access Point WiFi 6 Mesh 802.11ax 4x4 MU-MIMO รองรับ Channel-Width 160MHz bandwidth, ความเร็วสูงสุด 5.3Gbps พร้อม POE ในชุด
-
High-efficiency 4x4 WiFi 6 (802.11ax)
-
5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
-
2.4 GHz (2x2 MU-MIMO and OFDMA) band with a 573.5 throughput rate
-
Operates at full 4x4 MIMO with 160 MHz bandwidth
-
Powered with 802.3af PoE (PoE adapter included)
|
|
Dimensions
|
Ø48.5 x 159.5 mm (Ø1.9 x 6.28")
|
|
Weight
|
400 g (0.88 lb)
|
|
Enclosure material
|
Plastic, aluminum
|
|
Mounting material
|
Plastic
|
|
Weatherproofing
|
IPX5
|
|
Management interfaces
|
Ethernet
Bluetooth
|
|
Networking interface
|

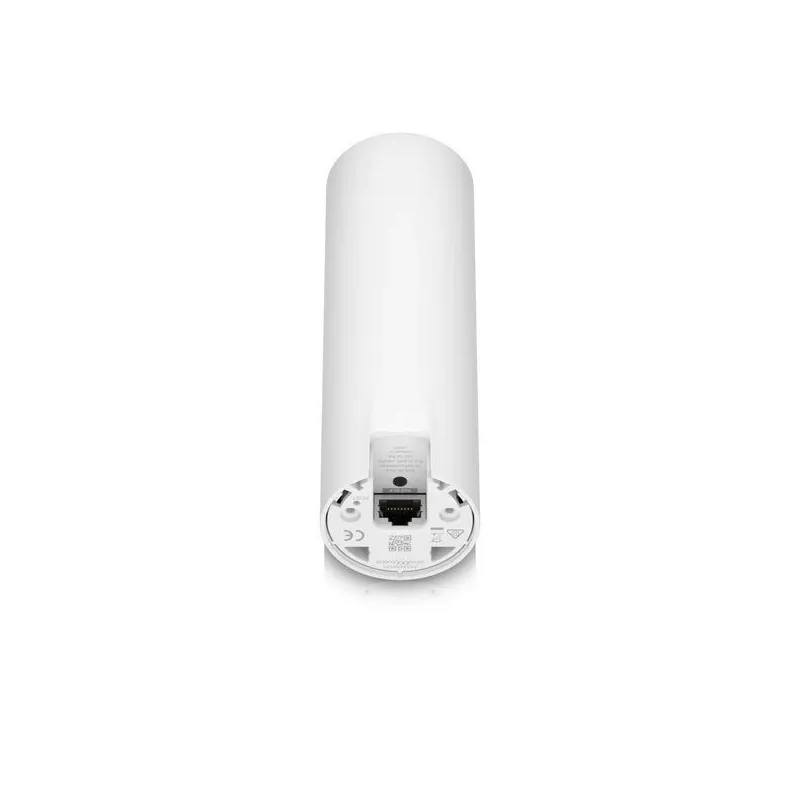

(1) GbE RJ45 port
|
|
Button
|
Factory reset
|
|
LEDs
|
White/blue
*Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes.
|
|
Power method
|
802.3af PoE
|
|
Power supply
|
UniFi PoE switch
48V, 0.32A PoE adapter (included)
|
|
Supported voltage range
|
44 to 57VDC
|
|
Max. power consumption
|
11.4W
|
|
Max. TX power
|
2.4GHz: 22 dBm
5GHz: 26 dBm
|
|
MIMO
|
|
|
Throughput rate
|
2.4GHz: 573.5 Mbps
5GHz: 4.8 Gbps
|
|
Antenna gain
|
2.4GHz: 3 dBi
5GHz: 5 dBi
|
|
Mounting
|
Wall, desktop, pole mount(included)
Ceiling mount (optional)
|
|
Operating temperature
|
-30 to 60° C (-22 to 140° F)
|
|
Operating humidity
|
5 - 95% noncondensing
|
|
Certifications
|
CE, FCC, IC
|
|
WiFi standards
|
802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
|
|
Wireless security
|
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
|
|
BSSID
|
8 per radio
|
|
VLAN
|
802.1Q
|
|
Advanced QoS
|
Per-user rate limiting
|
|
Guest traffic isolation
|
Supported
|
|
Concurrent clients
|
300+
|
|
Zero wait DFS
|
Yes*
*Supported with upcoming firmware versions
|
|
802.11a
|
6, 9, 12, 18, 24, 36, 48, 54 Mbps
|
|
802.11b
|
1, 2, 5.5, 11 Mbps
|
|
802.11g
|
6, 9, 12, 18, 24, 36, 48, 54 Mbps
|
|
802.11n (WiFi 4)
|
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
|
|
802.11ac (WiFi 5)
|
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
|
|
802.11ax (WiFi 6)
|
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
|
|
รับประกัน
|
2 ปี
|
