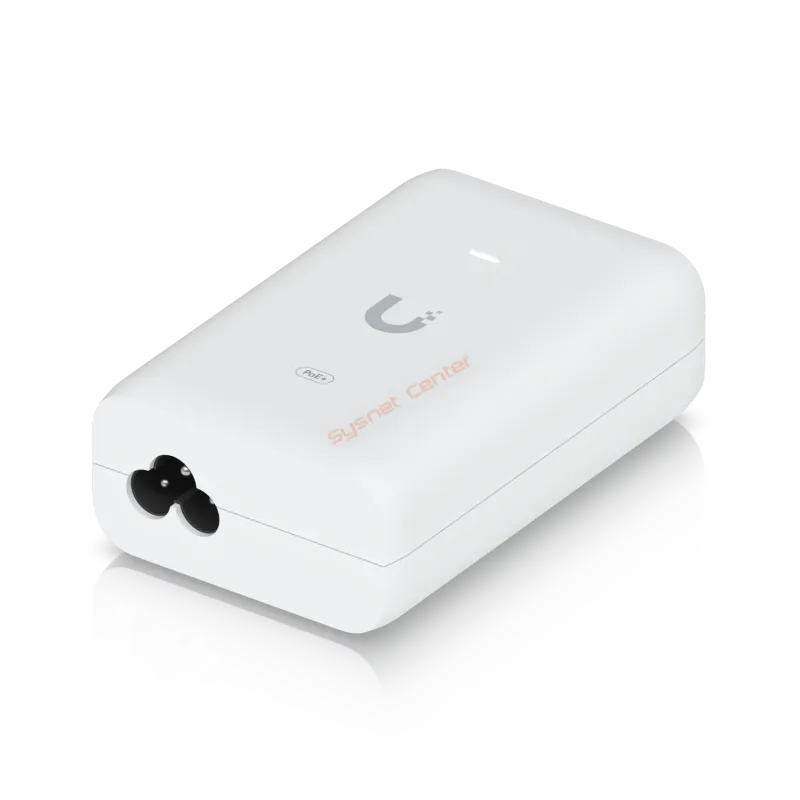

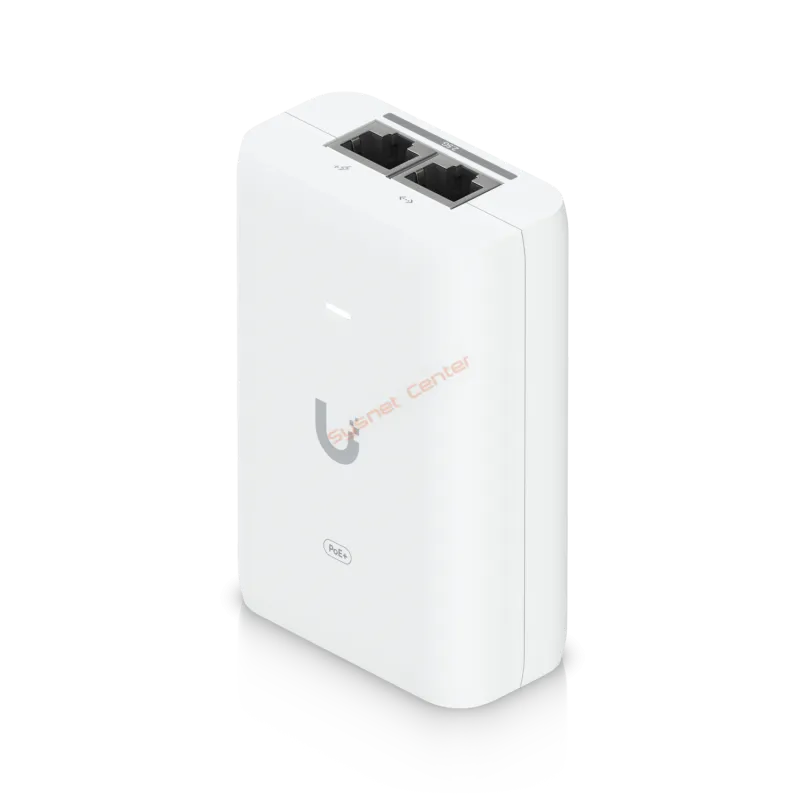

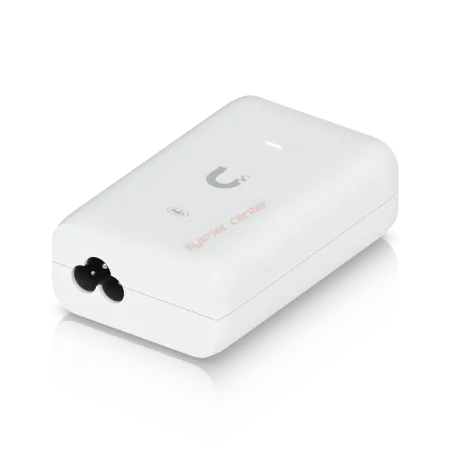

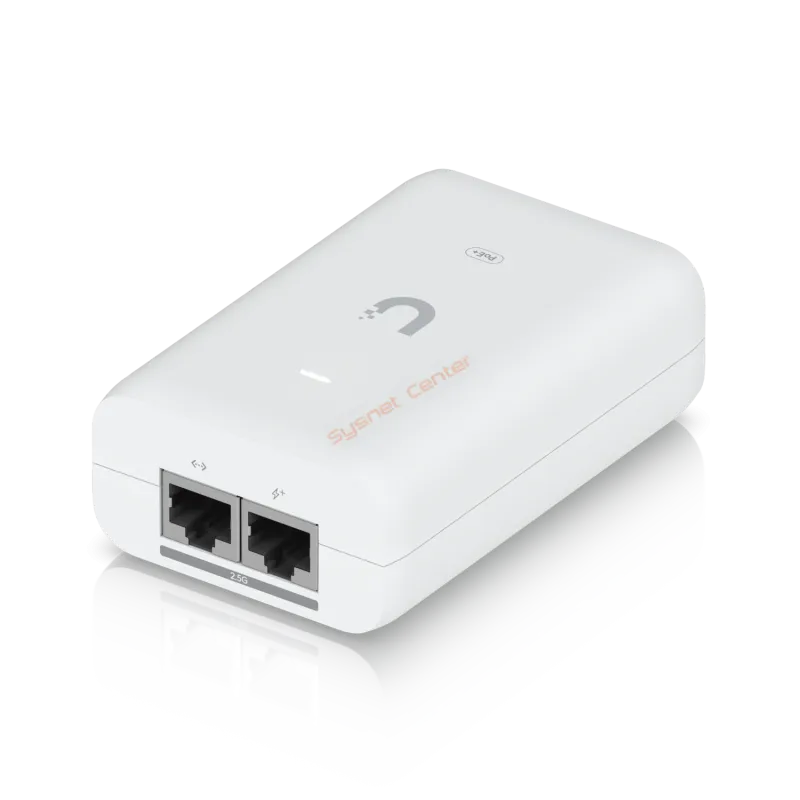

Ubiquiti UACC-PoE+-2.5G Injector Port 2.5G 802.3af/at กำลังไฟ 30W

Product Specification

Overview

Ubiquiti UACC-POE+-2.5G PoE+ Injector Port 2.5G มาตรฐาน 802.3af/at กำลังไฟ 30W ใช้ร่วมกับอุปกรณ์ Network เช่น Access Point, IP-Camera ที่ต้องการไฟ POE มาตรฐาน 802.3at (30W) และ 802.3af (15W)

Dimensions

93 x 62 x 35 mm (3.7 x 2.4 x 1.4")

Weight

156 g (5.5 oz)

Output Voltage

48VDC @ 0.65A

LAN Activity Indicator

No

Gigabit & 2.5G LAN Port

Yes

Remote Reset Capability

Yes

Reset Button

No

Rated Voltage

100-240VAC @ 50/60Hz

Input Current

0.75A@90VAC

Inrush Current

<100A Peak @230VAC, 26℃

Efficiency

87%

Output Ripple

1% Max.

Switching Frequency

70 kHz Max.

Line Regulation

≤ 1%

Load Regulation

≤ 3%

2-Pair Powering

Pins 4, 5 (+) and Pins 7, 8 (-)

4-Pair Powering

-

Operating Temperature

0 to 40° C (32 to 104° F)

Storage Temperature

-30 to 70°C (-22 to 158° F)

Operating Humidity

35 to 90% Noncondensing

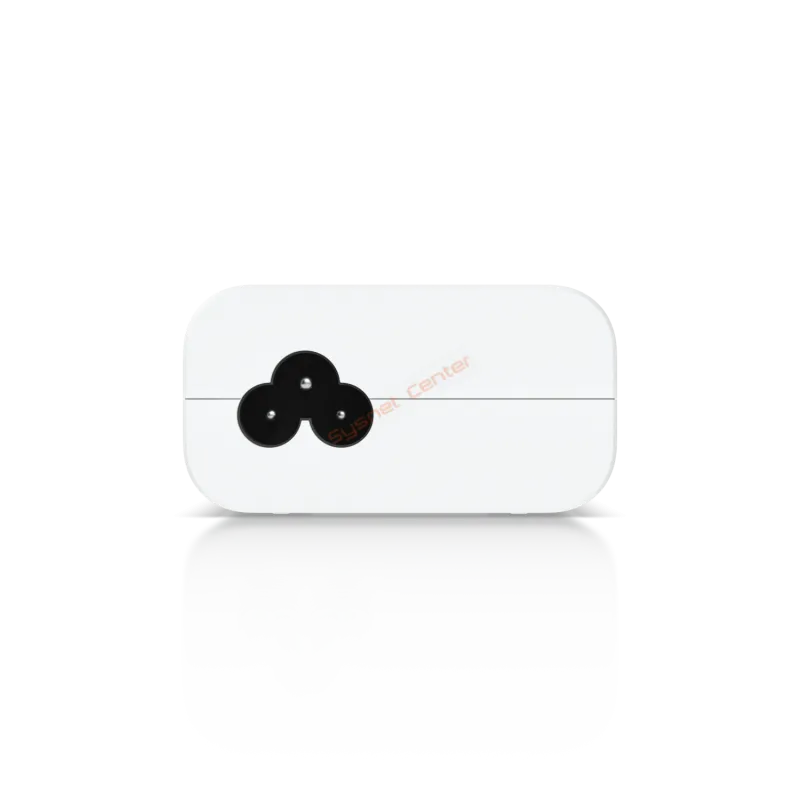

AC Connector

IEC-320 C6

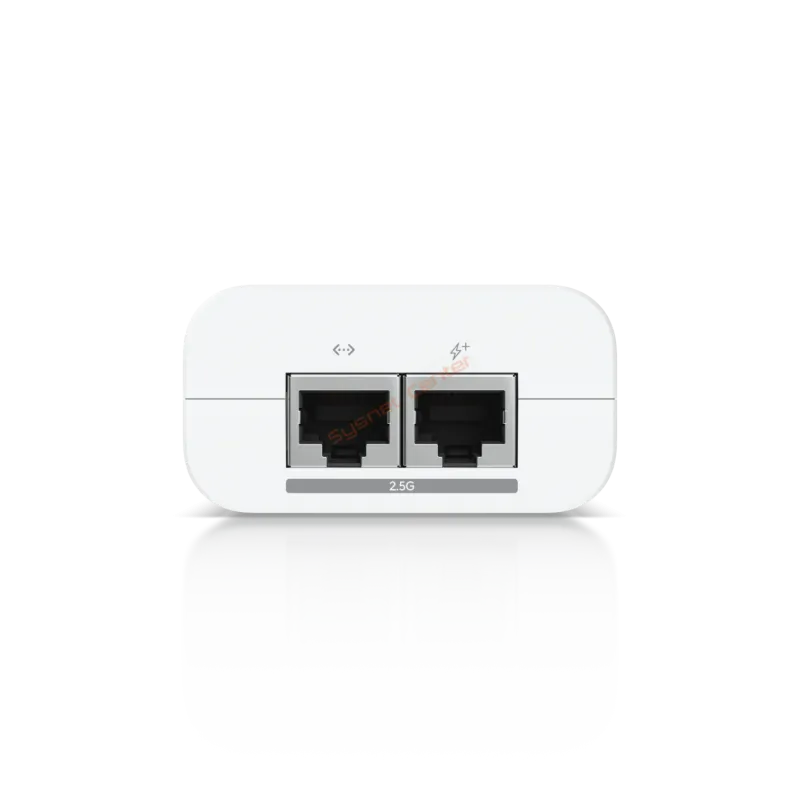

Data IN / POE

RJ45 Shielded Socket

Surge Protection

Difference and Common Mode

Clamping Protection

11V Data, 60V Power

Max. Surge Discharge

1500A (8/20 μs) Power

Peak Pulse Current

36A (10/1000 μs) Data

Shunt Capacitance

<5 pF data

Response Time

<1 ns

Certifications

CE, FCC, IC, UL, UKCA, KC, CCC, RoHS

Warranty

3 ปี
