Product Specification

Overview

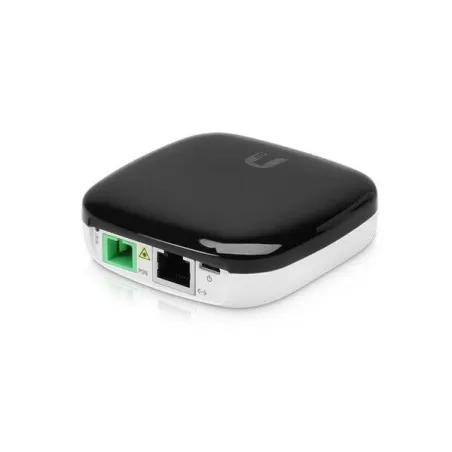

Ubiquiti UF-LOCO UISP Fiber LOCO customer-premises equipment (CPE) รองรับความเร็ว 2.4/1.2Gbps , 1 Port Lan Gigabit

Dimensions

76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 1.04")

Weight

77 g (2.72 oz)

Networking Interfaces

(1) SC/APC, GPON WAN
(1) RJ45, Ethernet LAN

Networking Interface Speeds

(1) GPON WAN, ITU G.984: 2.488 Gbps Downstream / 1.244 Gbps Upstream
(1) GbE LAN: 10/100/1000 Mbps

Management Interface

In-Band Ethernet
PON

Normal Optical Power Range

TX (Class B+): 1.5 to 5 dBm
RX: -28 to -8 dBm

Power Method

Micro-USB: 5V, 1A
24V Passive PoE (Pins +4, 5; -7, 8)

Power Supply

Micro-USB Power Adapter*: 5V, 1A
*Included only in the single-pack of the UF-LOCO

Max. Power Consumption

3.5W

Supported Voltage Range

4.7 to 5.3V

Processor Specs

MIPS-32, 240 MHz

Memory Information

128 MB DDR3

Button

(1) Reset

Operating Temperature

-10 to 45° C (14 to 113° F)

Operating Humidity

10 to 90% Noncondensing

Certifications

CE, FCC, IC

ประกัน

1 ปี
