Product Specification

Overview

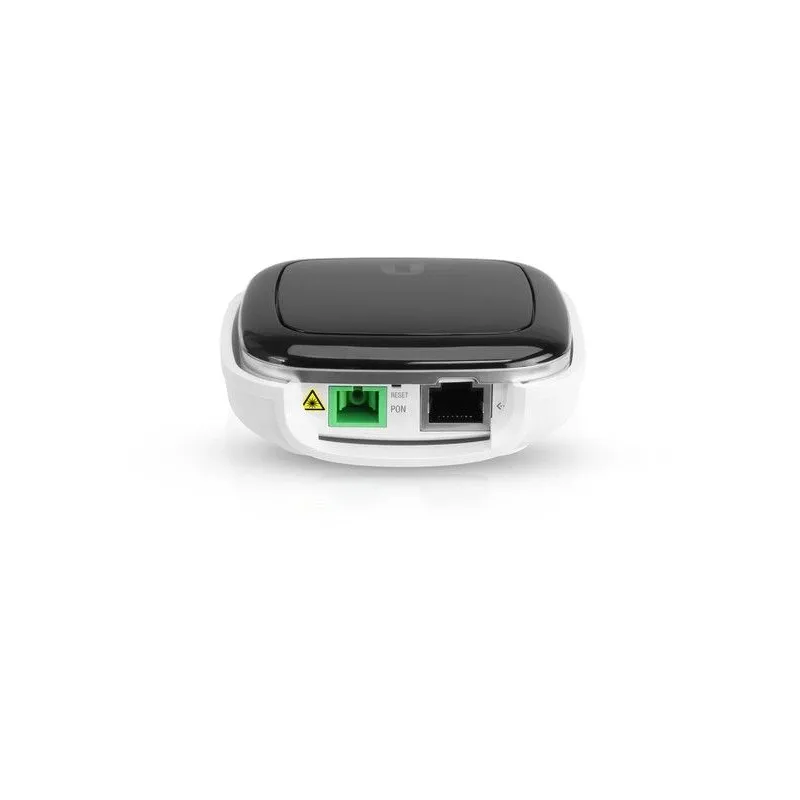

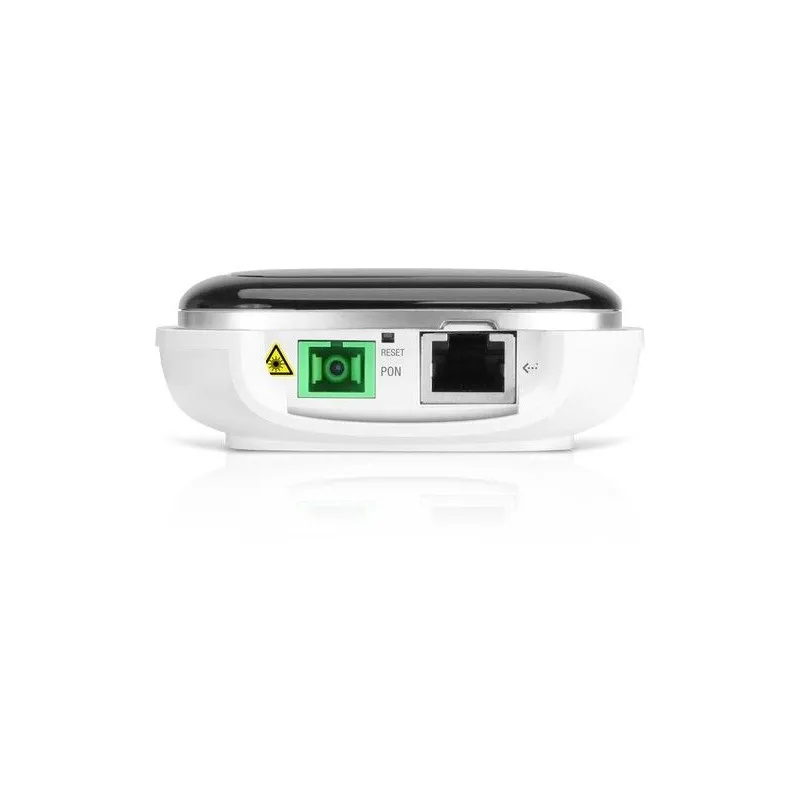

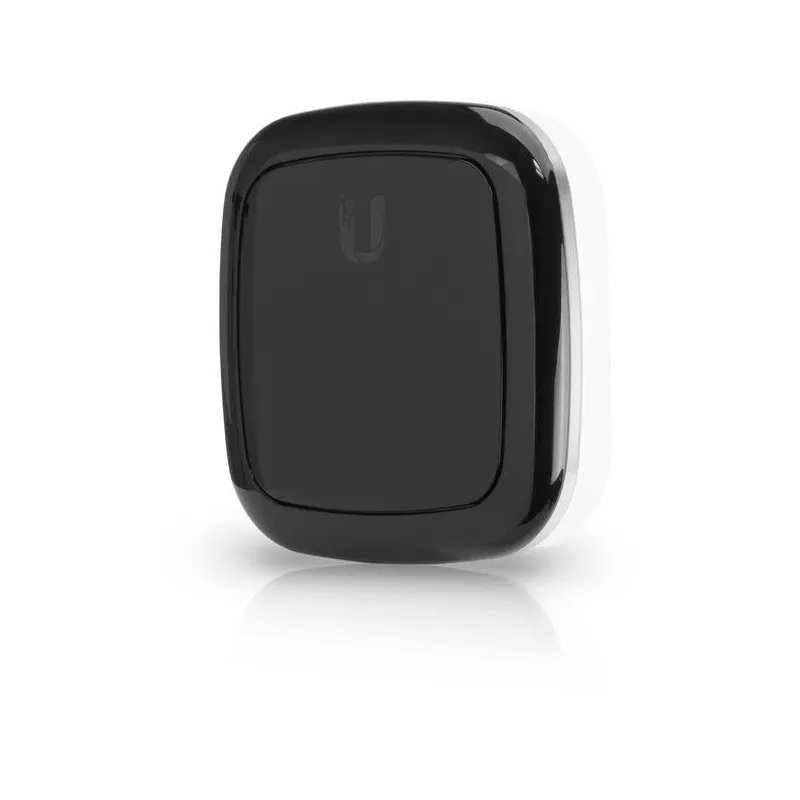

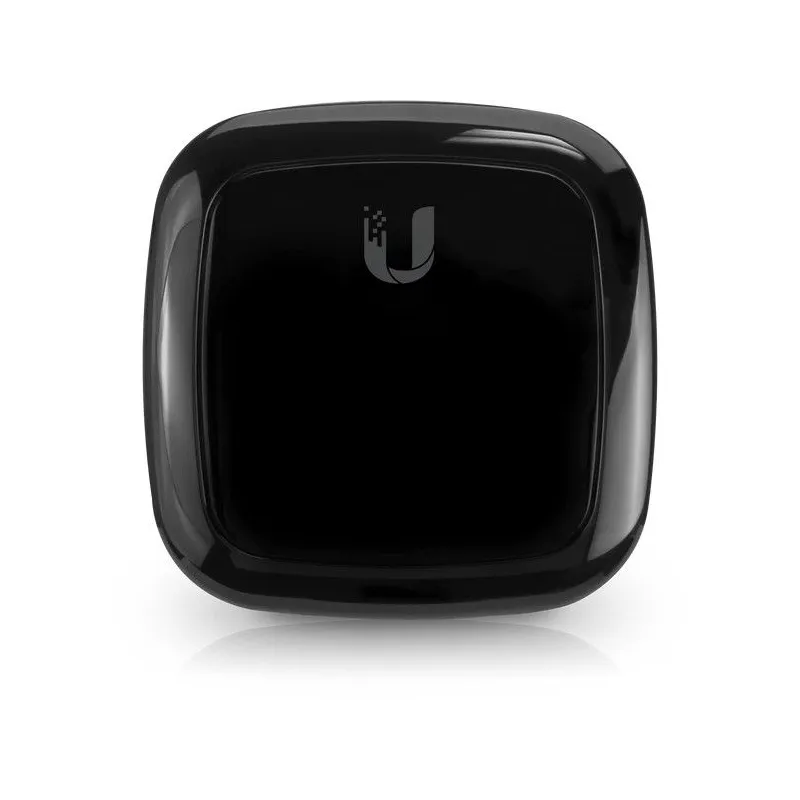

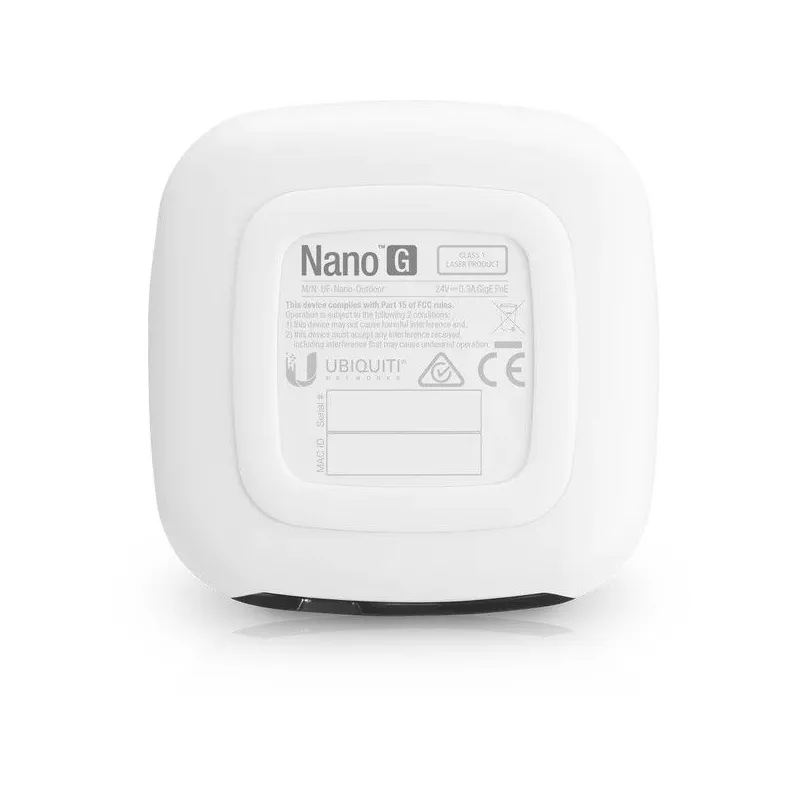

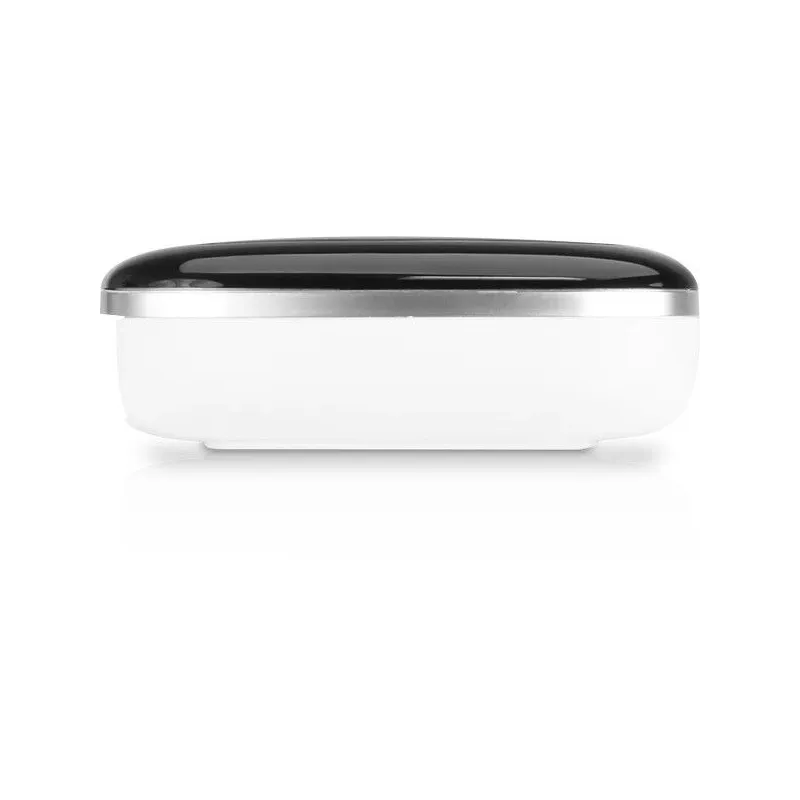

Ubiquiti UF-Nano UISP Fiber NanoG GPON customer-premises equipment (CPE) รองรับความเร็ว 2.4/1.2Gbps , 1 Port Lan Gigabit

Dimensions

77 x 77 x 28 mm (3.03 x 3.03 x 1.1")

Weight

110 g (3.88 oz)

Networking Interfaces

(1) SC/APC, GPON WAN (1) RJ45, Ethernet LAN

Networking Interface Speeds

(1) GPON WAN, ITU G.984,
2.488 Gbps Downstream,
1.244 Gbps Upstream

(1) GbE LAN, 10/100/1000 Mbps

Management Interface

In-Band Ethernet/PON

Normal Optical Power Range

TX (Class B+): 1.5 to 5 dBm
RX: -8 to -28 dBm

Power Method

24V Passive PoE (Pins 4, 5+; 7, 8-)
Dying Gasp Support

Power Supply

PoE Adapter: 24V, 0.3A

Max. Power Consumption

7W

Supported Voltage Range

20 to 28V

Processor Specs

MIPS-32, 240 MHz

Memory Information

128 MB DDR3

Buttons

(1) Display Information
(1) Reset

Operating Temperature

-10 to 45° C (14 to 113° F)

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC

ประกัน

1 ปี
