Product Specification
|
|
Overview
|

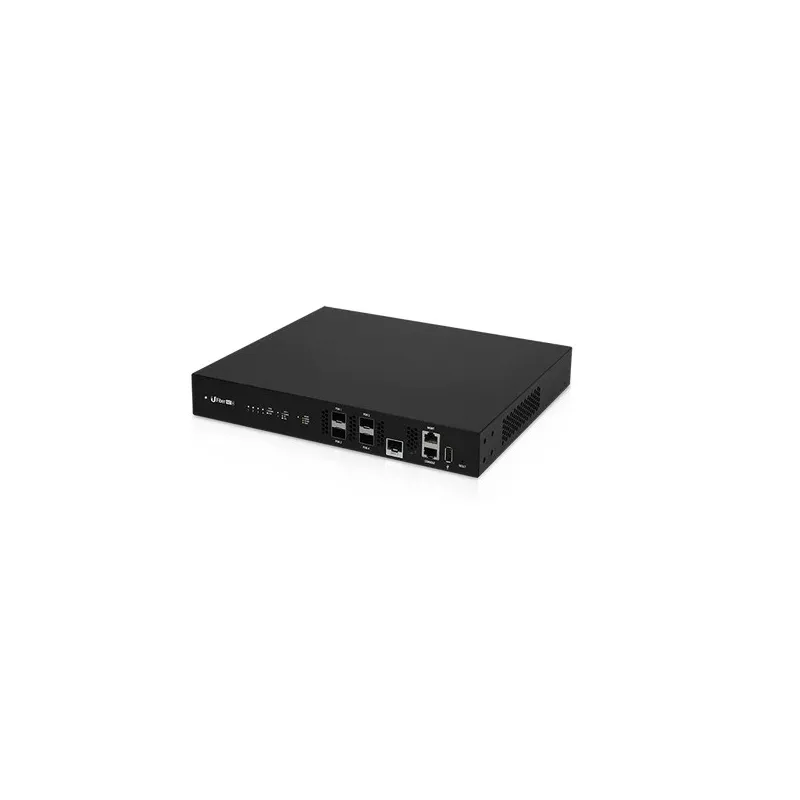

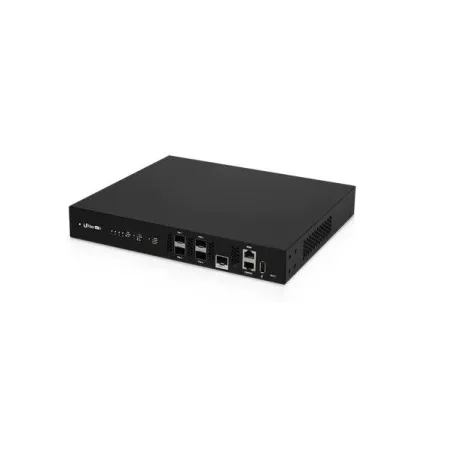

Ubiquiti UF-OLT-4 UISP Fiber OLT 4, 4 Port GPON OLT SFP, 1 Port SFP+ 10Gbps, รองรับ 512 Client (128/Port), QOS
|
|
Dimensions
|
299.8 x 258.95 x 42.55 mm
|
|
Weight
|
1930g (without hangers)

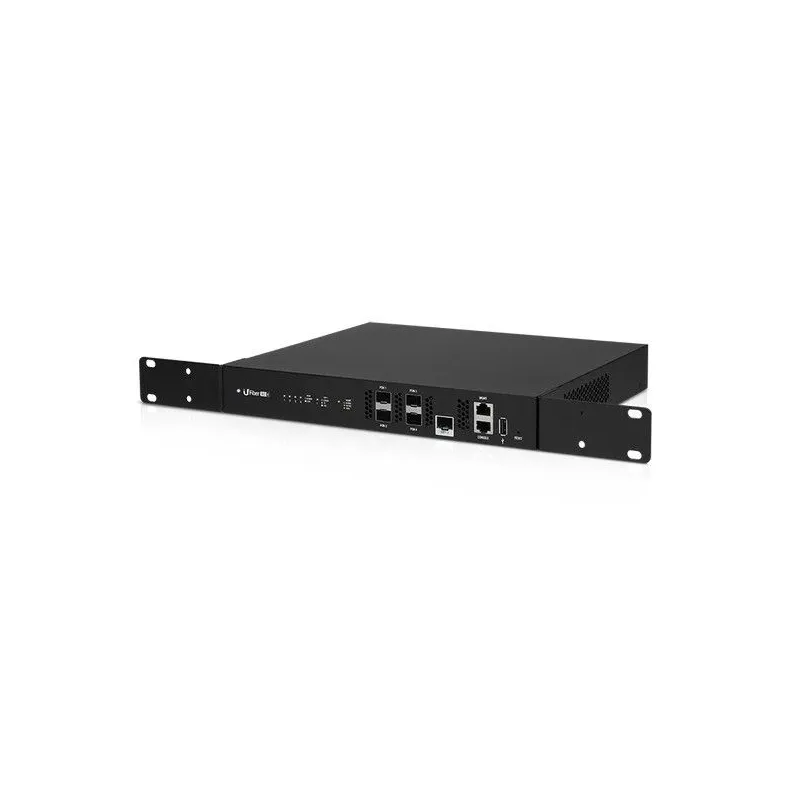

2130g (with hangers)
|
|
Enclosure Characteristics
|
SGCC steel
|
|
Hardware
|
|
Processor
|
MIPS 1004Kc 880 Mhz Dual-core
|
|
Memory
|
512 Mbyte DDR3, 512M Byte NAND
|
|
Management Interface
|
(1) Ethernet out-of-band management
(1) Ethernet in-band management
(1) RJ45 Serial Console Port
|
|
Networking Interface
|
(4) GPON OLT SFP
(1) 10 Gbps SFP+
|
|
Buttons
|
(1) Reset
|
|
LEDs/Display
|
(1) Power: Blue/White
Blinking Blue: reset to default
Steady Blue: system is booting
Steady White: service is ready
(4) GPON OLT SFP
Steady/Blinking white : GPON link/activity
(1) SFP+ Ethernet: White(10G) Green(1G), steady on after link is up, blinking while activity
(1) Ethernet RJ45 Out-of-band Management: Green(1G), steady on after link is up, blinking while activity
|
|
Power Method
|
100-240VAC/50-60 Hz universal input / 25VDC
|
|
Power Supply
|
AC/DC internal 56W DC / DC barrel jack connector
|
|
Supported Voltage Range
|
AC input: 100 to 240 VAC / 25 to 16VDC
|
|
Max. Power Consumption
|
35W (Excluding SFP modules)
|
|
Operating Temperature
|
-10 to 45°C (14 to 113°F)
|
|
Operating Humidity
|
10% to 90% Non-Condensing
|
|
Software
|
|
Mode
|
OLT 2/3 Ethernet Switch and GPON Core
|
|
Advanced QoS
|
Support 8 priority queues per user port and traffic classification
|
|
Concurrent Clients
|
512 ONUs/ONTs registered
|
|
Minimum Software Requirements
|
Any Modern Web Browser
|
|
ประกัน
|
1 ปี
|
|
|
