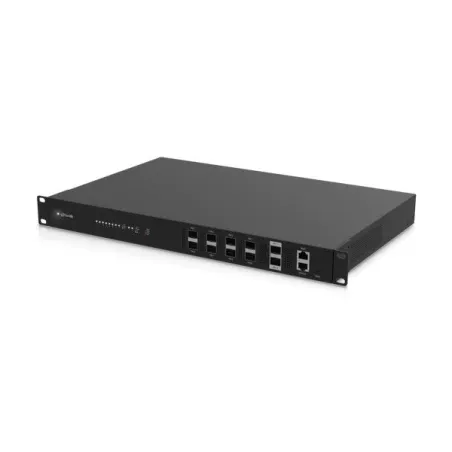

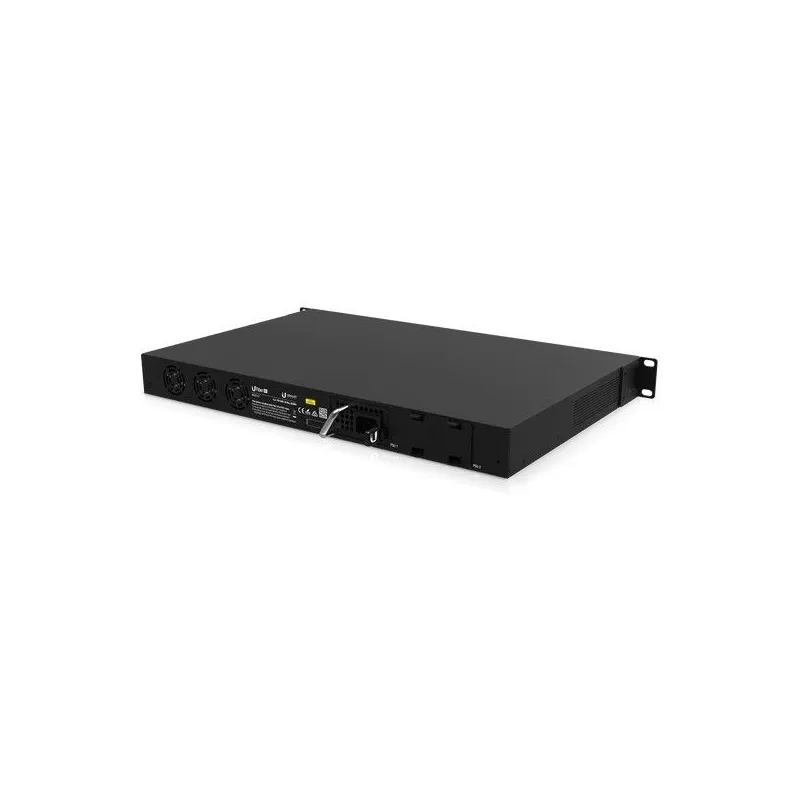

Ubiquiti UF-OLT UISP Fiber OLT, 8 Port GPON (OLT), 2 SFP+ รองรับ 1,024 Client

Product Specification

Overview

Ubiquiti UF-OLT UISP Fiber OLT, 8 Port GPON OLT SFP, 2 Port SFP+ 10Gbps, รองรับ 1,024 Client (128/Port), QOS

Dimensions

Weight

Without Mount Brackets: 4.4 kg (9.70 lb)
With Mount Brackets: 4.5 kg (9.91 lb)

Processor

MIPS 1004Kc 880 MHz Dual-Core

Data Ports Interfaces

(8) GPON Ports (2.488 Gbps TX/1.244 Gbps RX per Port)
(2) 1G/10G SFP+ Ports

Serial Console Port Interfaces

(1) RJ45 Ethernet Port
(1) RJ45 Serial Port

Max. Power Consumption

40W (Excluding SFP Transceivers)

Power Method

110 - 240VAC Modular PSU

Power Supply

(1) Hot-Swappable AC/DC 100W PSU (Included)

Supported Voltage Range

AC Input: 100 to 240VAC

Button

Reset

System Memory

512 MB DDR3, 512 MB NAND

LEDs
System
PON Data Ports
SFP+ Data Ports
RJ45 (MGMT) Port

Status
Link/Activity
Link/ActivityLink/Activity
Link/Activity

GPON SFP OLT Transceiver
(UF-GP-B+ )

Single Fiber, SM SC/UPC, 20 km,
1490 nm TX/1310 nm RX,
ITU-T G984.2 Class B+

Rackmount

Yes

Operating Temperature

-10 to 45° C (14 to 113° F)

Operating Humidity

10 - 90% Noncondensing

Certifications

CE, FCC, IC

ประกัน

1 ปี
