Product Specification

Overview

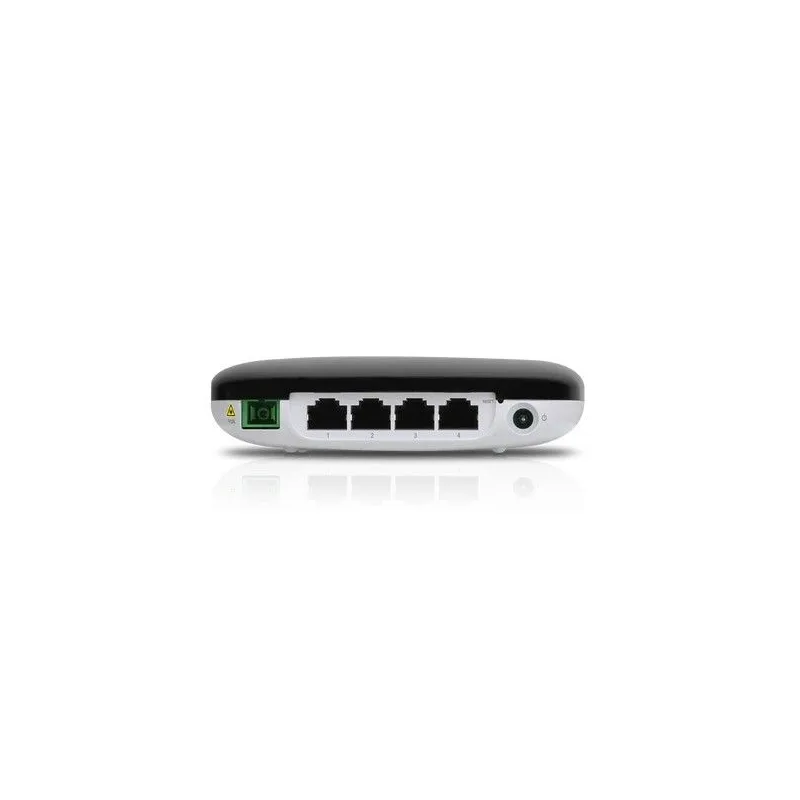

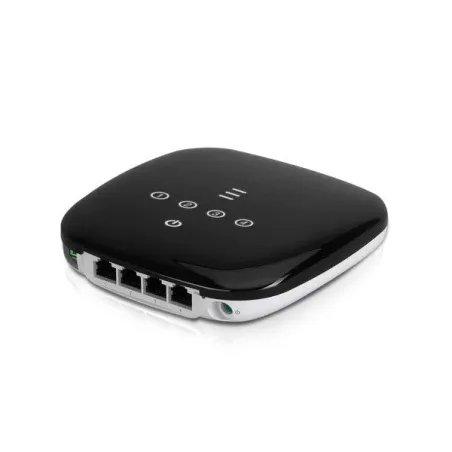

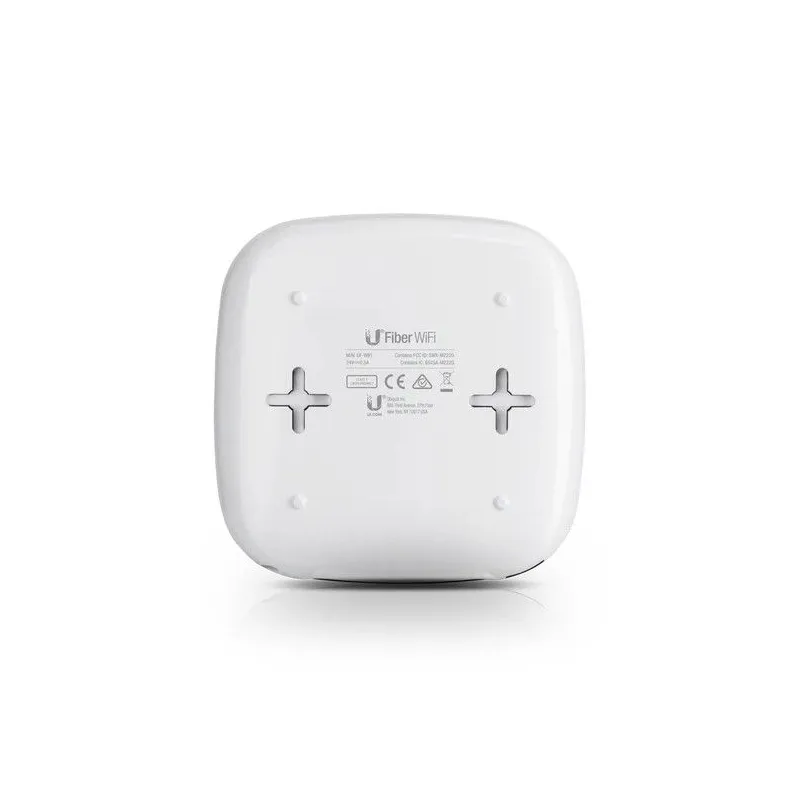

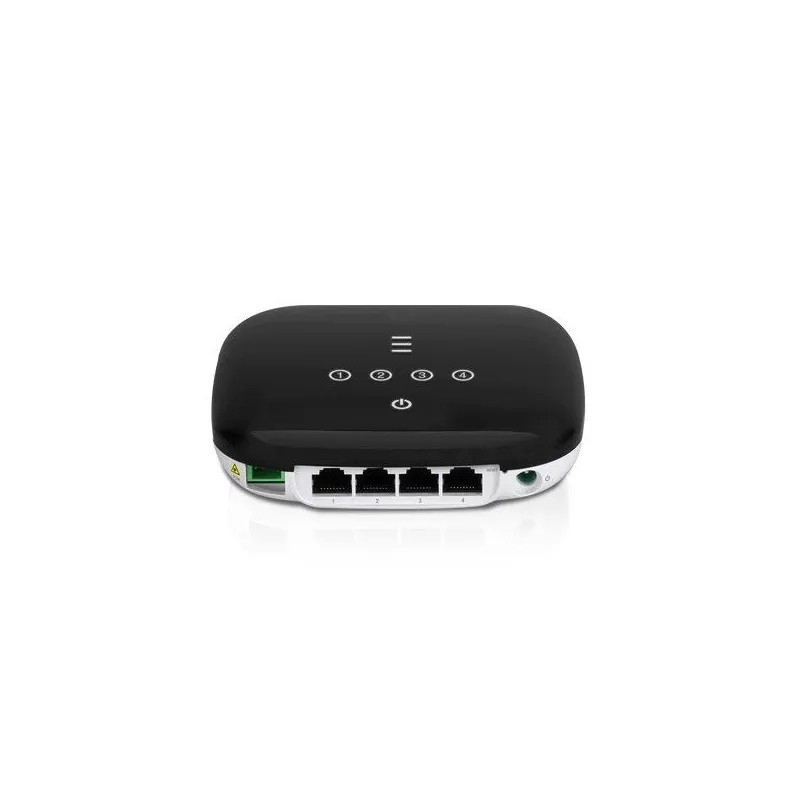

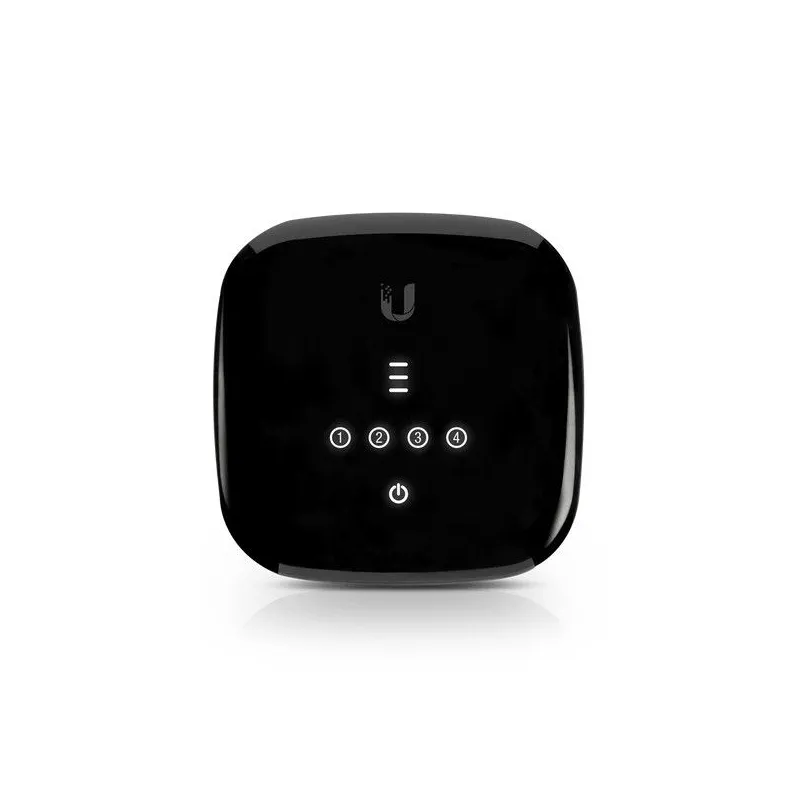

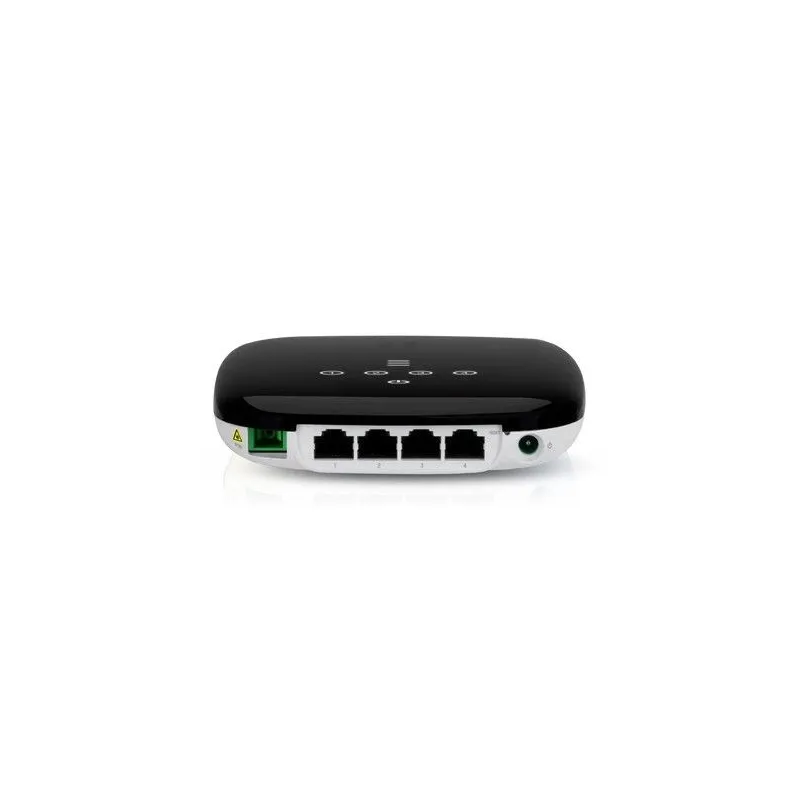

Ubiquiti UF-WIFI-US UISP Fiber WiFi GPON customer-premises equipment (CPE) รองรับความเร็ว 2.4/1.2Gbps พร้อม WiFi N, 4 Port Lan Gigabit

Dimensions

126.34 x 126.09 x 31.65 mm (4.97 x 4.96 x 1.25")

Weight

190 g (6.70 oz)

Networking Interfaces

(1) SC/APC, GPON WAN
(4) Gigabit RJ45, Ethernet LAN
(1) WiFi, 802.11n

Networking Interface Speeds
GPON WAN, ITU G.984
LAN
WiFi

2.4 Gbps Down, 1.2 Gbps Up
10/100/1000 Mbps
300 Mbps

Management Interface

In-Band Ethernet
PON

Normal Optical Power Range

TX (Class B+): 1.5 to 5 dBm
RX: -28 to -8 dBm

Power Method

DC Jack, 24VDC
24V Passive PoE (Pins 4, 5+; 7, 8-)

Power Supply

100-240VAC / 50-60 Hz Universal AC/DC
24V / 0.5A

Max. Power Consumption

7W

Supported Voltage Range

20 to 28V

Processor Specs

MIPS, 900 MHz

Memory Information

256 MB DDR

Button

(1) Reset

Operating Temperature

-10 to 45° C (14 to 113° F)

Operating Humidity

10 to 90% Noncondensing

Certifications

CE, FCC, IC

ประกัน

1 ปี
