Product Specification
|
|
Overview
|

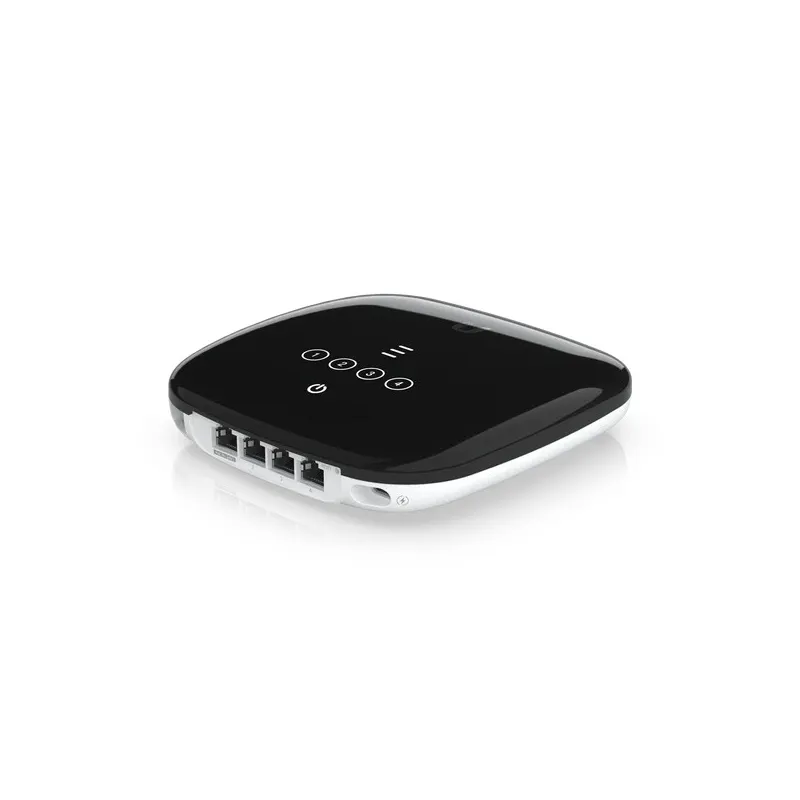

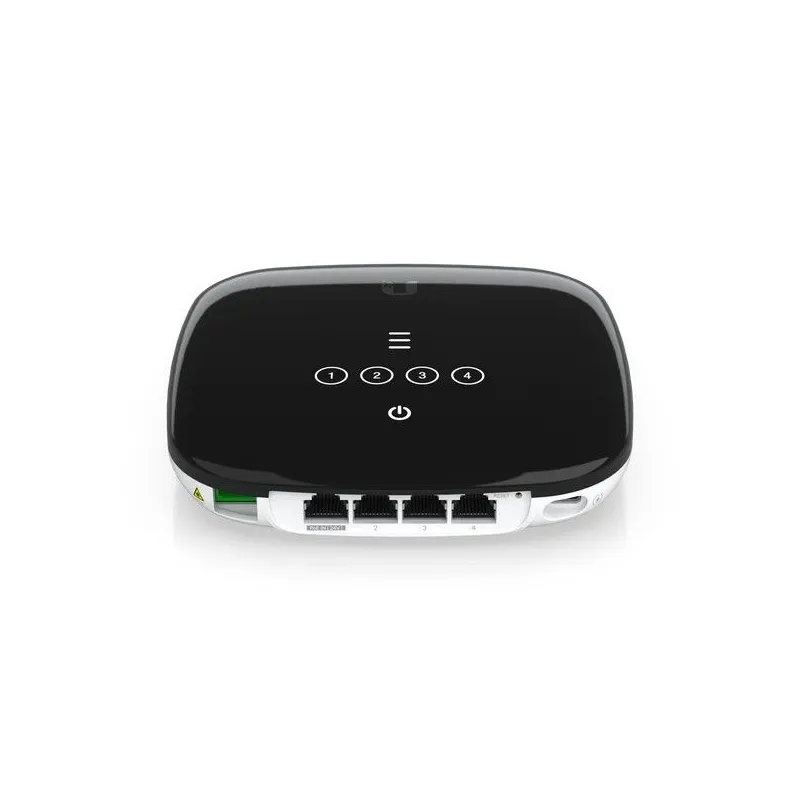

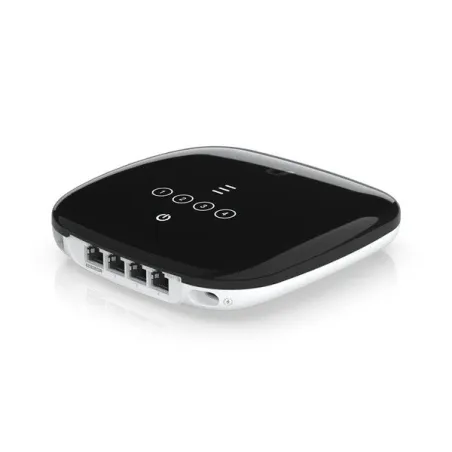

Ubiquiti UF-WiFi6-US UISP Fiber WiFi 6 GPON customer-premises equipment (CPE) รองรับความเร็ว 2.4/1.2Gbps พร้อม WiFi6, 4 Port Lan Gigabit
|
|
Dimensions
|
140.8 x 141.5 x 31.65 mm (5.54 x 5.57 x 1.25")
|
|
Weight
|
415 g (0.99 lb)
|
|
Enclosure material
|
UV-stabilized polycarbonate
|
|
Hardware
|
|
Processor
|
Dual-core MIPS 1004 Kc at 900 MHz
|
|
Memory
|
256 MB RAM
|
|
Total non-blocking line rate
|
2.488 Gbps downstream
1.244 Gbps upstream
|
|

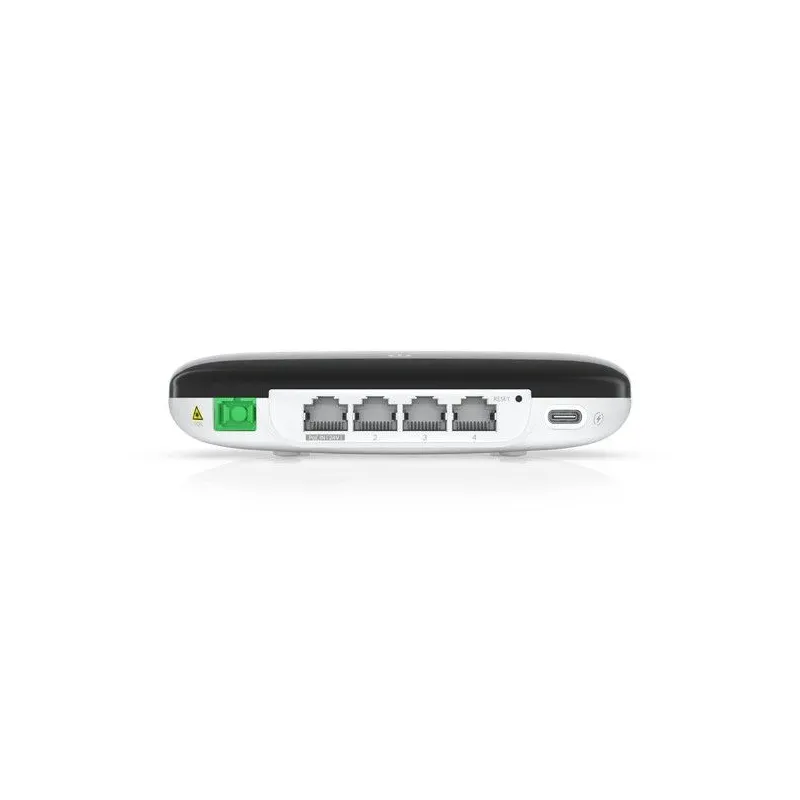

Networking interfaces
|
(1) SC/APC, ITU-G.984 GPON WAN port
(4) GbE RJ45 LAN ports
WiFi 802.11ax 5/2.4 GHz channels
|
|
PoE interface
|
(1) PoE in, 24V passive PoE
|
|
Management interface
|
Ethernet in-band
PON
|
|
Button
|
Factory-reset
|
|
Max. power consumption
|
11W
|
|
Power method
|
USB-C 5VDC, 3A
24V passive PoE, 0.5A
|
|
Power supply
|
5VDC, 3A power adapter, 1.5 m cord (included)
Passive PoE 2-pair (4, 5+; 7, 8-)
|
|
Supported voltage range
|
10 to 30VDC passive PoE
5VDC adapter
|
|
Normal TX range of optical module
|
0.5 to 5 dBm
|
|
Normal RX range of optical module
|
-8 to -28 dBm
|
|
Max. WiFi TX power
2.4 Ghz
5 Ghz
|
20 dBm
20 dBm
|
|
MIMO
2.4 Ghz
5 Ghz
|
2 x 2
2 x 2
|
|
Max. WiFi radio rate
2.4 Ghz
5 Ghz
|
300 Mbps
1.2 Gbps
|
|
Antenna Gain
2.4 GHz
5 GHz
|
1 dBi
3 dBi
|
|
Operating temperature
|
-15 to 45° C (5 to 113° F)
|
|
Operating humidity
|
10 to 90% noncondensing
|
|
Certifications
|
FCC, IC, CE
|
|
LEDs
|
|
PON status
|
(3) signal LEDs
All-OFF: bootup
1x orange: signal too low (< -28 db)
1x white: signal low (>= -28 db)
2x white: signal good (>= -25 db)
3x white: signal strong (>= -11 db)
1x orange + 2x white: signal too strong (>= -8 db)
3x orange: no signal
LEDs alternate between orange + white + orange and a signal strength indicator: No authority
|
|
Ethernet
|
Steady white: link up
Blinking white: activity
OFF: link down
|
|
Power
|
White: ON
|
|
Software
|
|
Mode
|
ONU/ONT layer 2/3 Ethernet switch
|
|
Services
|
Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features
|
|
Utilities
|
Dashboard, monitoring, alarms, and logs
|
|
Other
|
Remote reset, remote reboot, remote firmware upgrade, VLAN support
|
|
Security
|
GEM Port Encryption
|
|
Ubiquiti specific features
|
UBNT Discovery and UISP Mobile app
|
|
WiFi standards
|
802.11 b/g
WiFi 4/WiFi 5/WiFi 6
|
|
Wireless security
|
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES)
|
|
Minimum software requirements
|
Any modern web browser (Google Chrome™ recommended)
|
|
Fiber
|
|
Operating wavelength
|
1310 nm TX/1490 nm RX
|
|
Optical interface downstream nominal bit rate
|
2488.32 Mbit/s
|
|
Optical interface upstream nominal bit rate
|
1244.16 Mbit/s
|
|
Physical reach
|
20 km
|
|
Supported Data Rates
|
|
802.11b
|
1, 2, 5.5, 11 Mbps
|
|
802.11g
|
6, 9, 12, 18, 24, 36, 48, 54 Mbps
|
|
802.11n (WiFi 4)
|
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
|
|
802.11ac (WiFi 5)
|
6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
|
|
802.11ax (WiFi 6)
|
8.6 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80)
|
|
ประกัน
|
1 ปี
|
|
|
