แบรนด์: Ubiquiti
Ubiquiti Unifi U6-LR Datasheet
คู่มือการ Config อุปกรณ์ Ubiquiti
Product Specification |
|
Overview |

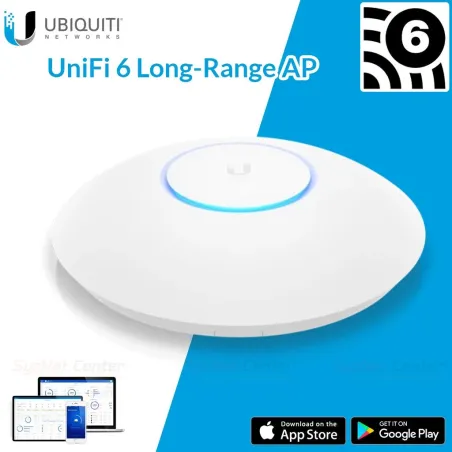

Ubiquiti UniFi 6 Long Range U6-LR U6-LR-US Wi-Fi 6 Access Point ax 4x4 MU-MIMO ความเร็วสูงสุด 3Gbps (600Mbps + 2,400Mbps) CPU 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance) 5 GHz Band 4x4 MU-MIMO and OFDMA with radio rate of 2400Mbps Powered with 802.3at PoE (ไม่มี PoE injector ในชุดอุปกรณ์) |
Mechanical |
|
Dimensions |
Ø220 x 48 mm (Ø8.66 x 1.89") |
Weight |
Without Mount: 800 g (1.76 lb) |
Enclosure Material |
Plastic |
Mounting Material |
SGCC Steel |
Weatherproofing |
IP54 |
Hardware |
|
Processor Specs |
Dual-Core® Cortex® A53 at 1.35 GHz |
Memory Information |
512 MB |
Management Interface |
Ethernet |
Networking Interface |
1 Port 1 Gbps Ethernet RJ45 |
Button |
Factory Reset |
LEDs |
RGB |
Power Method |
PoE+ (802.3at), Passive PoE (48V) (ไม่มี POE/Adapter ในชุด) |
Power Supply |
UniFi PoE Switch |
Supported Voltage Range |
44 to 57VDC |
Max. Power Consumption |
16.5W |
Max. TX Power |
|
MIMO |
|
Throughput Speeds |
|
Antenna Gain |
|
Mounting |
Wall/Ceiling (Kits Included) |
Operating Temperature |
-30 to 60° C (-22 to 140° F) |
Operating Humidity |
5 - 95% Noncondensing |
Certifications |
CE, FCC, IC |
Software |
|
Wi-Fi Standards |
802.11a/b/g |
Wireless Security |
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*) *Supported With Upcoming Controller Versions |
BSSID |
8 per Radio |
VLAN |
802.1Q |
Advanced QoS |
Per-User Rate Limiting |
Guest Trafc Isolation |
Supported |
Concurrent Clients |
300+ |
Supported Data Rates (Mbps) |
|
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11b |
1, 2, 5.5, 11 Mbps |
802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11n (Wi-Fi 4) |
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
802.11ac (Wi-Fi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
802.11ax (Wi-Fi 6) |
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
รับประกัน |
2 ปี |
Best-in-class Wi-Fi coverage and performanceWith its Wi-Fi 6 capability, the U6-LR will strengthen your enterprise environment with the widest, most reliable coverage yet.
Wi-Fi 6 APs deliver an aggregate radio rate of up to 3 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios
The U6-LR access point utilizes Wi-Fi 6 technology to provide strong and expansive wireless coverage to all enterprise networking environments.
Simultaneously connect to more devicesCreate and support over 300 distinct client connections.
The U6-LR access point seamlessly integrates with the UniFi Application and simplifies network bridging.
