Product Specification
|
|
Overview
|

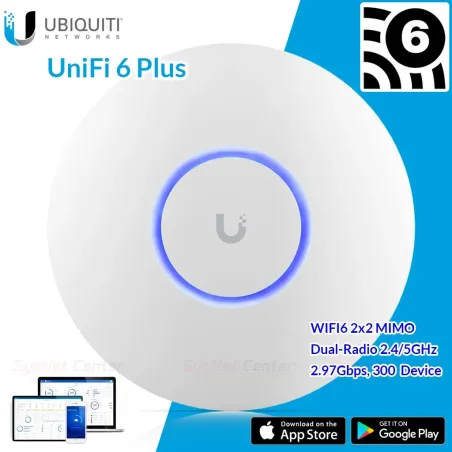

Ubiquiti UniFi U6-PLUS Access Point (U6+) Wi-Fi 6 Access Point dual-band 2x2 MU-MIMO ความเร็วสูงสุด 2.97 Gbps อัตราขยายสัญญาณเสาอากาศสูง 5.4dBi
รองรับการ Managed ผ่าน Unifi Controller/Standalone
2x2 high-efficiency Wi-Fi 6
5GHz band 2x2 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
2.4GHz band 2x2 MIMO with radio rate of 573.5 Mbps
Gigabit Ethernet, powered with 802.3af PoE (PoE injector not included)
|
|
Mechanical
|
|
Dimensions
|

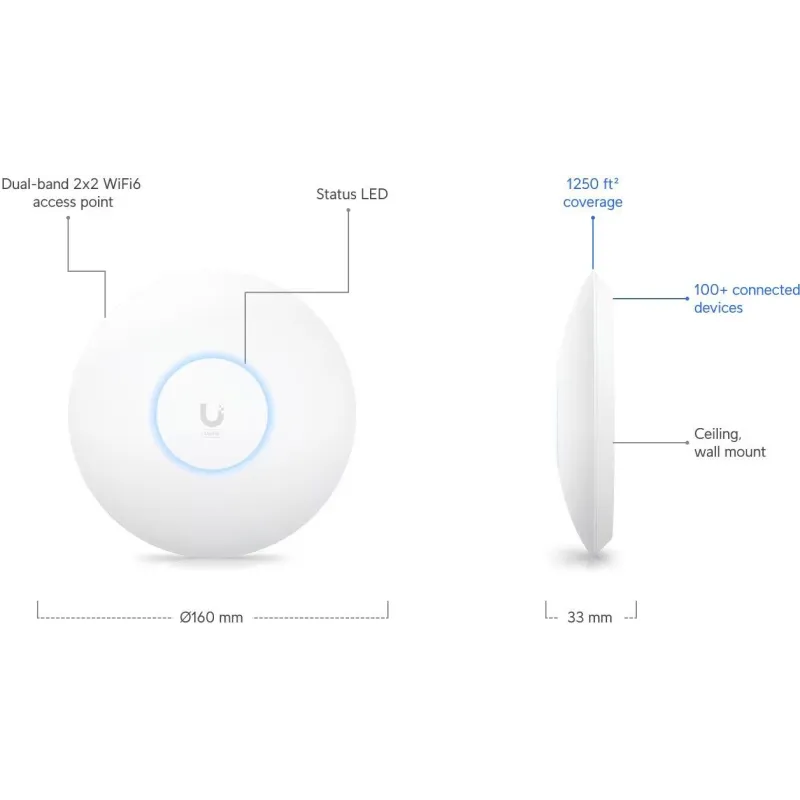

Ø160 x 32.65 mm (Ø6.3 x 1.3")
|
|
Weight
|
Witdout Mount: 338 g (0.75 lb)
Witd Mount: 413 g (0.91 lb)
|
|
Enclosure Characteristics
|
Polycarbonate,aluminum
|
|

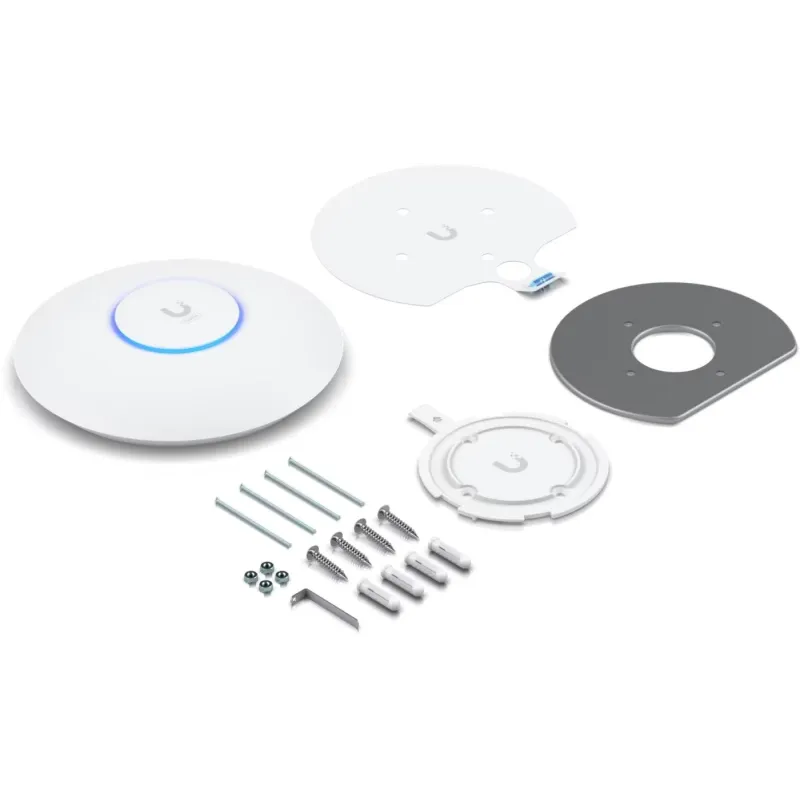

Mounting Characteristics
|
ABS, SGCC steel
|
|
Hardware
|
|
Management Interface
|
Etdernet In-Band
|
|
Networking Interface
|
(1) 10/100/1000 Mbps Etdernet RJ45
|
|

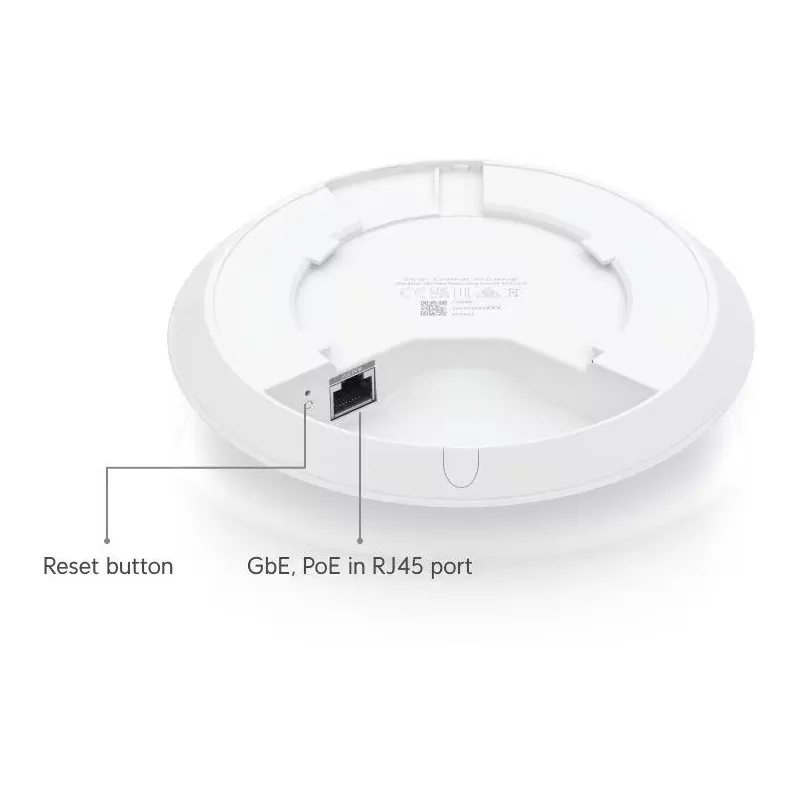

Buttons
|
Factory Reset
|
|
LEDs
|
White/Blue
|
|
Power Metdod
|
802.3af PoE, Passive PoE (48V)
|
|
Power Supply
|
802.3af PoE; 48V, 0.32A PoE Adapter (Not Included)
|
|
Supported Voltage Range
|
44 to 57VDC
|
|
Max. Power Consumption
|
9W
|
|
Max. TX Power
2.4GHz
5GHz
|
23 dBm
23 dBm
|
|
MIMO
2.4GHz
5GHz
|
2 x 2
2 x 2
|
|
Throughput Speeds
2.4GHz
5GHz
|
573.5 Mbps
2402 Mbps
|
|
Antenna Gain
2.4GHz
5GHz
|
3 dBi
5.4 dBi
|
|
Operating Temperature
|
-30 to 60° C (-22 to 140° F)
|
|
Operating Humidity
|
5 - 95% Noncondensing
|
|
Certifications
|
CE, FCC, IC
|
|
Software
|
|
Wi-Fi Standards
|
802.11a/b/g
Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
|
|
Wireless Security
|
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*)
|
|
BSSID
|
8 per Radio
|
|
VLAN
|
802.1Q
|
|
Advanced QoS
|
Per-User Rate Limiting
|
|
Guest Trafc Isolation
|
Supported
|
|
Concurrent Clients
|
300+
|
|
Management application
|
UniFi Network: Version 7.3.76 and later
|
|
รับประกัน
|
1 ปี
|
