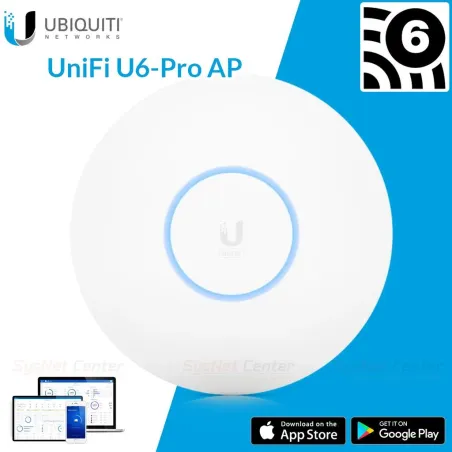

U6-Pro Ubiquiti UniFi 6 Pro Access Point Wi-Fi 6 AP 4x4 MIMO, 5.3Gbps

Product Specification

Overview

Ubiquiti UniFi 6 Pro Access Point U6-Pro Wi-Fi 6 Access Point ax 4x4 MU-MIMO ความเร็วสูงสุด 600Mbps+2,400Mbps

ใช้ภายในอาคาร, กระจาย 2 ย่านความถี่ dual-band WiFi 6 access point that can support over 300 clients with its 5.3 Gbps aggregate throughput rate.

5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 4.8 Gbps

2.4 GHz band 2x2 MIMO with radio rate of 573.5 Mbps

Powered with 802.3at PoE (PoE injector not included)

Dimensions

Ø197 x 35 mm (Ø7.76 x 1.38")

Weight

Without mount: 460 g (1.01 lb)

With mount: 600 g (1.32 lb)

Enclosure material

Plastic

Mounting material

SGCC steel

Weatherproofing

IP54

Management interfaces

Ethernet
Bluetooth

Networking interface

(1) GbE RJ45 port

Button

Factory reset

LEDs

White/Blue

Power method

802.3at PoE+

Power supply

UniFi PoE switch
48V, 0.5A PoE adapter (ไม่มีในชุดอุปกรณ์)

Supported voltage range

44 to 57VDC

Max. power consumption

13W

Max. TX power

2.4 GHz: @22 dBm
5 GHz: @26 dBm

MIMO

2.4 GHz 2 x 2 (UL MU-MIMO)
5 GHz 4 x 4 (DL/UL MU-MIMO)

Throughput rate

2.4 GHz @573.5 Mbps
5 GHz @4.8 Gbps

Antenna gain

2.4 GHz @4 dBi
5 GHz @6 dBi

Mounting

Wall/ceiling (included)

Operating temperature

-30 to 60° C (-22 to 140° F)

Operating humidity

5 - 95% noncondensing

Certifications

CE, FCC, IC

WiFi standards

802.11a/b/g
WiFi 4/WiFi 5/WiFi 6

Wireless security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest traffic isolation

Supported

Concurrent clients

รองรับ 300+

Zero wait DFS

Yes** Supported with upcoming firmware versions

รับประกัน

2 ปี
