U7-Pro Ubiquiti UniFi 7 Pro Access Point Wi-Fi 7 Tri-Band, 9.3Gbps

Access Point U7-Pro Product Specification

Overview

Ubiquiti UniFi 7 Pro Access Point U7-Pro Wi-Fi 7 (BE) Access Point รองรับ 3 ย่านความถี่ Tri-Band 2.4/5/6Gbps ความเร็วสูงสุด 9.3Gbps, Port LAN 2.5Gbps POE+ รองรับ 300 Client

2.4 GHz 2x2 688Mbps

5 GHz 2x2 2,882 Mbps

6 GHz 2x2 5,765 Mbps

Powered รองรับ POE มาตรฐาน 802.3at 30W (ไม่มี POE ในชุดอุปกรณ์ แนะนำเป็น POE Port 2.5Gbps เพื่อให้ได้ความเร็วที่มากกว่า 1Gbps)

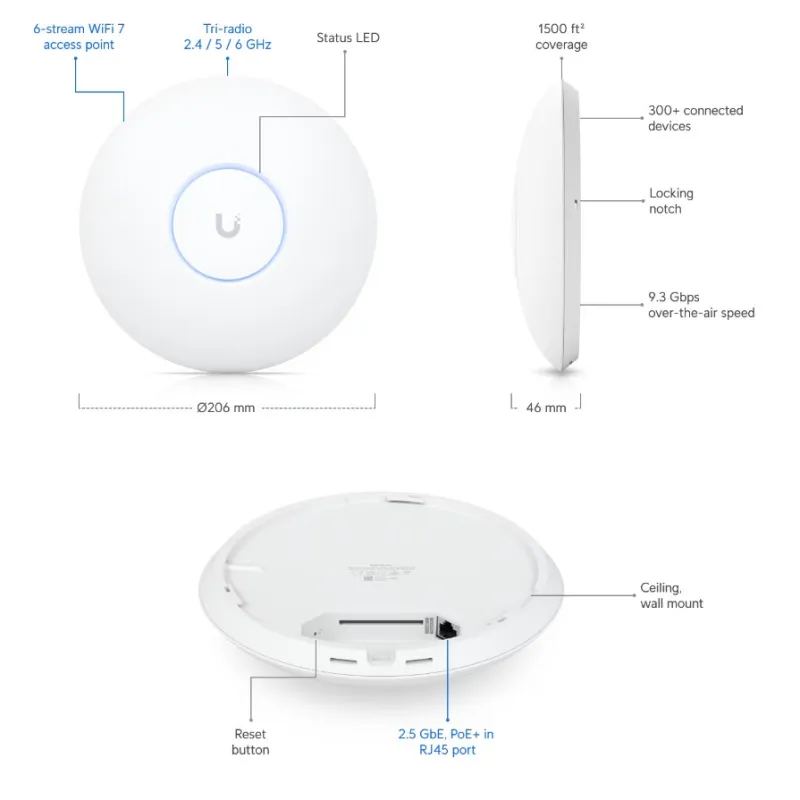

Dimensions

Ø206 x 46 mm (Ø8.1 x 1.8")

Weight

680 g (1.5 lb)

Enclosure material

Polycarbonate, metal

Mount material

Stainless steel (SUS304), galvanized steel (SGCC)

Hardware

Networking interface

(1) 1/2.5 GbE RJ45 port

Management interface

Ethernet

Power method

PoE+ (802.3at)

Power supply

UniFi PoE switch

Supported voltage range

44-57V DC

Max. power consumption

21W

Max. TX power

2.4 GHz : 22 dBm
5 GHz : 26 dBm
6 GHz : 23 dBm

Throughput rate

2.4 GHz : 688 Mbps
5 GHz : 2882 Mbps
6 GHz : 5765 Mbps

MIMO

2.4 GHz : 2 x 2
5 GHz : 2 x 2
6 GHz : 2 x 2

Antenna gain

2.4 GHz : 4 dBi
5 GHz : 6 dBi
6 GHz : 5.8 dBi

LEDs

White/blue

Button

Factory reset

Mounting

Wall/ceiling (Included)

Ambient operating temperature

-30 to 60° C (-22 to 140° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Software

WiFi standards

IEEE 802.11a/b/g/n/ac/ax/be

Wireless security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest traffic isolation

Supported

Concurrent clients

300+

Supported Data Rates

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6/6E)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7)

7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements

UniFi Network

Version 8.0.26 and late

UniFi OS

Version 3.2 and later

รับประกัน

2 ปี
