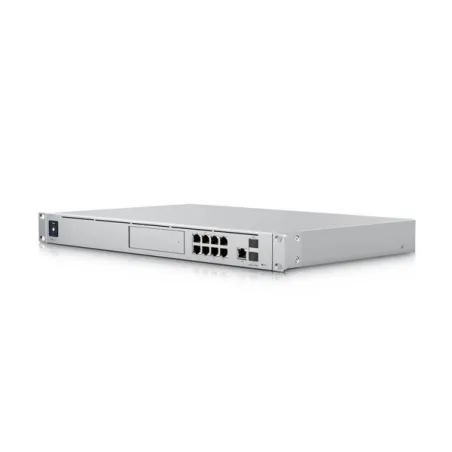

UDM-SE Ubiquiti UniFi Dream Machine Special Edition Security Gateway, Built-In UniFi Network Controller, Managed Switch 8 Port Gigabit, 2 Port Wan/Lan , 1 Port 2.5Gbpd, SFP+ 10Gbps, UniFi Protect Software
Support / ติดตั้งด้วยทีมงานที่มีความชำนาญ Certificate
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
เอกสารอ้างอิงเฉพาะ
Ubiquiti Dream Machine UDM-SE Datasheet
Ubiquiti Dream Machine UDM-SE Installation Guide
Product Specification | |
Overview | Ubiquiti Dream Machine Pro UDM-Pro อุปกรณ์ Unifi รวม Security Gateway และ L2-Managed Switch 8 Port Gigabit พร้อม UniFi Network Controller, 2 SFP+ Port รองรับความเร็ว 10Gpbs, UniFi Protect Software |
| รองรับ 3.5" HDD Bay (หรือ 2.5" HDD) สำหรับบันทึกภาพจาก Ubiquiti Unifi Camera (ไม่มี Harddisk ในชุด) |
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24") |
| Weight | 4.95 kg (10.91 lb) |
| Enclosure materials | Aluminium CNC, SGCC steel |
| Mount material | SGCC steel rack mount |
| Processor | Quad-Core ARM® Cortex®-A57 at 1.7 GHz |
| System memory | 4 GB DDR4 |
| On-board storage | 16 GB eMMC |
| IDS/IPS throughput | 3.5 Gbps* *Measured with iPerf3 |
| Max. power consumption (excluding PoE output) | 50W |
| Power method | (1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz (1) USP-RPS DC input, 52V DC, 3.94A |
| Power supply | AC/DC, Internal, 240W |
| Supported voltage range | 100—240V AC |
| Management interface | Ethernet |
| Networking interface | (1) WAN: 2.5 GbE RJ45 port |
| SFP+ interface | (1) WAN: 10G SFP+ (1) LAN: 10G SFP+ |
| PoE interface | (2) PoE+ (pair A 1, 2+; 3, 6-) (6) PoE (pair A 1, 2+; 3, 6-) |
| Max. PoE wattage per port by PSE PoE | 15.4W |
| Max. PoE wattage per port by PSE PoE+ | 30W |
| Voltage range PoE mode | 44—57V |
| Voltage range PoE+ mode | 50—57V |
| ESD/EMP protection | Air: ± 15 kV, contact: ± 8 kV |
| LCM display | (1) 1.3" touchscreen Bootup animation: bootup in progress Firmware upgrade icon: firmware upgrading |
| Button | Factory reset |
| Operating temperature | -10 to 40° C (14 to 104° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Ethernet | White: link/activity |
| SFP+ | White: link/activity |
| HDD | White: disk activity Amber: disk error |
| RPS | Blue: ready |
รับประกัน | 1 ปี |
