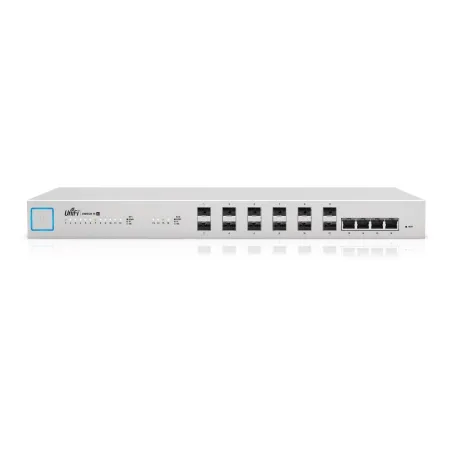

Ubiquiti Unifi Switch US-16-XG L2-Managed Gigabit Switch Port SFP+ 16 Port 10Gbps, 4 Port Lan 10 Gigabit

Product Specification

Overview

Ubiquiti Unifi Switch US-16-XG L2-Managed Gigabit Switch Port SFP+ จำนวน 12 Port ความเร็ว 10Gbps พร้อม 4 Port Lan ความเร็ว 10 Gigabit ทำงานผ่าน Unifi Software Controller รองรับการทำ VLAN, Link Agregate

Enclosure Characteristics

SGCC Steel

Switching Capacity

160 Gbps

Total Non-Blocking Throughput

320 Gbps

Forwarding Rate

238.10 Mpps

Max. Power Consumption

36W (Excludes SFP/SFP+ Modules)

Power Method

DC 56W, 25 to 16V, with 2.5 mm
DC Power Inline Connector

Supported Voltage Range

25 to 16VDC

Power Supply

AC/DC, Internal, 56W DC

LEDs

Speed/Link/Activity

Networking Interfaces

12 Port SFP+ ความเร็ว 1/10 Gbps
4 Port 1/10 Gbps RJ45 Ethernet Ports

Management Interface

1 Port RJ45 Serial Port Out-of-Band, Ethernet Ports In-Band

Certifications

CE, FCC, IC

Rack Mount

Yes, 1U High

ESD/EMP Protection

Air: 24 kV, Contact: 24 kV

Operating Temperature

-5 to 40C (23 to 104F)

Operating Humidity

5 to 95% Noncondensing

Shock and Vibration

ETSI300-019-1.4 Standard

Dimensions

443 x 221 x 43 mm (17.44 x 8.70 x 1.69")

Weight

2.71 kg

ประกัน

2 ปี
