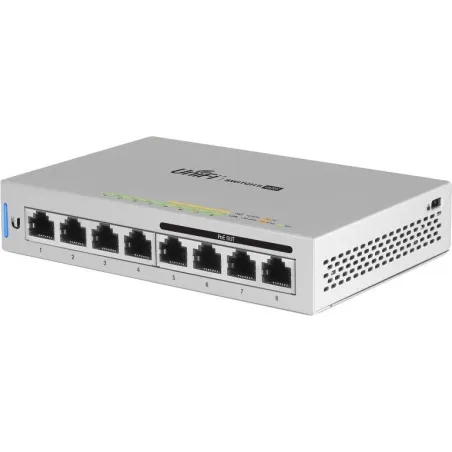

Ubiquiti Unifi Switch US-8-60W L2-Managed Gigabit POE Switch 8 Port, POE 802.3af 4 Port

Product Specification

Overview

Ubiquiti Unifi Switch US-8-60W L2 Managed Gigabit POE Switch ขนาด 8 Port ความเร็ว Gigabit
จ่ายไฟ POE มาตรฐาน 802.3af 4 Port กำลังไฟสูงสุด 60W
ควบคุมการทำงานผ่าน Unifi Software Controller

Enclosure Characteristics

SGCC Steel

Switching Capacity

16 Gbps

Total Non-Blocking Throughput

8 Gbps

Forwarding Rate

11.9 Mpps

Max. Power Consumption

12W (Excluding PoE Output)

Max. PoE Wattage per Port

15.4W

Passive PoE Voltage Range

-

Power Method

48VDC, Max. 2A

Supported Voltage Range

57VDC to 44VDC

Power Supply

External AC/DC Adapter, 48V, 1.25A

LEDs

PoE (Port 8), Speed/Link/Activity (All Ports)

Networking Interfaces

(8) 10/100/1000 Mbps RJ45 Ports

PoE In Interface

(4) Ports 5, 6, 7, 8; IEEE802.3af

PoE Out Interface (Port 8)

-

Networking Interfaces

(8) 10/100/1000 Mbps RJ45 Ports

PoE Interfaces

(4) Ports 5, 6, 7, 8; IEEE802.3af

ESD/EMP Protection

Air: ? 24 kV, Contact: ? 24 kV

Operating Temperature

-5 to 45? C (23 to 113? F)

Operating Humidity

5 to 95% Noncondensing

Shock and Vibration

ETSI300-019-1.4 Standard

Certifications

CE, FCC, IC

Dimensions

148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")

Weight

0.43 kg

ประกัน

2 ปี
