Product Specification
|
|
Overview
|

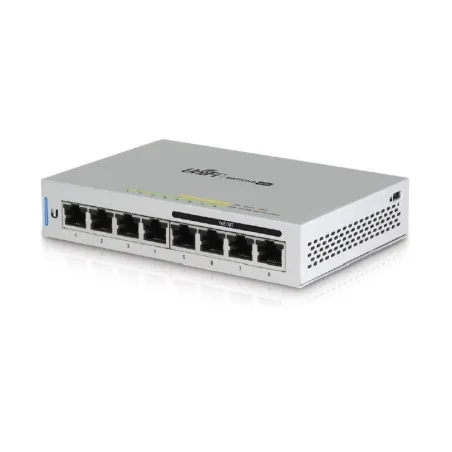

Ubiquiti Unifi Switch US-8 L2-Managed Gigabit Switch ขนาด 8 Port ความเร็ว Gigabit จ่ายไฟ POE Passive 48VDC ผ่าน Port 8 ควบคุมการทำงานผ่าน Unifi Software Controller รองรับการทำ VLAN
|
|
Enclosure Characteristics
|
SGCC Steel
|
|
Switching Capacity
|
8 Gbps
|
|
Total Non-Blocking Throughput
|
16 Gbps
|
|
Forwarding Rate
|
11.9 Mpps
|
|
Max. Power Consumption
|
12W (Excluding PoE Output)
|
|
Max. Passive PoE Wattage per Port
|
PoE Mode 1: 12W @ 802.3at
PoE Mode 2: 12W @ 48V
DC Input Mode: 12W @ 48V
|
|
Passive PoE Voltage Range
|
Depends on Power Source
|
|
Power Method
|
(1) DC 48V, Max. 1.25A
(1) PoE Input, 802.3 af/at (Pins +1, 2; -3, 6)
|
|
Supported Voltage Range
|
DC: 48V; 48V Mode: 56V to 40V
|
|
Power Supply
|
External AC/DC Adapter, 48V, 0.5A
|
|
LEDs
|
PoE (Port 8), Speed/Link/Activity (All Ports)
|
|
Networking Interfaces
|
(8) 10/100/1000 Mbps RJ45 Ports
|
|
PoE In Interface (Port 1)
|
PoE Mode 1: 802.3af/at (Pins +1, 2; -3, 6)
PoE Mode 2: 48V (2-Pair Pins +4, 5; -7, 8)
|
|
PoE Out Interface (Port 8)
|
PoE Mode 1: 48V (Pins +1, 2; -3, 6)
PoE Mode 2: Passive 48V (2-Pair Pins +4, 5; -7, 8)
DC Input Mode: DC Passthrough (Pins +1, 2; -3, 6)
|
|
Management Interface
|
Ethernet In-Band Management
|
|
ESD/EMP Protection
|
Air: ? 24 kV, Contact: ? 24 kV
|
|
Operating Temperature
|
-5 to 45? C (23 to 113? F)
|
|
Operating Humidity
|
5 to 95% Noncondensing
|
|
Shock and Vibration
|
ETSI300-019-1.4 Standard
|
|
Certifications
|
CE, FCC, IC
|
|
Dimensions
|
148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")
|
|
Weight
|
0.43 kg
|
|
ประกัน
|
2 ปี
|
|
|
รายละเอียดสินค้า
10 รายการ
ข้อมูลสินค้า
- ประเภท Switch
- L2 Managed
- ความเร็ว Port Lan
- 1Gbps (Gigabit)
- จำนวน Port Lan
- 8 Port
