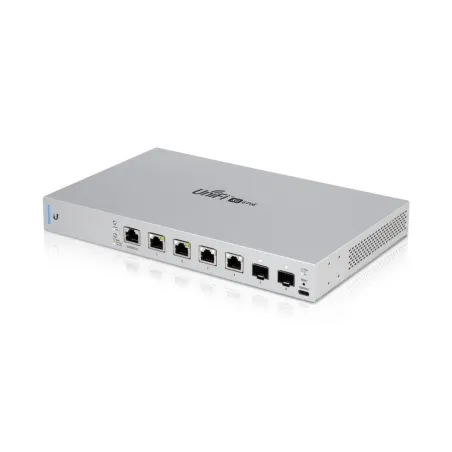

Ubiquiti Unifi Switch US-XG-6POE L2-Managed Gigabit POE Switch 6 Port, POE 802.3bt 210W

Ubiquiti Unifi Switch US-XG-6POE Product Specification

Overview

Ubiquiti Unifi Switch US-XG-6POE L2 Managed Gigabit POE Switch 6 Port ความเร็ว Gigabit , 2 SFP+

จ่ายไฟ POE++ มาตรฐาน IEEE 802.3bt 4 Port จ่ายไฟสูงสุด 60W Port รวมสูงสุด 210W

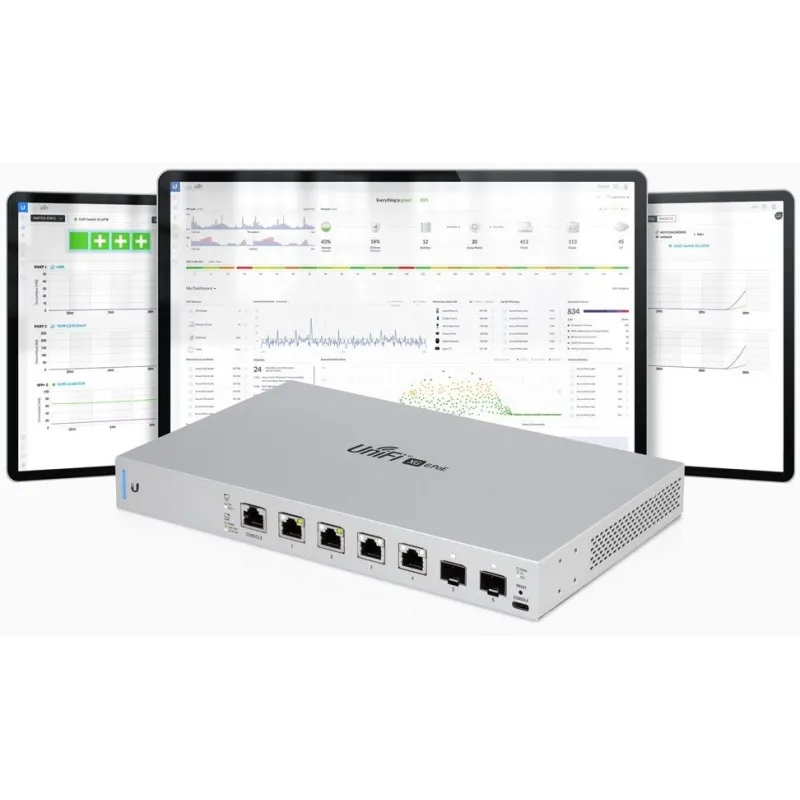

ควบคุมการทำงานผ่าน Unifi Software Controller

Dimensions

165 x 268.1 x 31.8 mm
(6.50 x 10.56 x 1.25")

Weight

1.3 kg (2.87 lb)

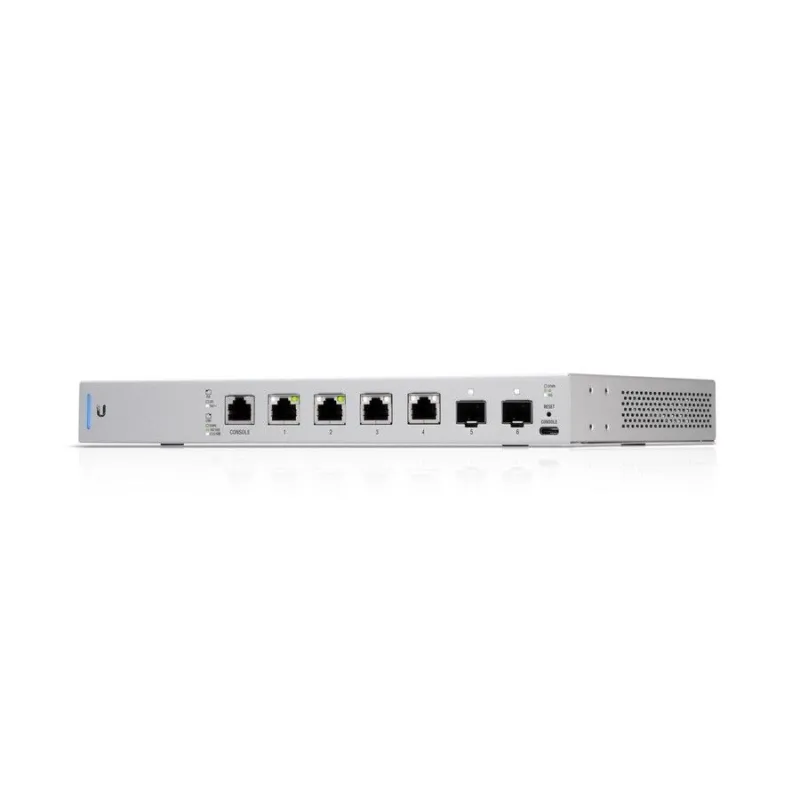

Interfaces

Networking
Management

(4) 100/1000 Mbps and 2.5/5/10G RJ45 Ports
(2) 1/10G SFP+ Ethernet Ports
Ethernet In-Band
(1) RJ45 Serial Port Out-of-Band
(1) USB Type C Port Out-of-Band

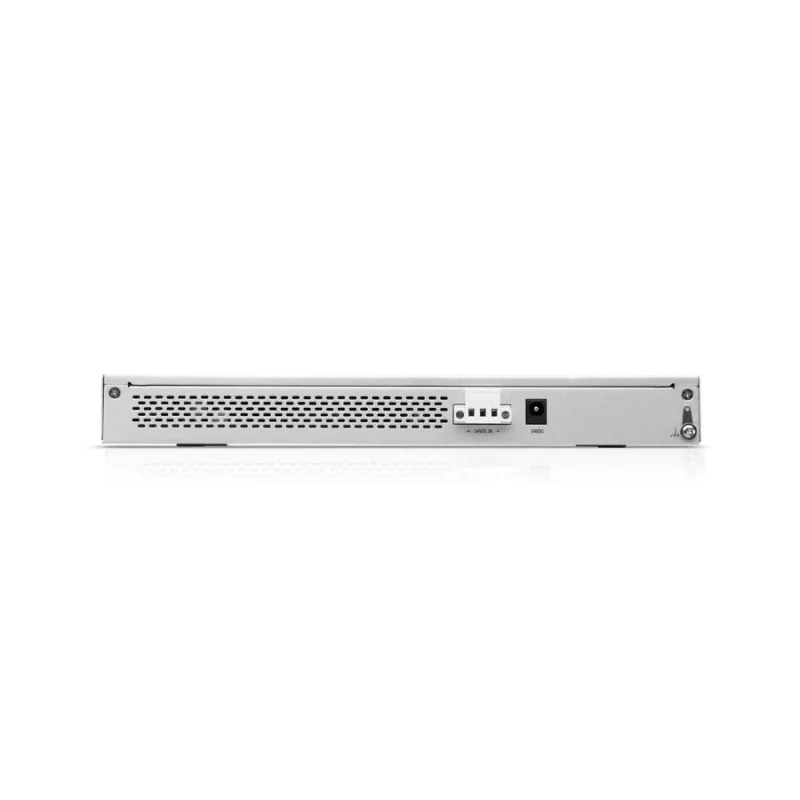

Power Method

54VDC, 3.88A Power Adapter (Included)
or DC Input with Terminal Block

Power Supply

External AC/DC Adapter (Included)
or
DC Power Source

Supported Voltage Range

44 to 57VDC

Max. Power Consumption
(Excluding PoE Output)

40W

LEDs

System: Status

RJ45 Data Ports: PoE; Speed/Link/Activity

SFP+ Data Ports: Link/Activity

ESD/EMP Protection

Air: ? 18 kV, Contact: ? 12 kV

Shock and Vibration

ETSI300-019-1.4 Standard

Operating Temperature

-5 to 45? C (23 to 113? F)

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC

PoE

PoE Interfaces

PoE++ IEEE 802.3bt
(Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)

Max. 802.3bt Wattage per Port by PSE

60W

Voltage Range 802.3af Mode

44-57V

Voltage Range 802.3at/bt Mode

50-57V

ประกัน

1 ปี
