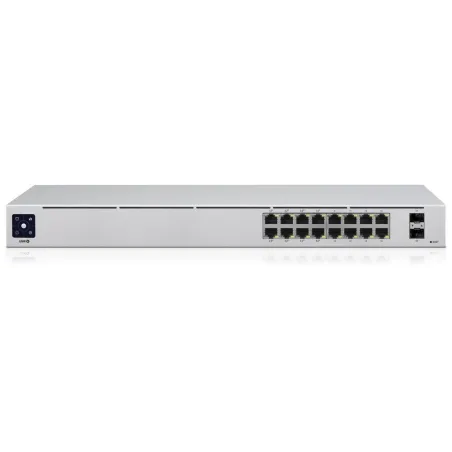

    Ubiquiti Unifi Switch USW-16-POE Gen2 L2-Managed Gigabit POE Switch 16 Port, POE 8 Port

    Ubiquiti
    Rating

    Ubiquiti Unifi Switch USW-16-POE Gen2 L2-Managed Gigabit POE Switch ขนาด 16 Port ความเร็ว Gigabit, 2 Port SFP จ่ายไฟ POE มาตรฐาน 802.3at 8 Port 60W ควบคุมผ่าน Unifi Software Controller

    ฿12,000.00
    ยังไม่ได้รวมภาษี
    จำนวน

    รายละเอียด

    Ubiquiti Unifi Switch USW-16-POE Gen2 Datasheet
    Ubiquiti Unifi Switch USW-16-POE Gen2 Quick Starter Guide
    Ubiquiti Unifi Controller V4 Quick Guide

    Ubiquiti Unifi Switch USW-16-POE Gen2 Product Specification

    Overview

    Ubiquiti Unifi Switch USW-16-POE Gen2 L2-Managed Gigabit POE Switch ขนาด 16 Port ความเร็ว Gigabit 2 Port SFP

    จ่ายไฟ POE มาตรฐาน 802.3at 8 Port 60W

    ควบคุมผ่าน Unifi Software Controller

    Dimensions

    424.4 x 200 x 43.7 mm
    (16.71 x 7.87 x 1.72")

    Weight
    With Rackmount Brackets

    2.80 kg (6.17 lb)
    2.89 kg (6.37 lb)

    Interfaces
    Networking

    Management

    (16) 10/100/1000 RJ45 Ports
    (2) 1G SFP Ethernet Ports

    Ethernet In-Band

    Power Method

    100-240VAC/50-60 Hz, Universal Input

    Power Supply

    AC/DC, Internal, 60W

    Supported Voltage Range

    100 to 240VAC

    Max. Power Consumption (Excluding PoE Output)

    18W

    LEDs
    System
    RJ45 Data Ports
    SFP Data Ports


    Status
    PoE; Speed/Link/Activity
    Link/Activity

    ESD/EMP Protection

    Air: ± 16 kV, Contact: ± 12 kV

    Shock and Vibration

    ETSI300-019-1.4 Standard

    Operating Temperature

    -5 to 40° C (23 to 104° F)

    Operating Humidity

    10 to 90% Noncondensing

    Certifications

    CE, FCC, IC

    PoE Interfaces

    Ports 1-8


    POE+ IEEE 802.3af/at
    (pins 1, 2+; 3, 6-)

    Max. PoE Wattage per Port by PSE
    802.3at


    32W

    Voltage Range 802.3af Mode

    44-57V

    Voltage Range 802.3at Mode

    50-57V

    ประกัน

    2 ปี

    Scalable UniFi Network Controller

    Management Capabilities

    The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a  simplified, yet powerful, interface.

    Network Overview

    From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network’s vitals and make on-the-fly  adjustments as needed.

    Deep Packet Inspection

    Ubiquiti’s proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.

    Detailed Analytics

    The UniFi Network Controller provides configurable reportingand analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.

    Multi-Site Management

    A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi‑tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.

    Switch Configuration

    You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
    • Operation mode (switching, mirroring, or aggregate) per port
    • Network/VLAN configuration
    • Jumbo frame and flow control services
    • Network settings
    • Storm control setting per port
    • Spanning tree configuration
    • 802.1X control and RADIUS VLAN
    • Debug terminal option for command-line interface

    Switch Port Status

    You can also view status information for each port:

    • Connection speed and duplex mode
    • TX/RX data rates
    • Network/VLAN setting

    Software Features

    The UniFi Network Controller software offers the following features:
    • Centralized configuration management (including configuration cloning)
    • Auto-MDIX automatically adjusts as needed for straight through or crossover cable
    • 802.1X (RADIUS) authentication and dynamic VLAN







    รายละเอียดสินค้า
    3 รายการ

    Data sheet

    ประเภท Switch
    L2 Managed
    ความเร็ว Port Lan
    1000Mbps (1Gbps)
    จำนวน Port Lan
    16 Port
    มาตรฐานจ่ายไฟ POE
    802.3af/at (30W)
    จำนวน Port POE
    8 Port
    มี SFP Port Gigabit
    Yes
