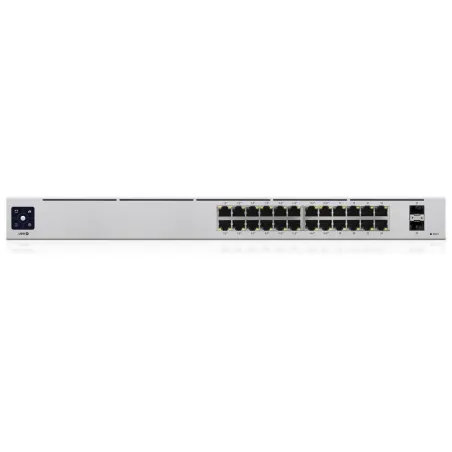

Ubiquiti Unifi Switch USW-24-POE Product Specification
|
|
Overview
|
Ubiquiti Unifi Switch USW-24-POE Gen2 L2-Managed Gigabit POE Switch ขนาด 24 Port ความเร็ว Gigabit 2 Port SFP
จ่ายไฟ POE มาตรฐาน 802.3at 16 Port 120W
ควบคุมผ่าน Unifi Software Controller
|
| Dimensions |
424.4 x 200 x 43.7 mm
(16.71 x 7.87 x 1.72") |
Weight

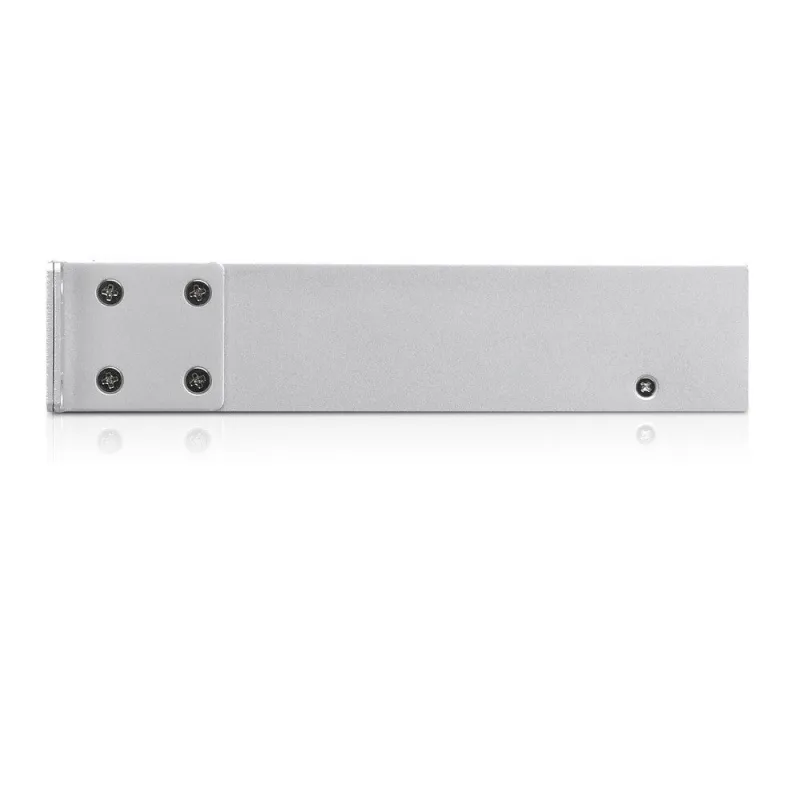

With Rackmount Brackets |
3.00 kg (6.61 lb)
3.09 kg (6.81 lb) |
Interfaces
Networking
Management |
(24) 10/100/1000 RJ45 Ports
(2) 1G SFP Ethernet Ports
Ethernet In-Band |
| Power Method |
100-240VAC/50-60 Hz, Universal Input |
| Power Supply |
AC/DC, Internal, 120W |
| Supported Voltage Range |
100 to 240VAC |
| Max. Power Consumption (Excluding PoE Output) |
25W |
LEDs
System
RJ45 Data Ports
SFP Data Ports |
Status
PoE; Speed/Link/Activity
Link/Activity |
| ESD/EMP Protection |
Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration |
ETSI300-019-1.4 Standard |
| Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Operating Humidity |
10 to 90% Noncondensing |
| Certifications |
CE, FCC, IC |
| PoE Interfaces Ports 1-16 |
POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-) |
Max. PoE Wattage per Port by PSE
802.3at |
32W |
| Voltage Range 802.3af Mode |
44-57V |
| Voltage Range 802.3at Mode |
50-57V |
|
ประกัน
|
2 ปี
|
|
Scalable UniFi Network Controller
|
|
Management Capabilities
|
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.
|
|
Network Overview
|
From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network’s vitals and make on-the-fly adjustments as needed.
|
|
Deep Packet Inspection
|
Ubiquiti’s proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.
|
|
Detailed Analytics
|
The UniFi Network Controller provides configurable reportingand analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.
|
|
Multi-Site Management
|
A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi‑tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.
|
|
Switch Configuration
|
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1X control and RADIUS VLAN
• Debug terminal option for command-line interface
|
|
Switch Port Status
|
You can also view status information for each port:
• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting
|
|
Software Features
|
The UniFi Network Controller software offers the following features:
• Centralized configuration management (including configuration cloning)
• Auto-MDIX automatically adjusts as needed for straight through or crossover cable
• 802.1X (RADIUS) authentication and dynamic VLAN
|
|
|
|
