Product Specification
|
|
Overview
|

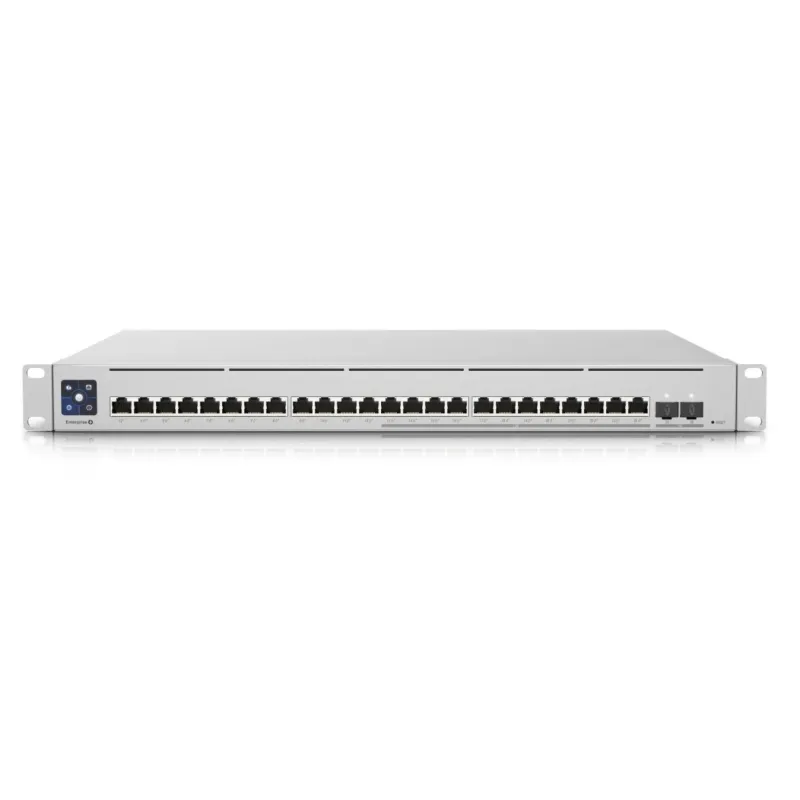

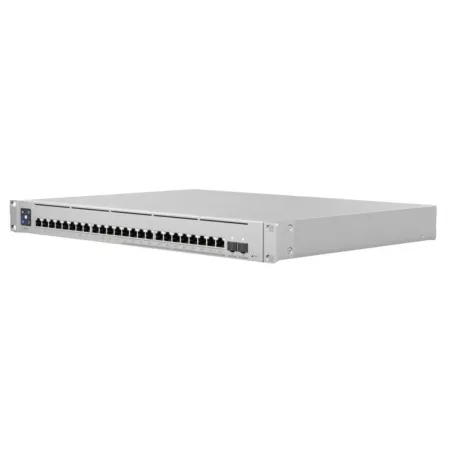

Ubiquiti Unifi Switch USW-Enterprise-24-PoE L3 Managed Multi-Gigabit POE Switch 24 Port ความเร็ว 1G/2.5G, 2 Port SFP+ 10Gbps, จ่ายไฟ POE 802.3at/bt 48 Port 400W ควบคุมผ่าน Unifi Software Controller
12 Port ความเร็ว 1 Gigabit POE+
12 Port ความเร็ว 2.5 Gigabit POE+
Layer 3 Feature รองรับการทำ Inter VLAN, Routing, Static Routing, DHCP Server
จ่ายไฟ POE มาตรฐาน 802.3at/bt 24Port 400W
ควบคุมผ่าน Unifi Software Controller
|
|

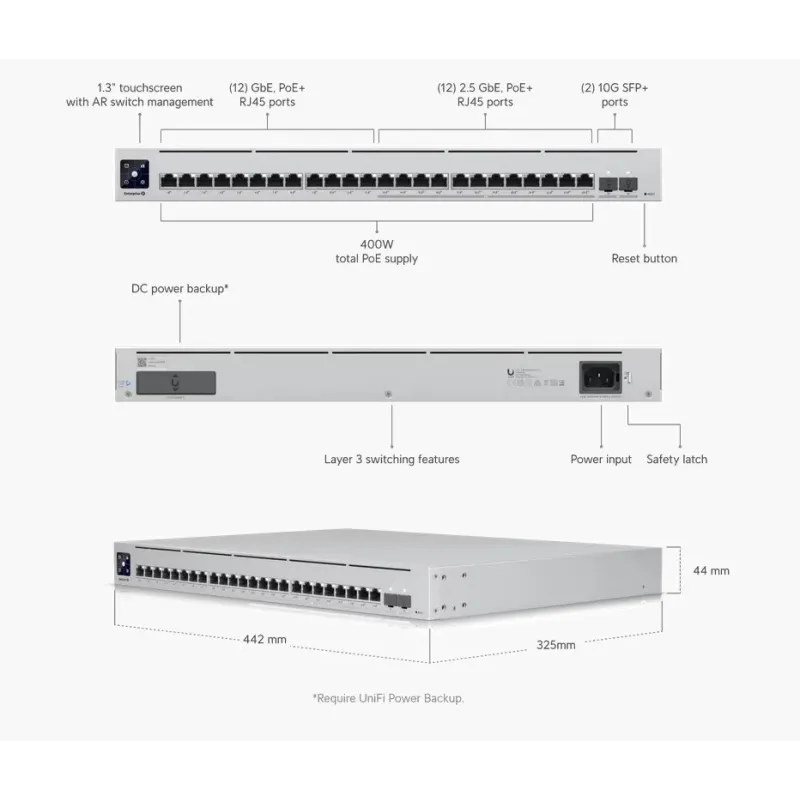

Dimensions
|
442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
|
|
Weight

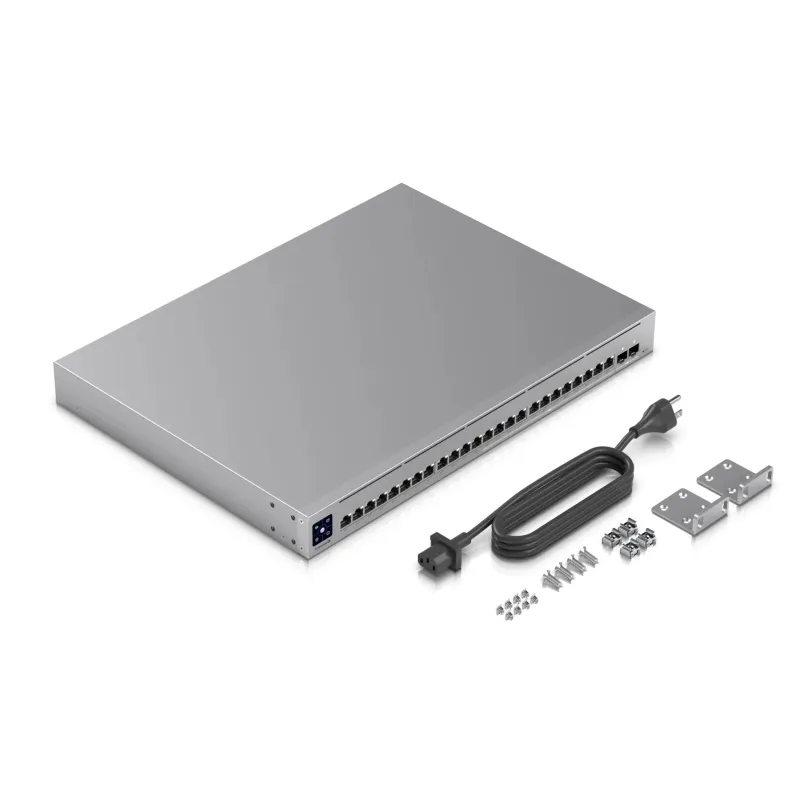

With Rackmount Brackets
|
Without Mount: 5.11 kg (11.27 lb)
With Mount: 5.2 kg (11.46 lb)
|
|
Enclosure Materials
|
SGCC Steel
|
|
Mount Material
|
SGCC Steel
|
|
Total Non-Blocking Throughput
|
62 Gbps
|
|
Switching Capacity
|
124 Gbps
|
|
Max. Power Consumption
|
550W
|
|

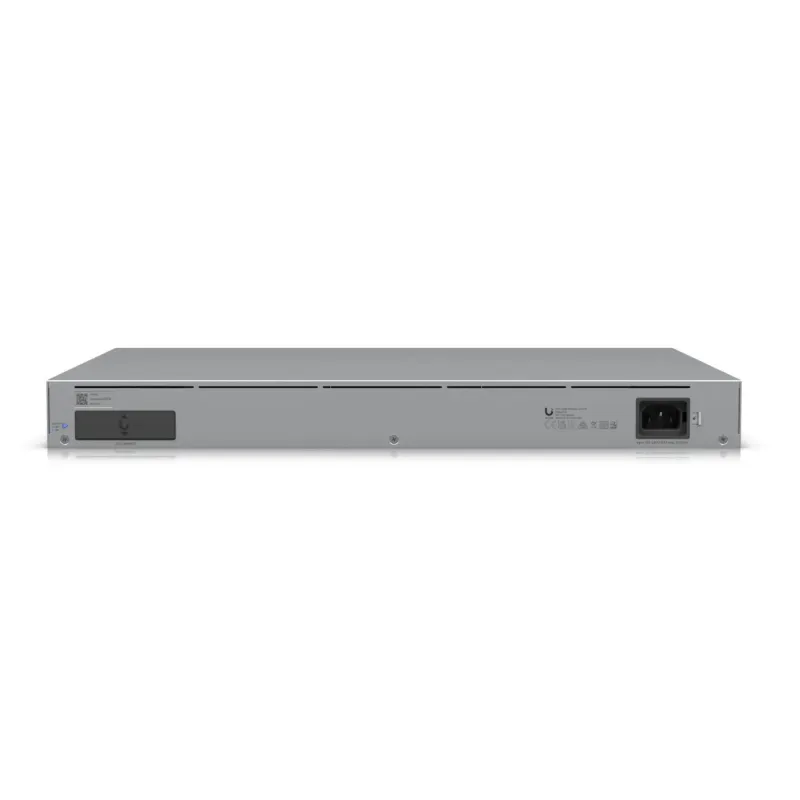

Power Method
|
(1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz
(1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A
|
|
Power Supply
|
AC/DC, Internal, 550W
|
|
Management Interface
|
Ethernet In-Band
|
|
Networking Interfaces
|
(12) 10/100/1000 Mbps RJ45 Ethernet
(12) 100/1000/2500 Mbps RJ45 Ethernet
|
|
SFP+ Interfaces
|
(2) 1/10G SFP+
|
|
PoE Interfaces
|
(24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
|
|
Max. PoE+ Wattage per Port by PSE
|
34.2W
|
|
Voltage Range 802.3af Mode
|
44 to 57V
|
|
Voltage Range 802.3at Mode
|
50 to 57V
|
|
Services
|
SMB Layer 3 PoE Gigabit Ethernet Switch
|
|
ESD/EMP Protection
|
Air: ± 16 kV, Contact: ± 12 kV
|
|
Operating Temperature
|
-5 to 40° C (23 to 104° F)
|
|
Operating Humidity
|
10 - 95% Noncondensing
|
|
Certifications
|
CE, FCC, IC
|
|
LEDs
|
|
|
System
|
(1) Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
|
|
Ethernet
|
White: Link or Activity
|
|
SFP+
|
White: Link or Activity
|
|
ประกัน
|
2 ปี
|
|
Scalable UniFi Network Controller
|
|
Management Capabilities
|
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.
|
|
Network Overview
|
From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network’s vitals and make on-the-fly adjustments as needed.
|
|
Deep Packet Inspection
|
Ubiquiti’s proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.
|
|
Detailed Analytics
|
The UniFi Network Controller provides configurable reportingand analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.
|
|
Multi-Site Management
|
A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi‑tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.
|
|
Switch Configuration
|
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1X control and RADIUS VLAN
• Debug terminal option for command-line interface
|
|
Switch Port Status
|
You can also view status information for each port:
• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting
|
|
Software Features
|
The UniFi Network Controller software offers the following features:
• Centralized configuration management (including configuration cloning)
• Auto-MDIX automatically adjusts as needed for straight through or crossover cable
• 802.1X (RADIUS) authentication and dynamic VLAN
|
|
|
|
