USW-Flex Ubiquiti Unifi Switch L2-Managed Gigabit POE Switch 5 Port

Product Specification

Overview

Ubiquiti Unifi Switch USW-Flex L2 Managed Gigabit POE Switch ขนาด 5 Port ความเร็ว Gigabit รองรับการติดตั้งทั้งภายใน และ ภายนอกอาคาร
จ่ายไฟ POE มาตรฐาน 802.3af 4 Port

** ต้องใช้ร่วมกับ POE มาตรฐาน 802.3bt 60W

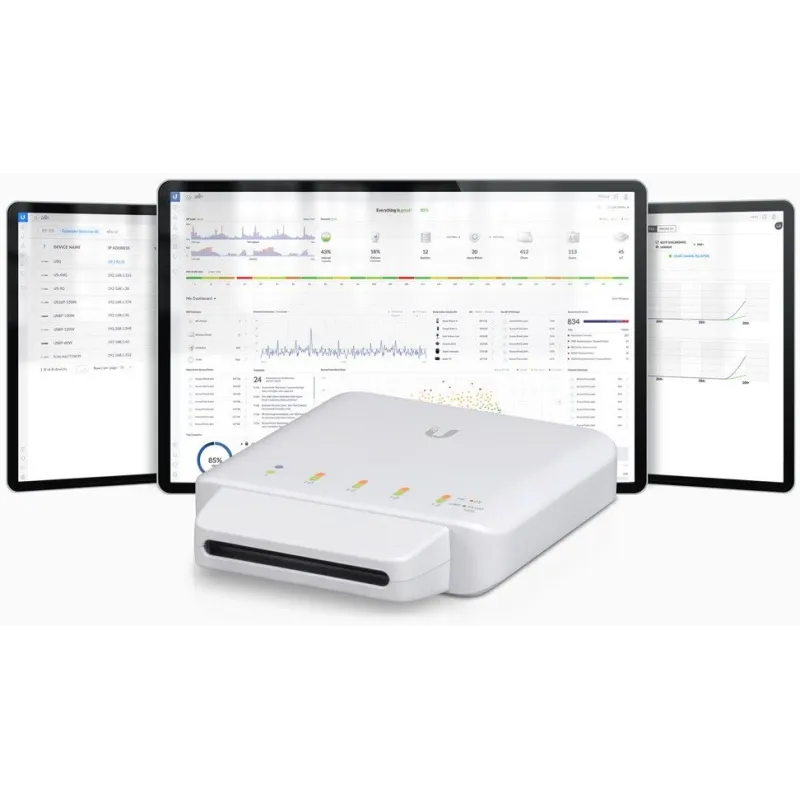

ควบคุมการทำงานผ่าน Unifi Software Controller

Dimensions

122.5 x 107.1 x 28.0 mm
(4.82 x 4.22 x 1.10")

Weight

230 g (8.11 oz)

Networking Interfaces

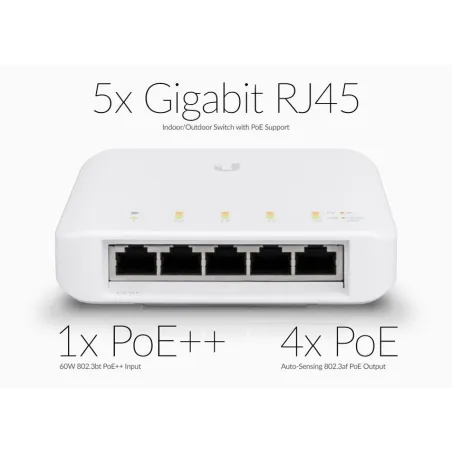

(5) 10/100/1000 Mbps RJ45 Ports

Management Interface

Ethernet In-Band

Advanced Features

VLAN Support
Port Aggregation (LAG)
Spanning Tree Protocol (STP)
Jumbo Frames
Quality of Service (QoS)
Advanced Logging

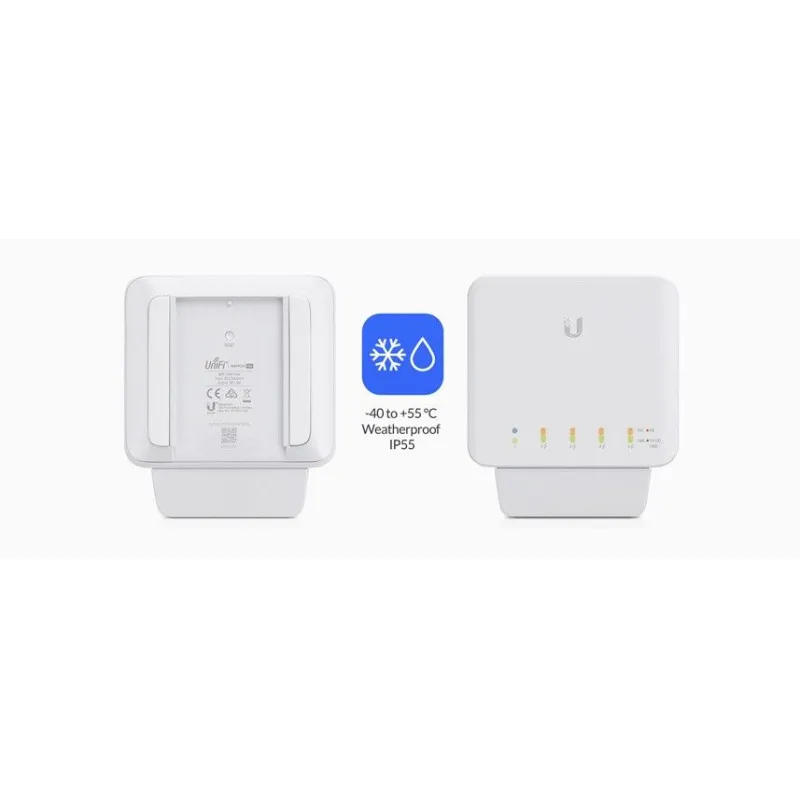

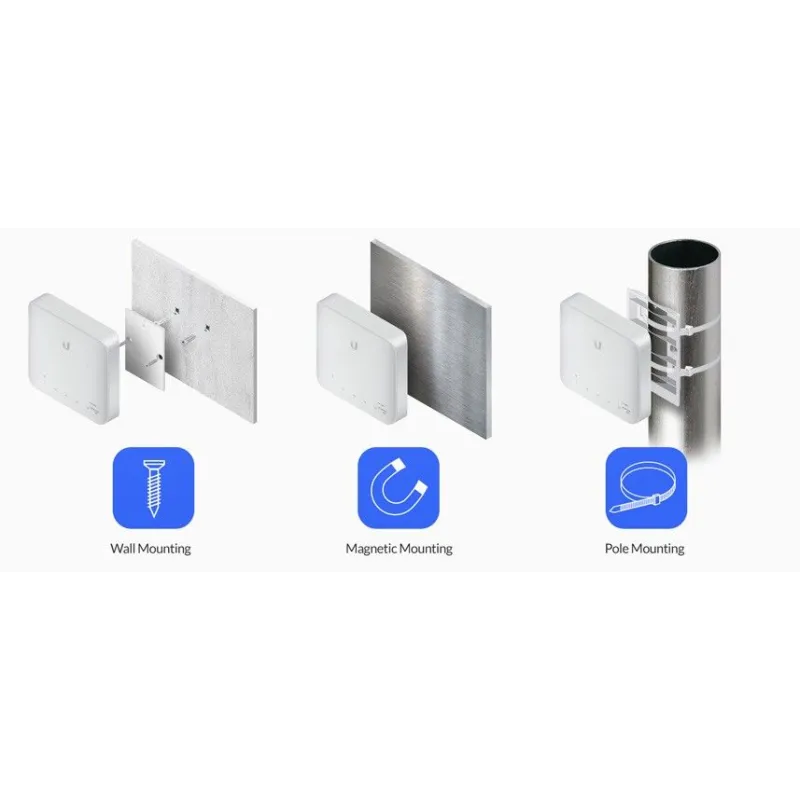

Compatible with Outdoor Installation
Supports PoE-In Power

Power Method (Port 1)

PoE Mode 1 : 802.3af/at (Pins 1, 2+; 3, 6-)1
PoE Mode 2 : 802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)2
PoE Mode 3 : 50V/60W PoE Adapter3

PoE Out (Ports 2-5)

802.3af (Pins 1, 2+; 3, 6-)

Max Power Consumption
(Excluding PoE Output)

5W

Max PoE Wattage Per Port

15.4W

Total PoE Power Budget

Powered by AF mode PSE: 8W
Powered by AT mode PSE: 20W
Powered by BT mode PSE: 46W
Powered by PoE Adapter: 46W (Enabled in Controller)

Voltage Range

802.3af: 44 - 57V
802.3at/bt: 50 - 57V

LEDs

System Status
RJ45 Data Ports PoE; Link/Speed/Activity

ESD/EMP Protection

± 16kV Air, ± 16kV Contact

Operating Temperature

46W PoE Output@ -40 to 55° C (-40 to 131° F)
25W PoE Output@ -40 to 65° C (-40 to 149° F)

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC
