| Product Specification |
|
Overview
|

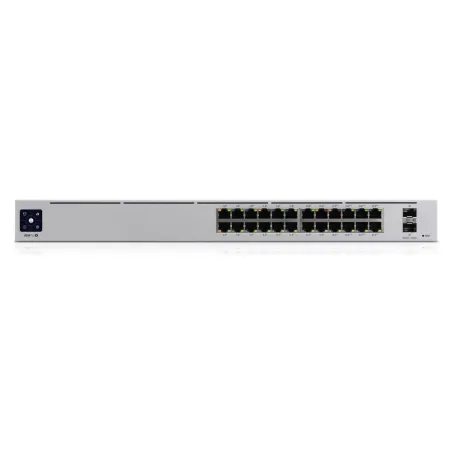

Ubiquiti Unifi Switch USW-Pro-24-POE Gen2 L3 Managed Gigabit POE Switch 24 Port ความเร็ว Gigabit, 2 Port SFP+ 10Gbps, จ่ายไฟ POE 802.3at/bt 24 Port 400W ควบคุมผ่าน Unifi Software
Layer 3 Feature รองรับการทำ Inter VLAN, Routing, Static Routing, DHCP Server
จ่ายไฟ POE มาตรฐาน 802.3at/bt 24 Port 400W
ควบคุมผ่าน Unifi Software Controller
|
|
Dimensions
|
442.4 x 285.4 x 43.7 mm
(17.42 x 11.24 x 1.72")
|
|
Weight
With Rackmount Brackets
|
4.30 kg (9.48 lb)
4.39 kg (9.68 lb)
|
|
Interfaces
Networking
Management
|
(24) 10/100/1000 RJ45 Ports
(2) 1G SFP Ethernet Ports
Ethernet In-Band
|
|
Power Method
Universal Input
USP RPS DC Input
|
100-240VAC/50-60 Hz
52VDC, 7.69A; 11.5VDC, 2.61A
|
|
Power Supply
|
AC/DC, Internal, 450W
|
|
Supported Voltage Range
|
100 to 240VAC
|
|
Max. Power Consumption (Excluding PoE Output)
|
50W
|
|
LEDs
System
RJ45 Data Ports
SFP Data Ports
|
Status
PoE; Speed/Link/Activity
Link/Activity
|
|
ESD/EMP Protection
|
Air: ± 16 kV, Contact: ± 12 kV
|
|
Shock and Vibration
|
ETSI300-019-1.4 Standard
|
|
Operating Temperature
|
-5 to 40° C (23 to 104° F)
|
|
Operating Humidity
|
10 to 90% Noncondensing
|
|
Certifications
|
CE, FCC, IC
|
|
PoE Interfaces
Ports 1-16
Ports 17-24
|
POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-)
60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
|
|
Max. PoE Wattage per Port by PSE
|
802.3at: 32W
802.3bt: 64W
|
|
Voltage Range 802.3af Mode
|
44-57V
|
|
Voltage Range 802.3at Mode
|
50-57V
|
|
25% PoE Load, 25° C Room Temperature
|
0.9 dBr
|
|
50% PoE Load, 25° C Room Temperature
|
7.3 dBr
|
|
100% PoE Load, 40° C
|
18.8 dBr
|
|
ประกัน
|
2 ปี
|
|
Scalable UniFi Network Controller
|
|
Management Capabilities
|
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.
|
|
Network Overview
|
From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network’s vitals and make on-the-fly adjustments as needed.
|
|
Deep Packet Inspection
|
Ubiquiti’s proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.
|
|
Detailed Analytics
|
The UniFi Network Controller provides configurable reportingand analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.
|
|
Multi-Site Management
|
A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi‑tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.
|
|
Switch Configuration
|
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1X control and RADIUS VLAN
• Debug terminal option for command-line interface
|
|
Switch Port Status
|
You can also view status information for each port:
• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting
|
|
Software Features
|
The UniFi Network Controller software offers the following features:
• Centralized configuration management (including configuration cloning)
• Auto-MDIX automatically adjusts as needed for straight through or crossover cable
• 802.1X (RADIUS) authentication and dynamic VLAN
|
|
|
|
