Product Specification
|
|
Overview
|

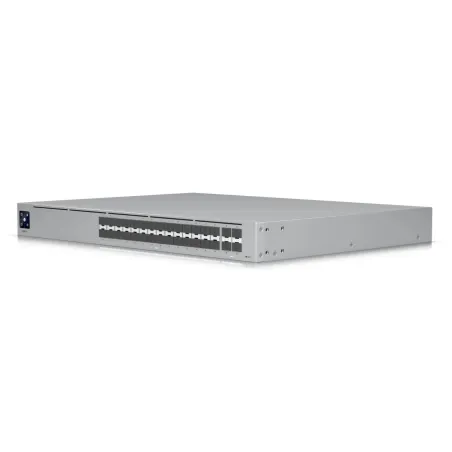

Ubiquiti Unifi Switch USW-Pro-Aggregation L3 Managed Switch 28 Port SFP+ ความเร็ว 1/10G, 4 Port SFP28 ความเร็ว 1/10/25G ควบคุมผ่าน Unifi Software Controller
SFP+ 28 Port ความเร็ว 1/10Gbps
SFP28 4 Port ความเร็ว 1/10/25Gbps
Layer 3 Feature รองรับการทำ Inter VLAN, Routing, Static Routing, DHCP Server
ควบคุมผ่าน Unifi Software Controller
|
Mechanical
|
|

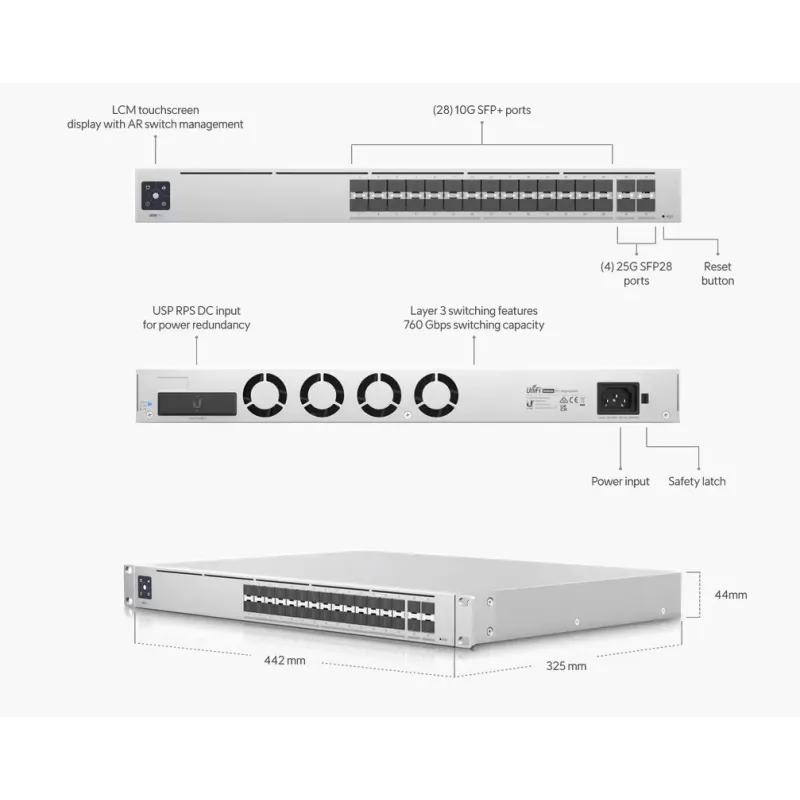

Dimensions
|
442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
|
|
Weight
|
Without mounting brackets: 4.6 kg (10.1 lb)With mounting brackets: 4.7 kg (10.4 lb)
|
|
Enclosure material
|
SGCC steel
|
Hardware
|
|
Management interface
|
Ethernet In-Band
|
|
Networking interface
|
(28) 1/10G SFP+ ports(4) 1/10/25G SFP28 ports**Don't support mixed speed at 25 Gbps mode. Once one of the ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. Supports mixed speed when all ports are at 1 or 10 Gbps.
|
|
Total non-blocking throughput
|
380 Gbps
|
|
Switching capacity
|
760 Gbps
|
|
Forwarding rate
|
565.44 Mpps
|
|
Power method
|
(1) Universal input, 100-240V AC, 2A Max., 50/60 Hz(1) USP RPS DC input, 11.5V DC, 8.7A
|
|
Power supply
|
AC/DC, internal, 100W
|
|
Supported voltage range
|
100-240V AC
|
|
Max. power consumption
|
100W
|
|
ESD/EMP protection
|
Air: ± 16kV, contact: ± 12kV
|
|
Services
|
SMB Layer 3 10/25 G Fiber switch
|
|
LCM display
|
(1) 1.3" LCM color touchscreen
|
|
Ambient operating temperature
|
-5 to 40° C (23 to 104° F)
|
|
Ambient operating humidity
|
10 to 90% noncondensing
|
|
Certifications
|
CE, FCC, IC
|
Switching Features
|
|
Layer 2 features
|
IGMP snoopingSTP / RSTP with priorities and port-level disablePort isolationStorm controlVoice VLANPort mirroringLACP port aggregationMulticast / broadcast rate limitingMAC address blockingFlow control802.1X controlJumbo framesProprietary loop protectionDHCP snooping / guardingEgress rate limitLLDP-MEDPort restricted by MACDevice isolation with ACLs
|
|
Layer 3 features
|
DHCP for locally-managed networksDHCP relayInter-VLAN routing between networks on same switchStatic routing between local networks
|
LEDs
|
|
System
|
Status
|
|
SFP28/SFP+
|
Link/activity
|
Application Requirements
|
|
UniFi Network
|
Version 6.1.25 and later
|
