Ubiquiti UniFi UAP-IW-HD Product Specification
|
|
Overview
|

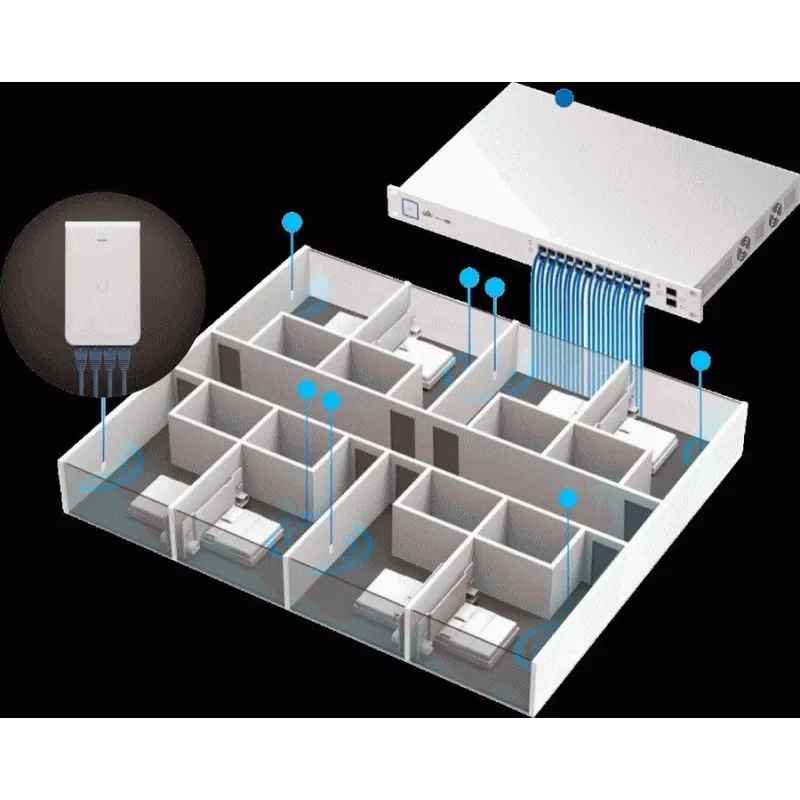

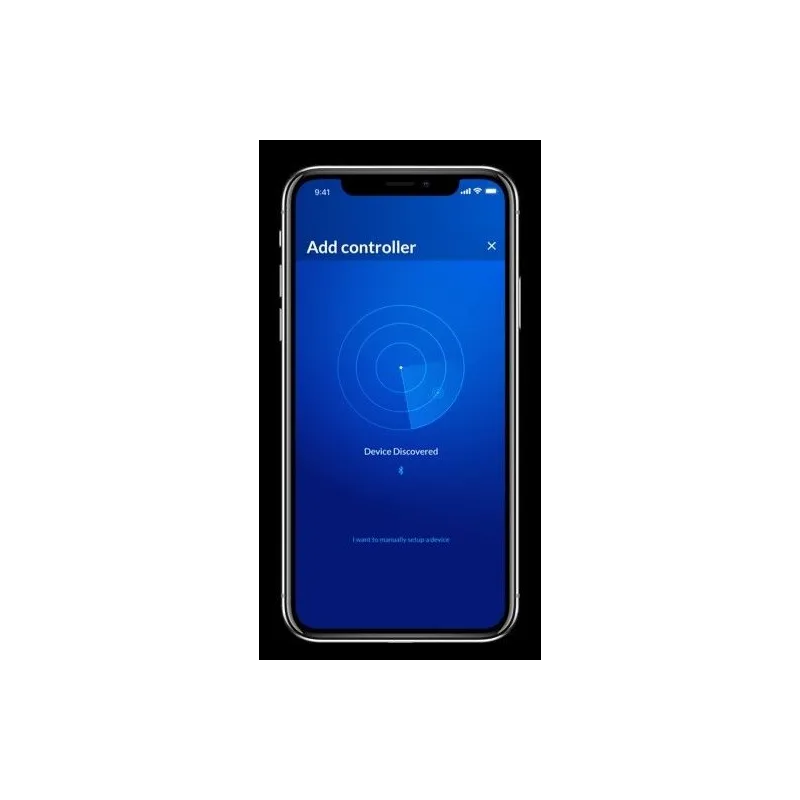

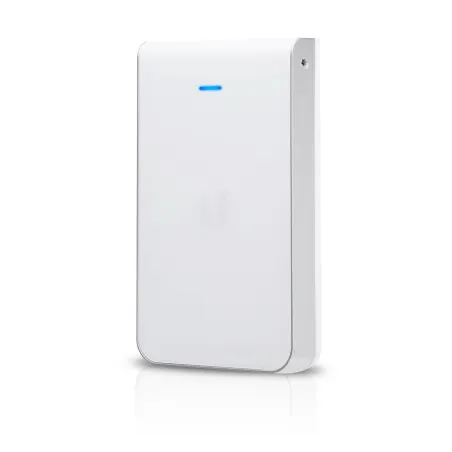

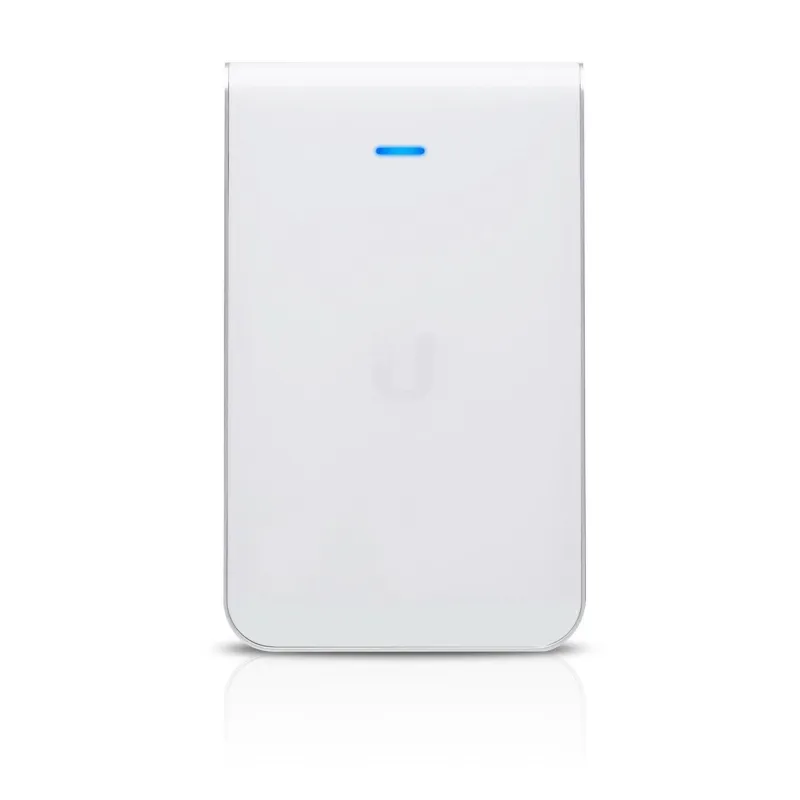

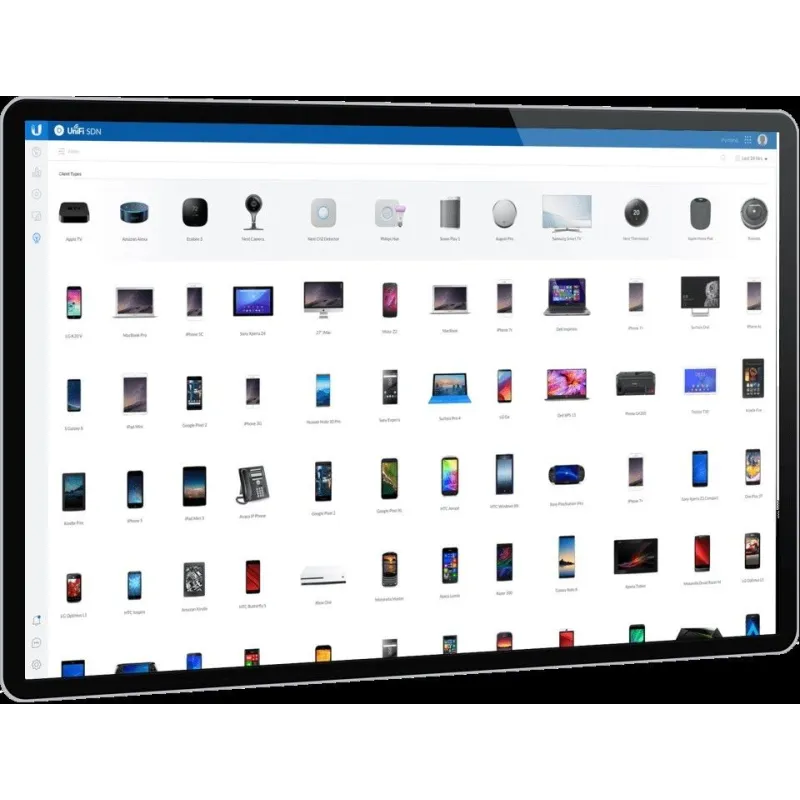

Ubiquiti UniFi UAP-IW-HD In-Wall Wireless Access Point แบบติดผนัง , มาตรฐาน AC MU-MIMO Wave 2 Dual-Band , ความเร็วสูงสุด 1.9Gbps, Lan 5 Port ความเร็ว Gigabit สำหรับติดตั้งในห้องพักควบคุมด้วย UniFi Controller Software
|
|
Dimensions
|
139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01")
|
|
Weight
|
210 g (7.41 oz)
|
|
Networking Interface
|

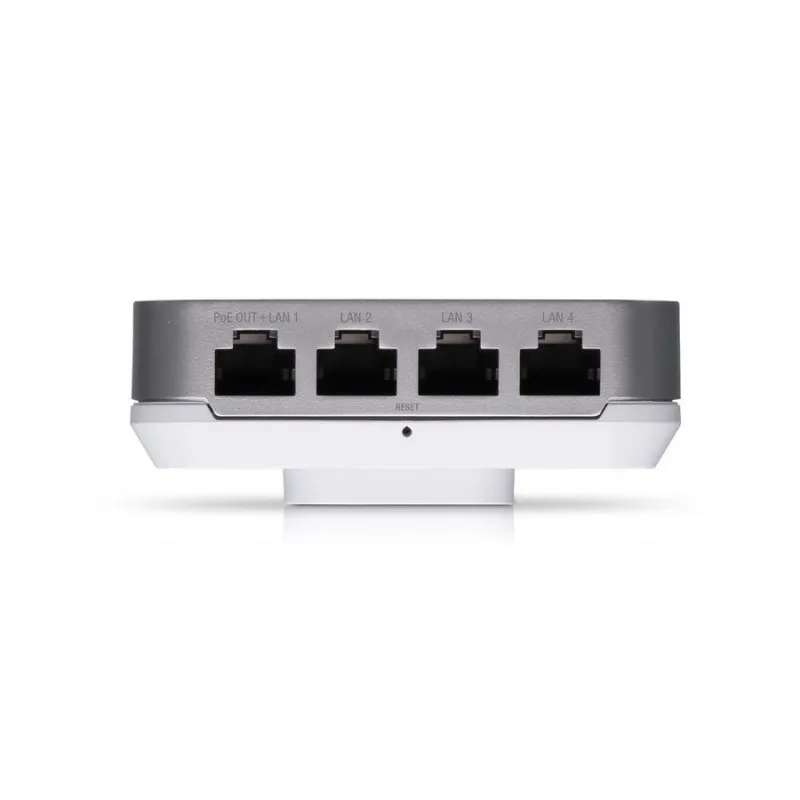

(5) 10/100/1000 Ethernet Ports
|
|
Buttons
|
Reset
|
|
Power Method
|
802.3af PoE
802.3at PoE+
|
|
Supported Voltage Range
|
44 to 57VDC
|
|
Power Supply
|
UniFi Switch (PoE)
|
|
PoE Out
|
48V Passthrough (Pins +1, 2; -3, 6)
|
|
Power Save
|
Supported
|
|
Beamforming
|
Supported
|
|
Maximum Power Consumption with PoE Passthrough
|
11W
23W*
|
|
TX Power
|
2.4 GHz: 23 dBm
5 GHz: 26 dBm
|
|
Antennas
Dual-Band
Single-Band
|
(2) Single-Port, Single-Polarity Dual-Band Antennas, 2.4 GHz: 1.8 dBi Each, 5 GHz: 3.4 dBi Each
(2) Single-Port, Dual-Polarity, Single-Band Antennas, 5 GHz: 6 dBi Each
|
|
Wi-Fi Standards
|
802.11 a/b/g/n/r/k/v/ac/ac-wave2
|
|
Wireless Security
|
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w/PMF
|
|
BSSID
|
Up to 8 per Radio
|
|
Mounting
|

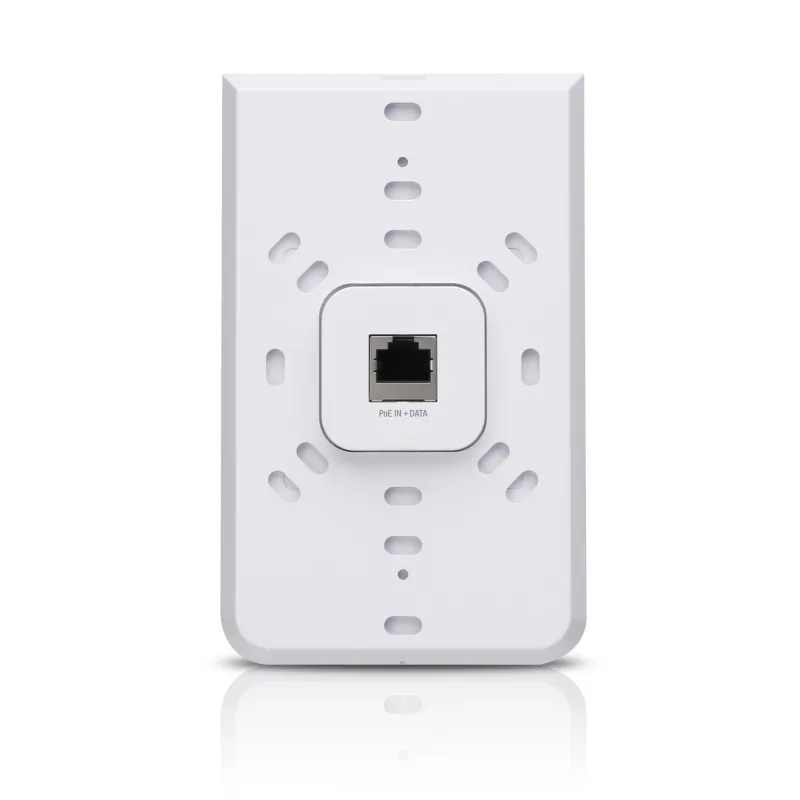

1-Gang Electrical Wall Box (Not Included)
|
|
Operating Temperature
|
-10 to 60? C (14 to 140? F)
|
|
Operating Humidity
|
5 to 95% Noncondensing
|
|
Certifications
|
CE, FCC, IC
|
|
Advanced Traffic Management
|
|
|
VLAN
|
802.1Q
|
|
Advanced QoS
|
Per-User Rate Limiting
|
|
Guest Traffic Isolation
|
Supported
|
|
WMM
|
Voice, Video, Best Effort, and Background
|
|
Concurrent Clients
|
200+
|
|
Supported Data Rates (Mbps)
|
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
|
|
รับประกัน
|
2 ปี
|
|
|
|
