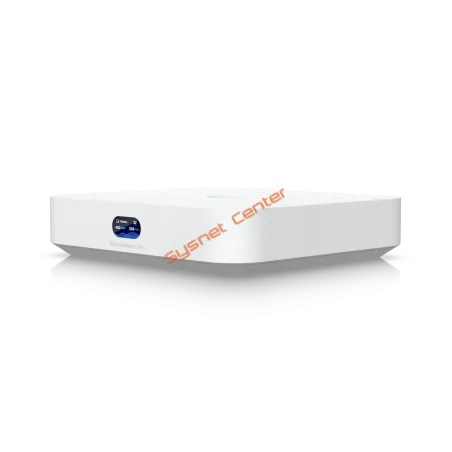

UCG-Ultra Cloud Gateway 1 WAN 2.5GbE รองรับ 30 Unifi Device, 300 Clients

Product Specification

Overview

UCG-Ultra Cloud Gateway Ubiquiti Unifi Ultra Compact Cloud Gateway รองรับการ Managed UniFi 30+ device

รองรับจำนวน Client ได้ 300+

1 Gbps IPS routing, และ Port WAN ความเร็ว Multi-Gig รองรับ Loadbalance/ Failover

Mechanical

Dimensions

141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")

Weight

520 g (1.1 lb)

Enclosure materials

Polycarbonate

Hardware

Processor

Quad-core ARM® Cortex®-A53 at 1.5 GHz

Memory information

3 GB DDR3L

On-board storage

16 GB eMMC

Management interface

EthernetBluetooth

Networking interface

(1) 1/2.5GbE RJ45 WAN port
(1) GbE RJ45 LAN port

LCM display

0.96" status display

Power method

USB type C (5V/3A)

Supported voltage range

100-240V

Max. power consumption

6.2W

Operating temperature

-10 to 40° C (14 to 104° F)

Operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Gateway Features

Performance

Redundant WAN with failover and load balancingWiFi QoS with UniFi APsApplication, domain, and country-based QoSApplication and device type identificationAdditional internet failover with LTE BackupInternet quality and outage reporting

Next-generation security

Application-aware firewall rulesSignature-based IPS/IDS threat detectionContent, country, domain, and ad filteringVLAN/subnet-based traffic segmentationFull stateful firewall

Advanced networking

License-free SD-WANWireGuard, L2TP and OpenVPN serverOpenVPN clientOpenVPN and IPsec site-to-site VPNOne-click Teleport and Identity VPNPolicy-based WAN and VPN routingDHCP relayCustomizable DHCP serverIGMP proxyIPv6 ISP support

Application Requirements

UniFi Network

UniFi iOS™: Version 10.12.0 and laterUniFi Android™: Version 10.11.2 and later

รับประกัน

1 ปี
